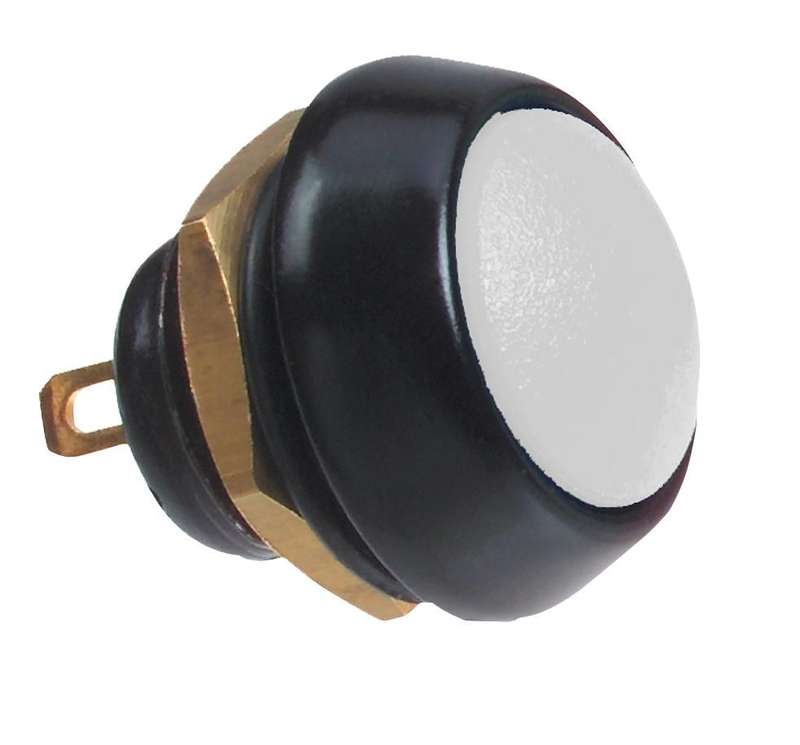

Itw Switches (59-114) Industrial Pushbutton Switch, 59, 13.6 mm

Industrial Pushbutton Switch, 59, 13.6 mm, SPST-NO-DB, Momentary, Round, WhiteProduct InformationPushbutton Switch Type: IndustrialProduct Range: 59Panel Cutout Diameter: 13.6mmContact Voltage AC Nom: 125VContact Configuration: SPST-NO-DBContact Voltage DC Nom: 50VSwitch Operation: MomentaryPushbutton Actuator Style: RoundContact Current Max: 400mAActuator / Cap Colour: WhiteContact Current AC Max: 400mAContact Voltage VAC: 32VContact Current DC Max: 100mAContact Voltage VDC: 50VIP Rating: IP67Switch Mounting: Panel MountSwitch Terminals: Solder LugIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewThe 59 series switches from ITW are miniature, momentary action sealedpushbutton switches. These series is available with square or round bezelversions with or without LED status illumination. A locknut is supplied witheach switch. The body material is provided of either a non spark zinc alloy or ahard wearing moulded PBT therefore making this switch suitable for use in mostapplications. The small size, robustness and panel sealing make this switchideal in harsh environments. The non-illuminated range includes a choice of 7button colours with solder terminal connection. An illuminated version isavailable in the round bezel versions with a choice of 3 button colours and 2high brightness LED colours.Wide temperature range up to 125°CPanel sealed to IP67Overboot for protection against icingCurrent rating of 400mA at 32VACOperating force of 3N13.6mm diameter panel cut outApplicationsIndustrial, Power Management, Automation & Process Control
