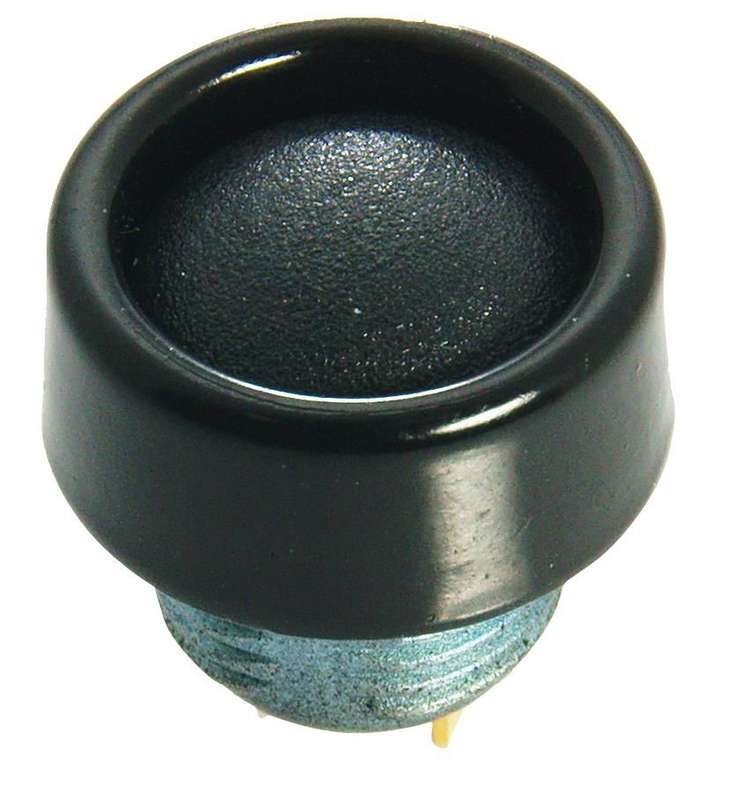

Itw Switches (59-311) Industrial Pushbutton Switch, 59, 13.6 mm

Industrial Pushbutton Switch, 59, 13.6 mm, SPST-NO-DB, Momentary, Round, BlackProduct InformationPushbutton Switch Type: IndustrialProduct Range: 59Panel Cutout Diameter: 13.6mmContact Voltage AC Nom: 32VContact Configuration: SPST-NO-DBContact Voltage DC Nom: 50VSwitch Operation: MomentaryPushbutton Actuator Style: RoundContact Current Max: 400mAActuator / Cap Colour: BlackContact Current AC Max: 400mAContact Voltage VAC: 32VContact Current DC Max: 100mAContact Voltage VDC: 50VIP Rating: IP67Switch Mounting: Panel MountSwitch Terminals: Solder LugIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewThe 59-311 is a single-pole single-throw (SPST) miniature metal panel sealedPushbutton Switch with solder terminal, high round bezel and a black button. The59 series rugged panel sealed pushbutton is made of a special high creepstrength non-spark zinc alloy suitable for use in mining or other potentiallyexplosive atmospheres where dust and moisture are problematic.Momentary actionNon-spark material500,000 Life cycles at max powerImpact-resistantGold-plated contactsWide temperature range from -55 to +125°CIP67 Protection rating (panel sealed)ApplicationsCommunications & Networking, Sensing & Instrumentation, Automation & ProcessControl
