J5 JCD543 t-C docking statio

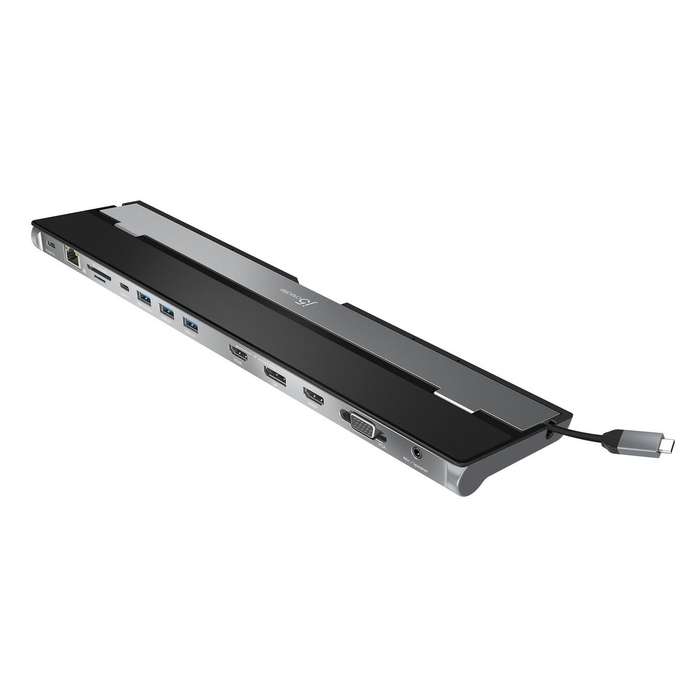

This triple display docking station turns your Mac or Windows laptop into a full workstation with a DisplayPort output, two HDMI outputs, and a VGA output, with resolution support up to 4K (3840 x 2160) on two displays and 1080p on the other one
N.B HDMI through DisplayPort Alt mode supports 4K @ 30 Hz (PLEASE NOTE: If your laptop or device does not support this DisplayPort Alt mode then only one HDMI port will work, please check your device before buying this item)
You can also use your laptop screen for four displays in total, making it easy to access multiple applications at once. With 100W Power Delivery, three USB 3.0 ports, and a USB-C port, this docking station is perfect for your MacBook , Dell XPS , or other USB-C laptop requiring additional ports.
This USB 3.0 docking station is also equipped with a RJ45 Gigabit Ethernet port, memory card reader/writer, and combo audio jack for maximum productivity. The elevated design assists with heat dissipation and, with its double-sided cable storage compartment, ensures an easy connection regardless of your USB-C port's location.
All 13 ports are combined into one slim docking station, so you'll have all the connections you need to stay productive!
Features:
- TRIPLE DISPLAY FLEXIBILITY & ADAPTABILITY
- Create a triple-monitor setup with 4K HDMI , 1080p VGA, and 4K DisplayPort outputs and together
with your laptop display, you can have a maximum of 4 displays. Available display combinations:
- HDMI + VGA + DisplayPort
- HDMI + VGA + HDMI
USB-C 100W POWER DELIVERY
With the attached USB-C cable, the dock will power and charge power-hungry laptops, with up to 100W
Power Delivery and power your connected peripherals when it's used with a USB-C power adapter.
MULTIPLE CONNECTIONS
To support all of your USB peripherals, the dock provides a total of four USB 3.0 ports (1 USB-C and 3 USB Type-A ports), a Gigabit Ethernet port, SD /microSD card slots and a combo audio jack.
BC 1.2 FAST CHARGING
One of the USB 3.0 Type-A ports is a fast-charge port, so you can charge your mobile devices faster than you can from a standard USB port.
CUTTING-EDGE DESIGN
Advanced heat-eliminating design is the perfect solution to expand your laptop into a full-sized workstation
without the worry of overheating and with the double-sided cable storage compartment, you can place the
cable any way you like.
Specifications:
Hardware
- Audio Supported: Yes
- Host Connector: USB-C Male
- Network Interface: RJ45 (Gigabit Ethernet)
- Ports:
- 2 - USB 3.0 Type-A
- 1 - USB 3.0 Type-A fast charge
- 1 - USB-C 3.1 Gen 1
- 1 - USB-C Power Delivery 3.0
- 2 - 4K HDMI
- 1 - DisplayPort
- 1 - VGA
- 1 - SD & microSD memory card reader/writer
- 1 - RJ45 Gigabit Ethernet
- 1 - 3.5 mm combo audio jack
- Power Source: Bus-powered or Self-powered
- Video Output:
- 2 - HDMI Female
- 1 - DisplayPort Female
- 1 - VGA Female
- Warranty:
- 2 Year Limited
Performance
- Audio Channel: 2.1 via HDMI /DisplayPort /3.5 mm Aux
- Compatible Networks:10/100/1000 Mbps
- Displays Supported: 3 (HDMI , VGA and DisplayPort or HDMI )
- Max Data Transfer Rate: 5 Gbps
- Max Display Refresh Rate:
- HDMI /DisplayPort 4K: 30 Hz
- HDMI /DisplayPort 1080p: 60 Hz
- VGA: 60 Hz
- Max Display Resolution:
- HDMI /DisplayPort : 3840 x 2160
- VGA: 1920 x 1080
Power
- Input Current: 5A
- Input Voltage: 20V
- Output Current: 5A
- Output Voltage: 20V
- Power Consumption: 900 mA
- Power DeliveryUp to 100W via USB-C
Physical Specifications
- Cable Length:1.48 ft (45 cm)
- Colour: Silver, Black
- Enclosure Type: Aluminum
- Operating Humidity: < 85% non-condensing
- Operating Temperature: 32 to 118 F (0 to 48 C)
- Product Depth:13.78 in. (350 mm)
- Product Height: 0.92 in. (23.37 mm)
- Product Weight: 10.58 oz (300g)
- Product Width: 3.25 in. (82.5 mm)
- Storage Humidity: < 85% non-condensing
- Storage Temperature:14 to 149 F (-10 to 65 C)
What's in the box
1 x JCD543 USB-C Triple Display Docking Station
1 x Quick Installation Guide
