J5 JCD552 t-C docking statio
ABOUT THIS PRODUCT:

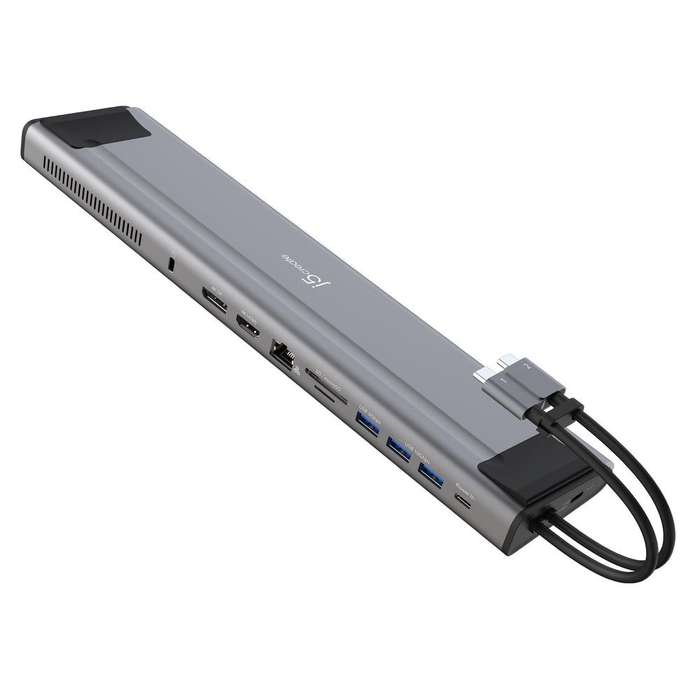

Increase your productivity with the M.2 NVMe® USB-C® Gen 2 Docking Station, transforming your Thunderbolt 3 or USB-C® compatible laptop into a dual 4K workstation with up to 10 Gbps. This high-performance dock features a M.2 NVMe®/SATA PCIe® SSD Slot to expand your internal storage space, three SuperSpeed USB 10 Gbps ports (one USB-C® and two USB Type-A), a Gigabit Ethernet port, SD & microSD memory card reader/writer, and a USB Type-A 5 Gbps port.
NB: DisplayPort v1.4 required on graphics card, cable, and video source to support 4K @ 60 Hz resolution (PLEASE NOTE: If your laptop or device does not support this DisplayPort mode then the 4K port will not work for this function, please check your device before buying this item)
This USB-C® Gen 2 docking station supports 100W Power Delivery pass-through to power and charge your laptop, while powering all connected devices. With the built-in PCIe® M.2 SSD enclosure and extra storage you can access through an SD and microSD card, this is a must-have for creative professionals using a Mac®.
FEATURES:
DUAL 4K 60 HZ DISPLAYS*
Supports extended dual 4K displays (HDMI & DisplayPort) on Intel® MacBook Pro® and MacBook Air®
Supports single display via HDMI on other USB-C® compatible laptops connected via one USB-C® port
HIGH-PERFORMANCE STORAGE

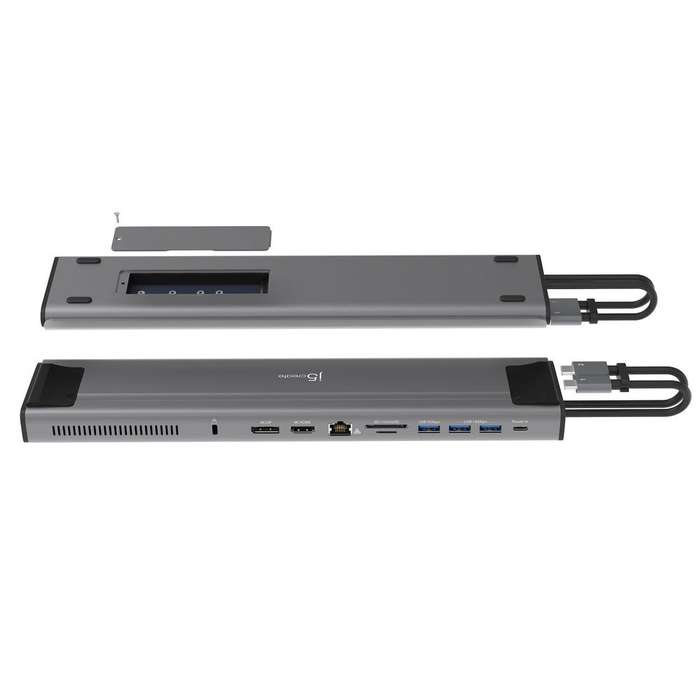

Built-in M.2 NVMe®/SATA PCIe® SSD Slot (Supports M.2 NVMe® or SATA M key 2230/2242/2260/2280) to expand storage space, convenient SD & microSD access, and one USB-C® 10 Gbps port to connect an external hard drive
HIGH-SPEED PERFORMANCE
Provides three SuperSpeed USB 10 Gbps ports (1 USB-C® and 2 USB Type-A) to connect peripherals
100W POWER DELIVERY PASS-THROUGH
Charge your laptop and power connected peripherals when used with a USB-C® power adapter
DETACHABLE MAGNETIC CONNECTORS
The flexible design gives you the ability to connect to a variety of compatible devices
ANTI-THEFT PROTECTION
Security slot to prevent equipment theft in a wide range of business or institutional environments
SPECIFICATIONS
System Requirements:
DisplayPort v1.4 required on graphics card, cable, and video source to support 4K @ 60 Hz resolution
Available USB-C® port(s) that supports DisplayPort Alt Mode and USB Power Delivery 2.0 or 3.0
*Please refer to the manufacturer of your computer for more information about your device
Hardware:
Warranty: 2 Year Limited
Host Connector: 2 - USB-C® Male
Video Output:
- 1 - HDMI Female
- 1 - DisplayPort Female
Power Source: Bus-powered
Network Interface: RJ45 (Gigabit Ethernet)
Audio Supported: Yes
Ports:
- 1 - M.2 NVMe® /SATA Slot (2230,2242,2260,2280)
- 1 - USB-C® 3.2 Gen 2
- 1 - USB-C® Power Delivery 3.0
- 2 - USB Type-A 3.2 Gen 2
- 1 - USB Type-A 3.2 Gen 1
- 1 - 4K HDMI
- 1 - 4K DisplayPort
- 1 - SD & microSD 3.0 memory card reader/writer
- 1 - RJ45 Gigabit Ethernet
- 1 - Security Lock Slot
Performance:
Maximum Display Resolution: 3840 x 2160
Maximum Display Refresh Rate: 60
Maximum Data Transfer Rate:
- 10 Gbps
- M.2 slot - Write: 900 MB/s, Read: 925 MB/s
Maximum Displays Supported: 2
Compatible Networks: 10/100/1000 Mbps
Audio Channel: 2.1 via HDMI / 3.5 mm Aux
Power:
Power Delivery: Up to 100W via USB-C®
Power Consumption: ? 600 mA
Input Current: 5A
Input Voltage: 20V
Output Current: 5A
Output Voltage: 20V
Physical Specifications:
Color: Grey & Black
Enclosure Type: Aluminum
Cable Length: 0.6 in. (15 cm)
Product Height: 1.02 in. (26 mm)
Product Width: 3.14 in. (80 mm)
Product Depth: 12.5 in. (318 mm)
Product Weight: 0.83 lbs. (378g)
Storage Temperature: 14 to 149°F (-10 to 65°C)
Storage Humidity: < 85% non-condensing
Operating Temperature: 32 to 118°F (0 to 48°C)
Operating Humidity: < 85% non-condensing
Special Notes
To ensure optimal capability and compatibility for laptops with a single USB-C® port, the 2nd USB-C® host cable must be connected to the 10 Gbps USB-C® Gen 2 port on the docking station.
A 4K-capable display is required for obtaining the 3840 x 2160 resolution
If connected to a USB 3.0 (5 Gbps)/USB 2.0 port or if using a USB 3.0 (5 Gbps)/USB 2.0, performance may be limited.
The dock can connect to a USB-C® port that doesn't support Power Delivery, but it will not pass power through the connected device
M1 MacBook Pro® and MacBook Air® only supports up to 1 external display. This single display limitation does not affect Intel® Mac®
Two USB-C® connections provide higher M.2 transfer speeds compared to a single USB-C® connection
We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the USB hub at a time. If you are using a high-powered USB device, attach a USB-C power adapter to the power delivery port for optimal performance
What's in the box
1 JCD552 M.2 NVMe® USB-C® Gen 2 Docking Station
1 - Quick Installation Guide (QIG)
