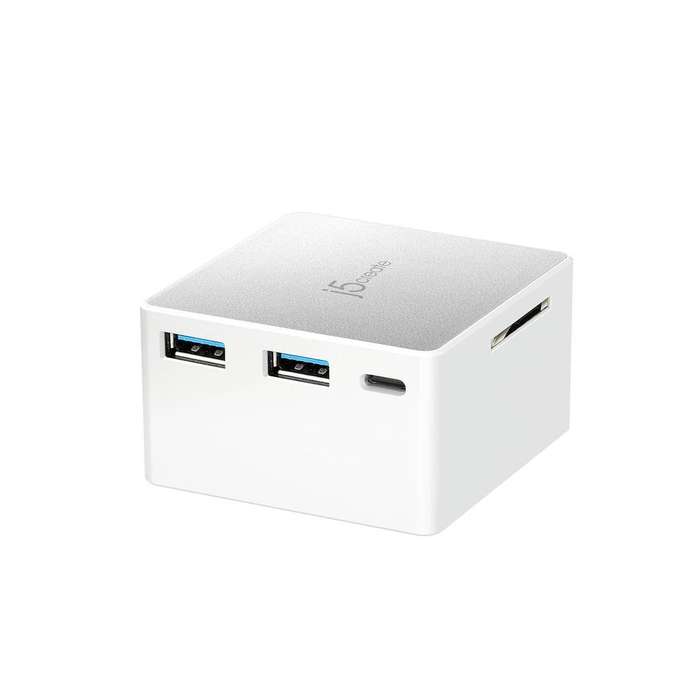

J5 JCDP385 tC power minidock
ABOUT THIS PRODUCT
USB Type-C portable dock with built-in power supply 45W
Supports HDMI output resolution 4K @ 30 Hz
Memory card compatible
Supports USB Type-C upstream charging, power delivery 2.0 (maximum 35W)
USB 3.1 Gen-1 data transfer up to 5 Gbps
2x USB ports support BC1.2 (max 1.5A) in AC mode
N.B. SYSTEM REQUIREMENTS:
Available DisplayPort Alt Mode over USB Type-C port
USB PD 2.0 compatible for upstream charging
N.B. SPECIAL NOTES
Designed for laptops that require 35W or less power charging
This USB Type-C Power Dock is an accessory that works with Windows®, macOS® X and Android OS, featuring a USB Hub that offers Power Delivery charging, HDMI video output, memory card reader and 2x USB Type-A ports. It also offers USB 3.1 Gen-1 SuperSpeed data link to your USB-C laptop for on-the-go convenience. The USB-C Hub with 45W power adapter has an embedded Power Delivery 2.0 charger, which can supply up to 35W PD to charge a USB-C PD charging device.

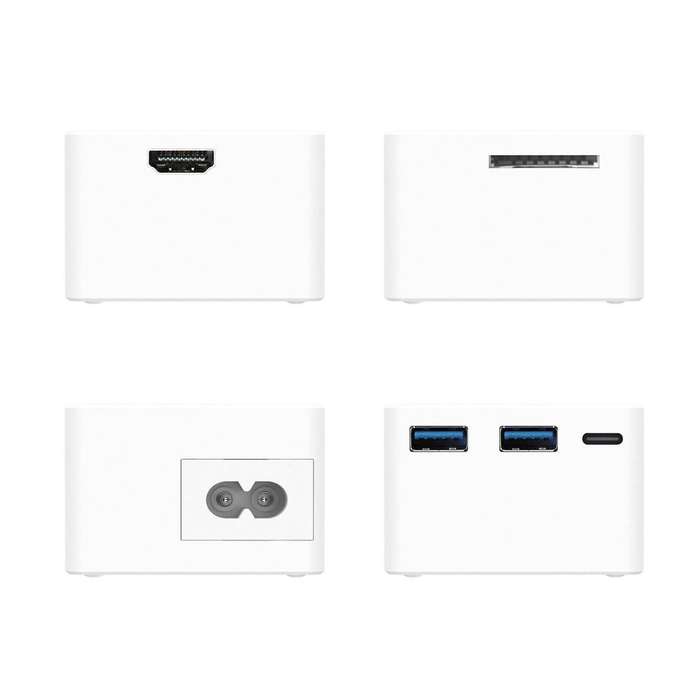

USB Type-C 3.1 Powered Mini Docking station gives you the flexibility of having 5 devices in 1:
AC Adapter
AC USB Wall Charger
USB 3.1 Gen1 Hub
HDMI port
USB to Memory Card Reader
SPECIFICATIONS:
Functions:
HDMI output:
HDMI 1.4 Resolution:
1080P @ 60 Hz or 4K x 2K @ 30 Hz
USB Type-C (Gen1):
Compliant with USB 3.1 specifications Gen 1 (up to 5 Gbps)
Supports USB Type-C upstream charging, Power Delivery 2.0 maximum 35W
Memory card reader: Supports memory capacity up to 2 TB
USB Type-A Port-1 & Port-2 USB 3.1 (Gen1):
USB 2.0 & USB 3.1 Gen1 (up to 5 Gbps) for data transfer
USB port supports BC1.2 (max 1.5A) in AC mode; 0.5A in Hub mode
Input AC Power: 100/240V AC
Physical Specifications:
Case Material: ABS
Color: White
Dimensions:
Main Body:
61.5 (W) x 40 (H) x 60 (D) mm
Cable Length:
30 cm (USB Type-C to USB Type-C cable)
5 in./150 cm (Power Cable)
Weight: Approximately: 139g
Environmental:
Storage Temperature: -20-65°C
Storage Humidity: 5-90% RH. Non-condensing
Operation Temperature: 0-35°C
Operation Humidity: 20-85% RH. Non-condensing
What's in the box
1 x USB Type-C 3.1 Powered Mini Docking Station
1 x USB Type-C to USB Type-C cable (30 cm)
1 x 5 ft / 150 cm Detachable Power Cord
