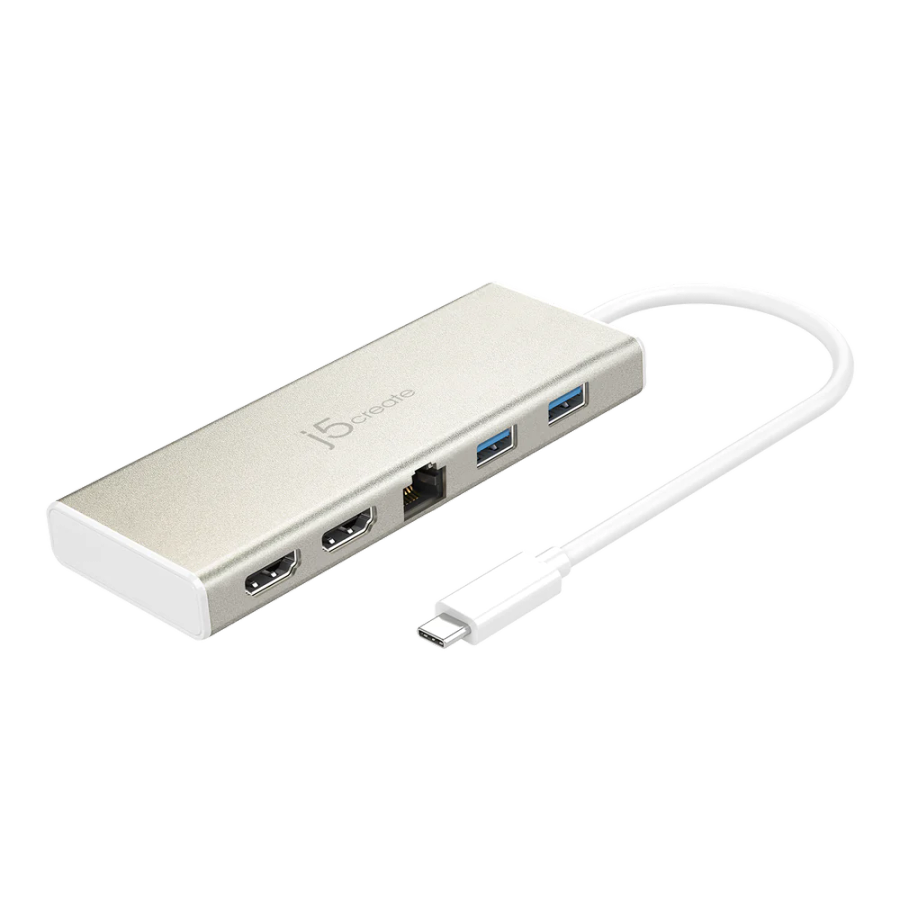

J5create JCD381USB Type-C Dual HDMI Mini Dock-Ethernet/ USB 3.1 HUB / PD2.0

Discover the Amazing J5create JCD381USB Type-C Dual HDMI Mini Dock-Ethernet/ USB 3.1 HUB / PD2.0

• Specifications

  • System Requirements

    • Windows® 10 or later
      macOS® 10.14 or later
    • Available USB-C® port that supports USB Power Delivery 2.0 or 3.0. (USB 3.0 is recommended)
      Please refer to the manufacturer of your hardware for more information on your device.

    Special Notes

    • The adapter can connect to a USB-C® port that doesn't support Power Delivery but it will not pass power through the connected device
    • A 4K-capable display is required for obtaining the 3840 x 2160 resolution
    • One of the HDMI ports can output resolutions up to 4K, while the other can output resolutions up to 1080p or 2K (2048 x 1152) when both are in use.
    • If you are using a high-powered USB device, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. When using the USB-C® power adapter, the multi-adapter powers both the adapter (with attached peripherals) and your laptop.

    Hardware

    • Warranty: 2-Year Limited
    • Host Connector: 1 - USB-C Male
    • Video Output: 2 - HDMI Female
    • Power Source: Bus-powered or self-powered
    • Network Interface: Yes
    • Audio Supported: Yes
    • Ports: 1 - USB-C® Power Delivery 2.0, 2 - USB Type-A 3.0, 1 - RJ45 Gigabit Ethernet, 1 - 4K HDMI, 1 - HDMI

    Performance

    • Maximum Display Resolution: Dual Displays - 3840 x 2160 and 2048 x 1152 / 1920 x 1080, Single Display - 3840 x 2160
    • Maximum Display Refresh Rate: 4K @ 30 Hz, 2K / 1080p @ 60 Hz
    • Maximum Data Transfer Rate: 5 Gbps
    • Displays Supported: 2
    • Compatible Networks: 10/100/1000 Mbps
    • Audio Channel: HDMI 2.1

    Power

    • Power Delivery: Up to 60W via USB-C®
    • Power Consumption: 450mA
    • Input Current: Up to 3A
    • Input Voltage: Up to 20V
    • Output Current: Up to 3A
    • Output Voltage: Up to 20V

    Physical Specifications

    • Color: Champagne Metallic
    • Enclosure Type: Aluminum
    • Cable Length: 7.8 in. (198.12mm)
    • Product Height: 2.1 In. (54 mm)
    • Product Width: 5.1 In. (130 mm)
    • Product Depth: 0.6 In. (15 mm)
    • Product Weight: 4.00 oz (113.5 g)
    • Storage Temperature: 14 to 140°F (-10 to 65°C)
    • Storage Humidity:
    • Operating Temperature: 32 to 98°F (0 to
