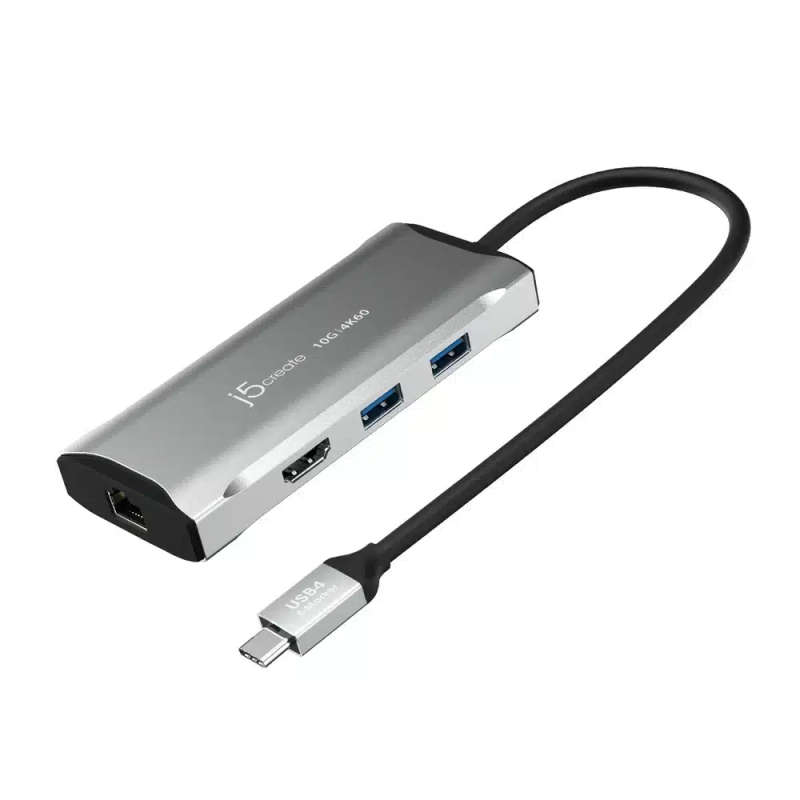

J5create JCD392 4K60 Elite USB-C 10Gbps Travel Dock

Unleash the Power of Connectivity with J5create JCD392 4K60 Elite USB-C 10Gbps Travel Dock

• Specifications

  • System Requirements
    • Available USB-C port that supports DisplayPort alternate mode and USB Power Delivery 2.0 or 3.0
    • The host device must support DisplayPort 1.4 to achieve 4K resolution at 60 Hz.
  • Hardware
    • Warranty: 2 Year Limited
    • Host Connector: 1 - USB-C Male
    • Video Output: 1 - HDMI Female
    • Power Source: Bus-powered or self-powered
    • Network Interface: RJ45 (Gigabit Ethernet)
    • Audio Supported: Yes
    • Ports:
      • 1 - USB-C SuperSpeed 10Gbps with Power Delivery 3.0
      • 2 - USB Type-A SuperSpeed 10Gbps
      • 1 - 4K HDMI
      • 1 - RJ45 Gigabit Ethernet
  • Performance
    • Maximum Display Resolution: 3840 x 2160
    • Maximum Display Refresh Rate: 3840 x 2160 @ 60 Hz
    • Maximum Data Transfer Rate: 10Gbps
    • Displays Supported: 1
    • Compatible Networks: 10/100/1000
    • Audio Channel: 2.1 via HDMI
  • Power
    • Power Delivery: Up to 100W via USB-C
    • Power Consumption: 400 mA
    • Input Current: Up to 5A
    • Input Voltage: Up to 20V
    • Output Current: Up to 4.5A
    • Output Voltage: Up to 20V
  • Physical Specifications
    • Color: Space Grey
    • Enclosure Type: Aluminum
    • Cable Length: 5.9 in. (150 mm)
    • Product Height: 0.62 in. (16 mm)
    • Product Width: 4.33 in. (110 mm)
    • Product Depth: 1.85 in. (47 mm)
    • Product Weight: 3.06 oz (87g)
    • Storage Temperature: 0 to 155°F (-17 to 68°C)
    • Storage Humidity:
    • Operating Temperature: 30 to 116°F (-1 to 41°C)
    • Operating Humidity:
  • Special Notes
    • A 4K-capable display is required for obtaining the 3840 x 2160 resolution
    • If connected to a USB 2.0 host port, performance may be limited
    • If connected to a DisplayPort 1.2 device, performance will be limited to 3840 x 2160 at 30 Hz
    • The adapter can connect to a USB-C port that doesn't support Power Delivery but will not pass
