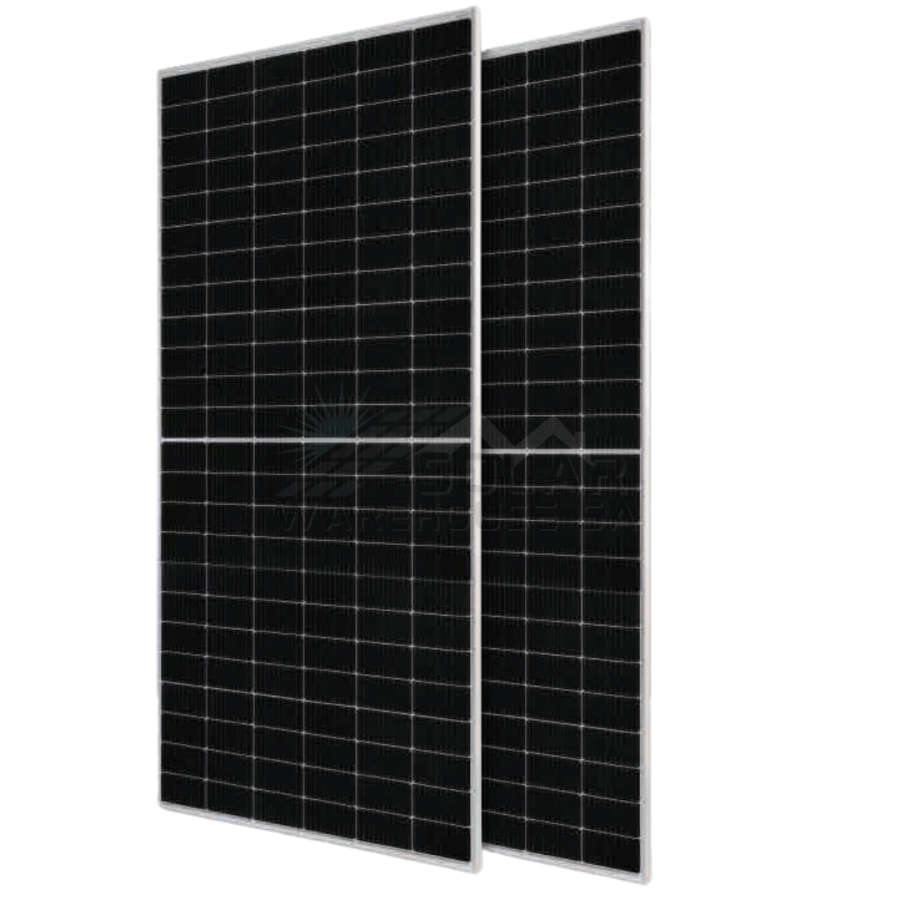

The JA Solar 550W JAM72S30-550/MR is a highly efficient and versatile solar module designed for a wide range of applications. This MBB half-cell module leverages PERC technology to deliver higher power output and improved temperature-dependent performance. It is ideal for residential, commercial, and industrial solar installations, offering enhanced tolerance for mechanical loading and reduced shading effects, making it a reliable and efficient choice for solar energy systems.
Key features
- High power output: The module offers a rated maximum power output of 550W, delivering superior energy generation for various applications.
- Temperature performance: The half-cell configuration ensures better temperature-dependent performance, optimising energy production even in challenging conditions.
- Reduced shading effect: The module's design minimises shading impact, enhancing overall efficiency and energy yield.
- Hot spot risk reduction: The module is engineered to lower the risk of hot spots, enhancing safety and durability.
- Mechanical loading tolerance: With enhanced tolerance for mechanical loading, the module is resilient to environmental stresses, ensuring long-term reliability.
- Multi-Busbar (MBB) technology: The MBB technology improves light absorption and current collection, boosting overall module efficiency.
- PERC cells: The module utilises Passivated Emitter and Rear Contact (PERC) cells for improved light capture and electrical performance.
JA Solar is a leading manufacturer of high-performance solar products, and the JAM72S30-550/MR module exemplifies their commitment to quality and innovation. The module's half-cell configuration and MBB technology demonstrate JA Solar's focus on delivering efficient, reliable, and durable solar solutions for various applications.

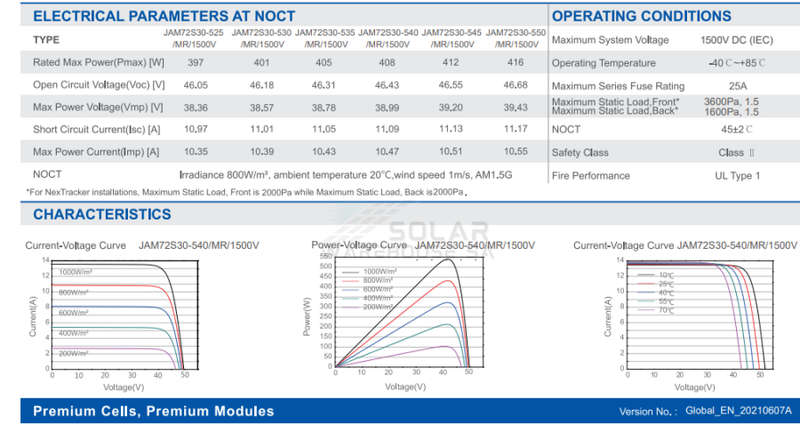

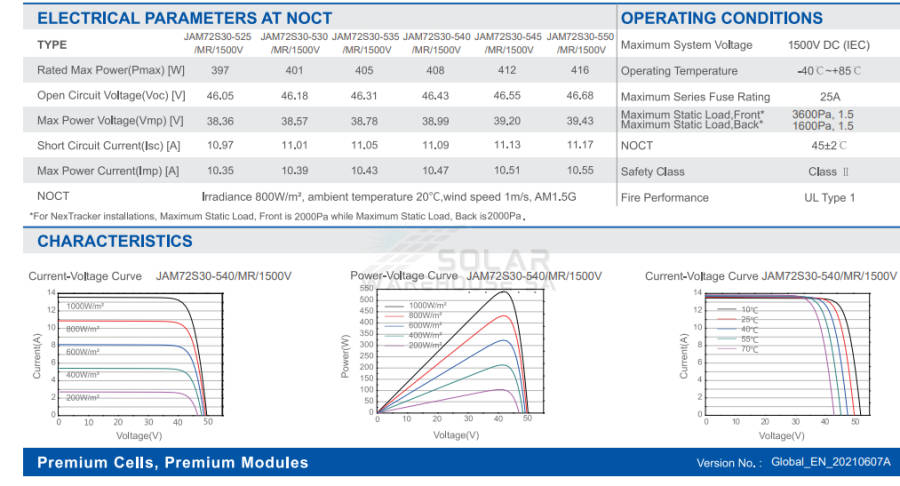

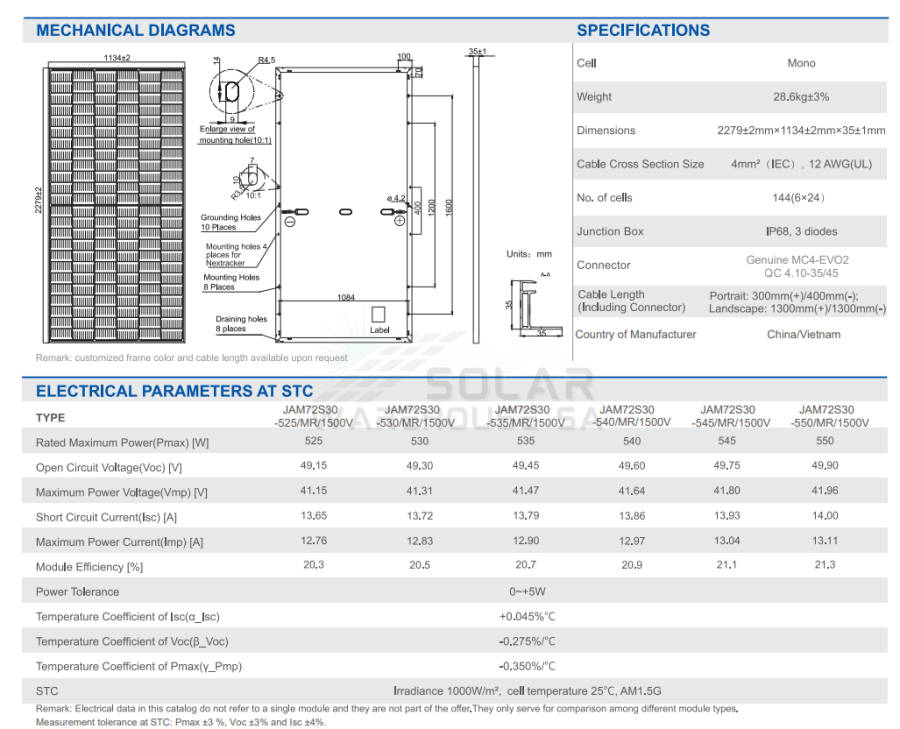

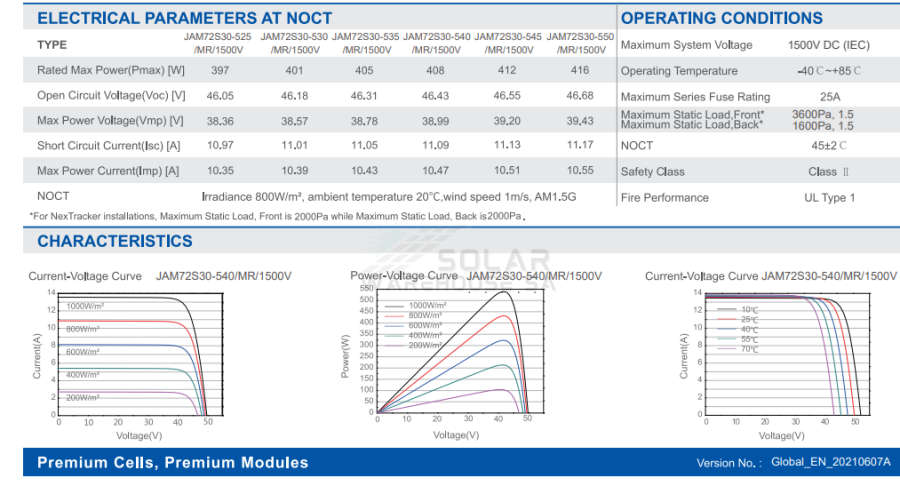

Specifications
- Rated Maximum Power (Pmax): 550W
- Open Circuit Voltage (Voc): 49.9V
- Maximum Power Voltage (Vmp): 41.96V
- Short Circuit Current (Isc): 14.00A
- Maximum Power Current (Imp): 13.11A
- Module efficiency: 21.3%
- Dimensions: 2279 x 1134 x 35 mm
- Weight: 28.6 kg
- Power tolerance: 0 - +5W
- Temperature Coefficient of Isc (_Isc): +0.045%/°C
The JA Solar 550W JAM72S30-550/MR is an excellent solar module for those seeking high efficiency, durability, and versatility. With its advanced features and robust design, this module is ideal for a variety of solar installations, offering benefits like higher output power, lower LCOE, less shading, and better mechanical loading tolerance, making it a valuable addition to any solar energy system.
Courier for panels are at your own risk
Warranty:
Mechanical warranty 12 years
Linear output warranty 25 years
