JA 550W solar panel

New
Indicative market price: R4,000
-+
198 available
R2,659.00 34% OFF
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Free collection from Airport Industria, Cape Town
The seller allows collection for this item and will be in contact with the full collection address once the order is ready. Ready for collection by Tuesday, 21 May.
Ready to ship in
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Get it now, pay later
Returns
Manufacturer
Warranty Type: Manufacturer 25 year Linear Power Performance Warranty*

Product information

Condition:
New
Location:
South Africa
Type:
Photvoltiac
Product code:
JAM72S30-550/MR
Bob Shop ID:
613200439

Features
- High output power
- Less shading effect
- Lower temperature coefficient
- Better mechanical loading tolerance
- Please note this module has Silver Frame and White Back-sheet
- Comes supplied with MC4 connectors and 1200mm long cables
This module with its 11Bus-bar half-cell configuration can reach up to incredible power of 550Wp. This module offers better temperature-dependent performance and enhanced tolerance for mechanical loading. More benefits of this module range:


Technical Specifications:
Cell: Mono.
Weight: 28.6kg

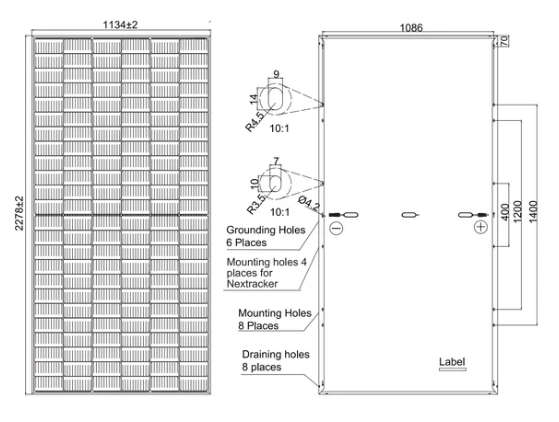

Dimensions: 2254×1135×35mm.
Cable Cross-Section Size: 4mm.
No. of Cells: 144 (6×24).
Junction Box: IP67, 3 diodes.
Connector: QC4.10 connectors.

Rated Maximum Power (Pmax) [W]: 550.
Open Circuit Voltage (Voc) [V]: 49.90.
Maximum Power Voltage (Vmp) [V]: 41.96.
Short Circuit Current (Isc) [A]: 14.00.
Maximum Power Current (Imp) [A]: 13.11.
Module Efficiency [%]: 21.3.
Power Tolerance: -0~+5W.
STC: Irradiance 1000W/m2, cell temperature 25°C, AM 1.5G.

Warranty:
12-year product warranty
25-year linear power output warranty
