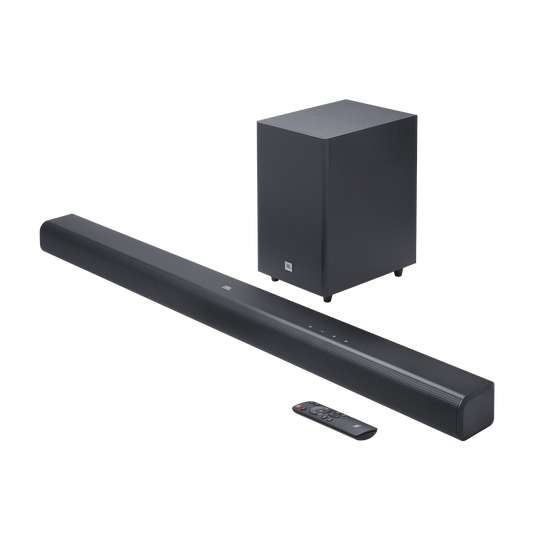

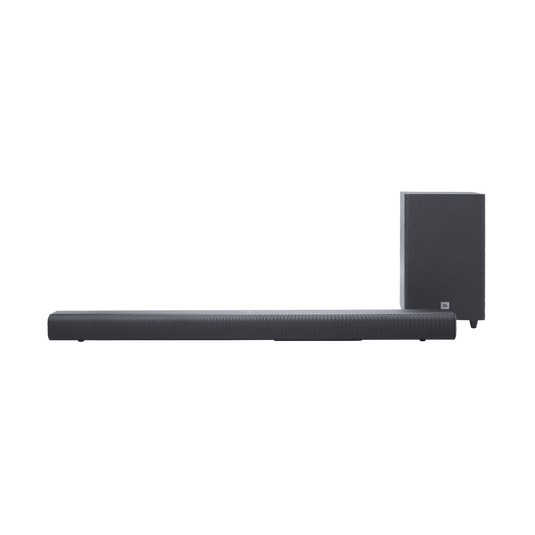

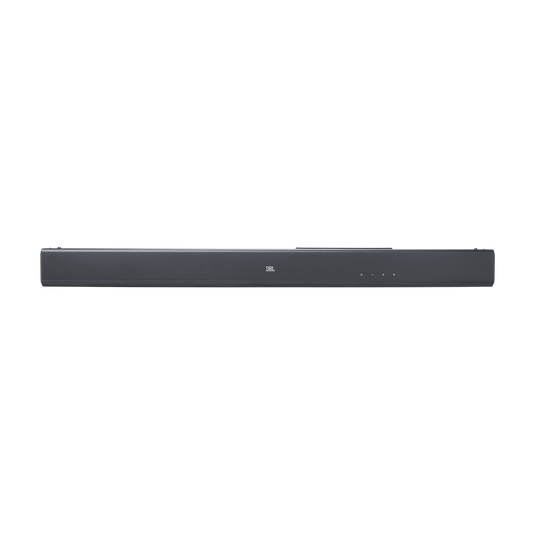

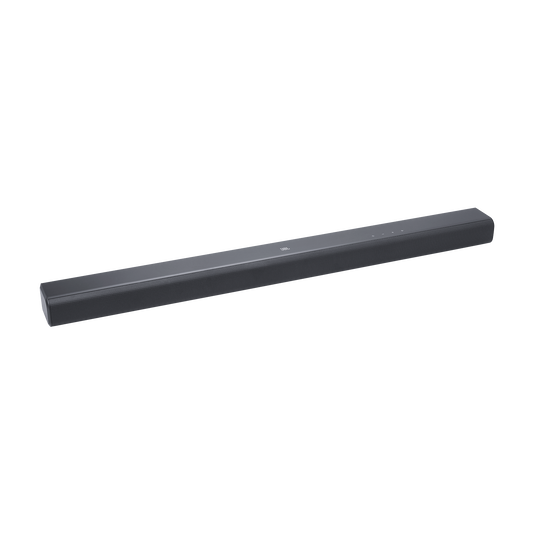

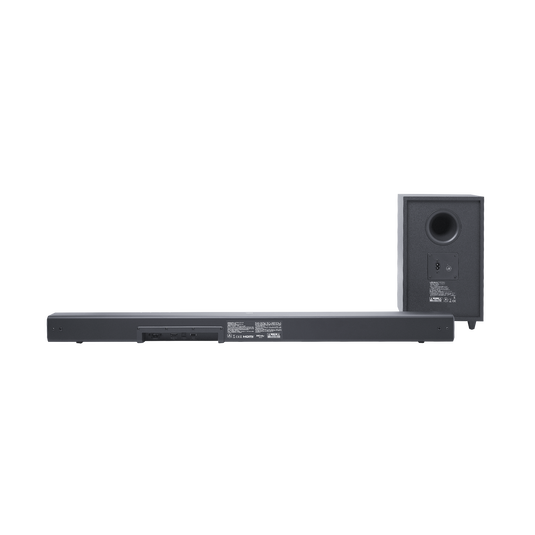

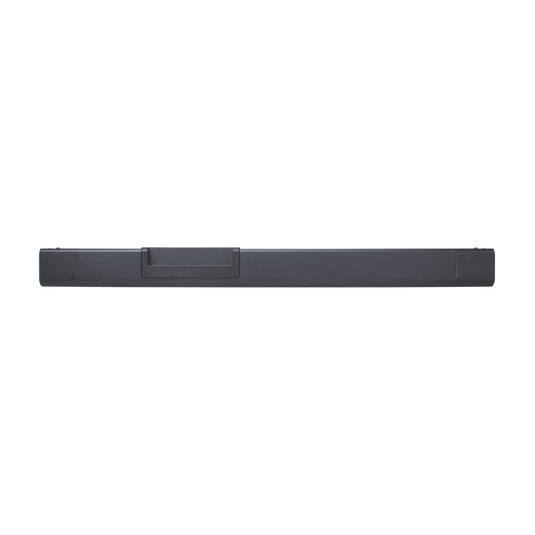

JBL Cinema SB560 3.1 Channel Soundbar with Wireless Subwoofer - Black
Description:
Epic Bass. Incredible sound.
Step up your sound with the 3.1 channel JBL Cinema SB560 soundbar. 250 watts of powerful Dolby Audio in a compact design, plus extra deep, extra loud bass from a wireless 5.25" subwoofer will make everything you watch more exciting. A dedicated center channel means TV and film dialogue always sounds crystal clear. Set-up is simple, with a choice of either a one-cable HDMI ARC or optical connections. And when the TV is off, seamless Bluetooth connectivity means you can use it to play your favorite streaming music and podcasts from any device.
Dedicated center channel driver provides superior voice clarity
A dedicated center channel delivers film and TV dialogue with amazing clarity. You'll never ask "What did they just say?" again.
250W power output
Incredible, powerful sound for an immersive cinematic experience.

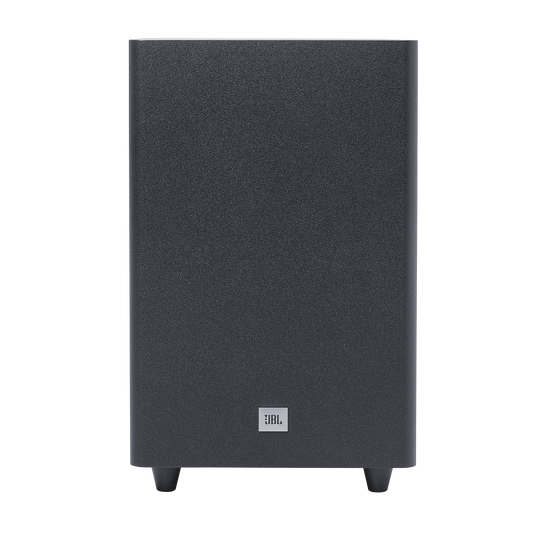

Wireless subwoofer for extra deep bass
Enjoy deep and thrilling bass and clutter-free experience
Features:
- One cable connection with HDMI ARC: The one cable HDMI ARC connection allows for the simplest set-up and a hassle-free user experience.
- Wireless music streaming via Bluetooth: Stream and enjoy all your music wirelessly from any mobile device.
- Dolby Audio embedded: Dolby Audio embedded for ultimate movie experience.
Specifications:
General Specifications
Model: CINEMA SB560
Sound system: 3.1 channel
Power supply: 100 - 240V AC, ~ 50/60Hz
Total speaker power output (Max @THD 1%): 250W
Soundbar output power (Max @THD 1%): 150W
Subwoofer output power (Max. @THD 1%): 100W
Soundbar transducer: 3x (45 x 100) mm racetrack drivers + 2x 13mm tweeters

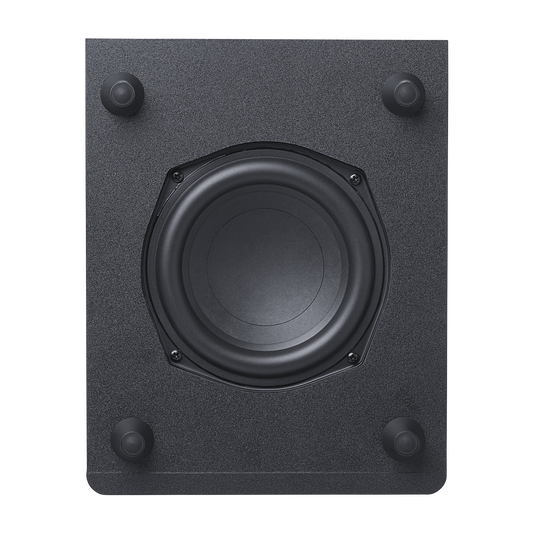

Subwoofer transducer: 5.25" (133 mm), wireless subwoofer
Standby power: < 0.5 W
Operating temperature: 0°C - 45 °C
Audio Specifications
Frequency response: 45Hz-20kHz (-10dB)
Audio inputs: 1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
Soundbar dimensions (W x H x D): 950 x 64 x 80 mm / 37.4'' x 2.5'' x 3.1''
Subwoofer dimensions (W x H x D): 200 x 324 x 250 mm / 7.9" x 12.8" x 9.9"
Soundbar weight: 2.5kg / 5.5 lbs
Subwoofer weight: 4.2 kg / 9.3 lbs
Packaging dimensions (W x H x D): 1025 x 235 x 397 mm / 40.4" x 9.3" x 15.6"
Packaging Weight: 8.8kg / 19.4 lbs
Control and Connection Specifications
USB port: Type A
USB rating: 5V DC, 0.5A
Supporting file formats: mp3
MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate: 16 - 48 kHz
Bluetooth version: 5.3
Bluetooth profile: A2DP 1.3, AVRCP 1.6
Bluetooth transmitter frequency range: 2400 MHz 2483.5 MHz
Bluetooth Max. transmitting power: <10 dBm (EIRP)
Bluetooth modulation: GFSK, /4 DQPSK, 8DPSK
2.4G wireless transmitter frequency range: 2402-2481 MHz
2.4G wireless transmitter power: ＜10dBm (EIRP）
2.4G wireless modulation: GFSK
Video Specifications
HDMI ARC (Audio Return Channel): 1
HDMI HDCP version: 1.4

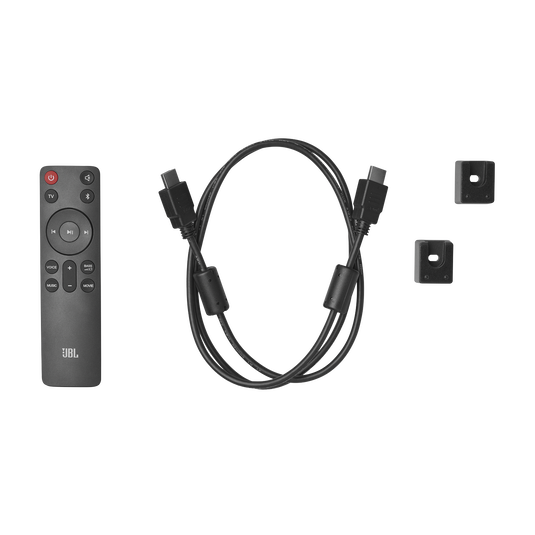

What's in the box:
- Soundbar
- Wireless subwoofer
- Remote control with batteries
- Power cords (up to 8pcs depending on region SKUs)
- HDMI cable
- Wall-mount bracket kit with screws
- Quick start guide
- Warranty card
- Safety sheet
