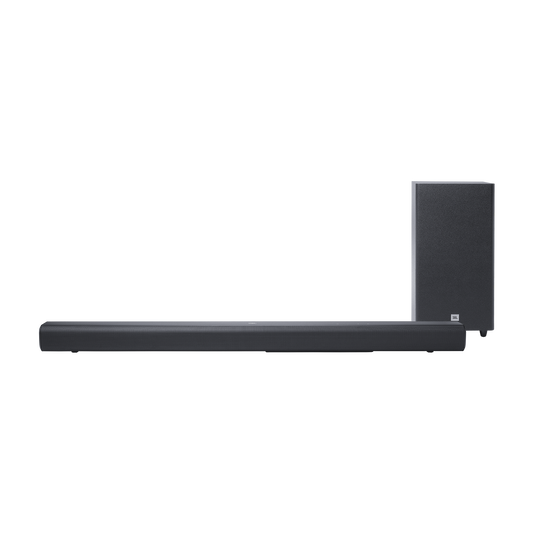

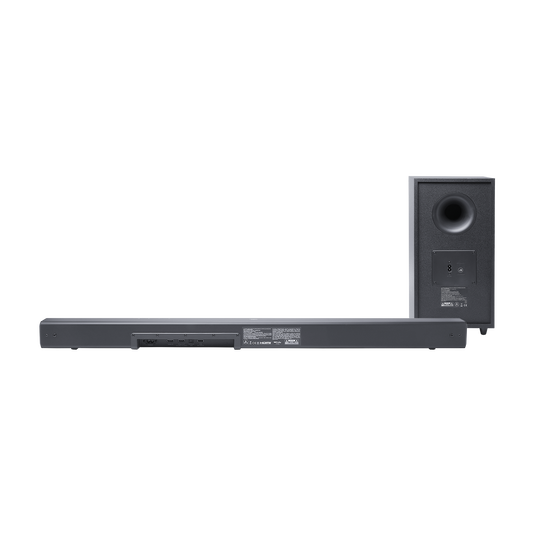

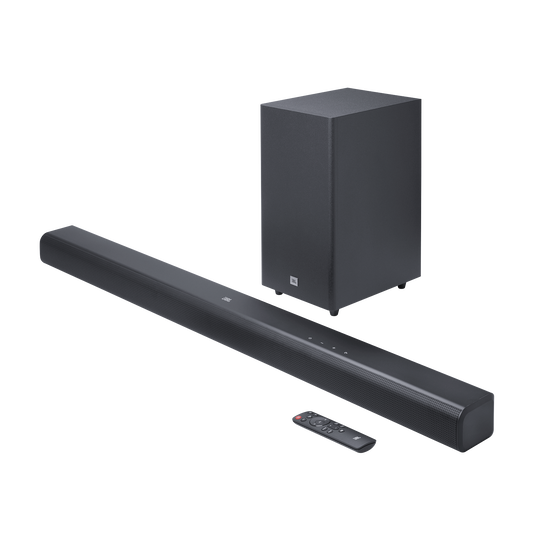

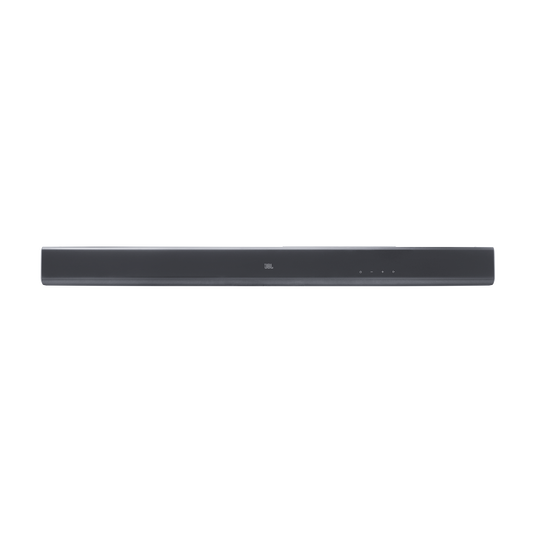

JBL Cinema SB580 3.1 Channel Soundbar with Wireless subwoofer - Black
Thunderous Bass. Immersive 3D sound
Step into a world of immersive home audio with the JBL Cinema SB580 soundbar. An explosive 440 watts of powerful Virtual Dolby Atmos® sound in a compact design plus thunderous extra-deep bass from a 6.5" wireless subwoofer combine to surround you in a whole new level of sound. A dedicated center channel means TV and film dialogue is always crystal clear. High-resolution HDMI eARC, HDMI, or optical connections give you plenty of easy set-up options. And when the TV is off, seamless Bluetooth connectivity means you can use it to play all your favorite streaming music and podcasts from any device.
Dedicated center channel driver provides superior voice clarity
A dedicated center channel delivers film and TV dialogue with amazing clarity. You'll never ask "What did they just say?" again.
440W of powerful JBL sound
Clear, powerful sound for the ultimate immersive home theater experience.

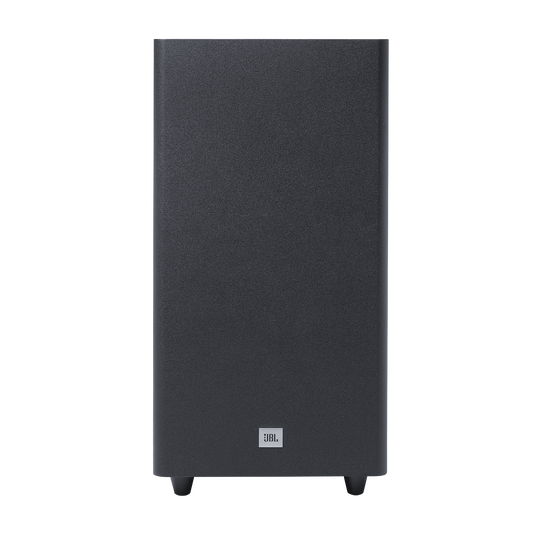

Wireless subwoofer for extra deep bass
Experience deep, thrilling bass from a 6.5" subwoofer without the clutter of extra cables.
Features:
Virtual Dolby Atmos
Feel the sound coming at you from every direction with virtual Dolby Atmos technology. Hear your favourite movies, TV shows, and music like never before.
HDMI-in and HDMI eARC capable
Enjoy the highest quality, True HD Dolby Atmos sound experience from your HDMI eARC - equipped television.
Wireless musix streaming via Bluetooth
Stream and enjoy all your music wirelessly from any mobile device.
General Specifications
- Model
- CINEMA SB580
- Sound system
- 3.1 channel
- Power supply
- 100 - 240V AC, ~ 50/60Hz
- Total speaker power output (Max @THD 1%)
- 440W
- Soundbar output power (Max @THD 1%)
- 240W
- Subwoofer output power (Max. @THD 1%)
- 200W
- Soundbar transducer
- 3x (45 x 100) mm racetrack drivers + 3x 13mm tweeters

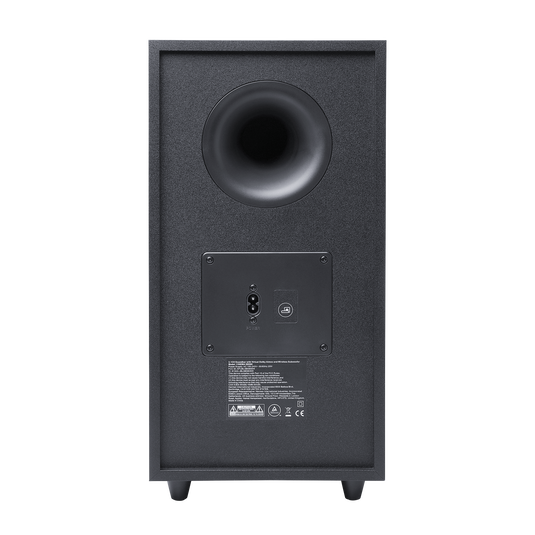

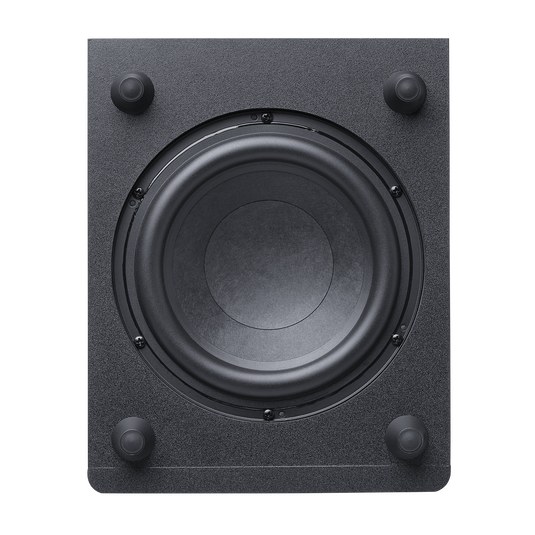

- Subwoofer transducer
- 6.5" (165 mm), wireless subwoofer
- Standby power
- < 0.5 W
- Operating temperature
- 0°C - 45 °C
Audio Specifications
- Frequency response
- 40Hz-20kHz (-10dB)
- Audio inputs
- 1 Optical, Bluetooth and USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions

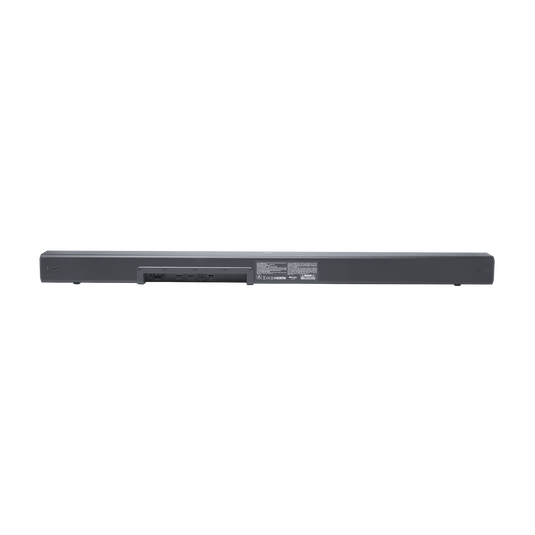

- Soundbar dimensions (W x H x D)
- 950 x 64 x 80 mm / 37.4'' x 2.5'' x 3.1''
- Subwoofer dimensions (W x H x D)
- 200 x 404 x 250 mm / 7.9" x 15.9" x 9.9"
- Soundbar weight
- 2.6kg / 5.7 lbs
- Subwoofer weight
- 5.7 kg / 12.6 lbs
- Packaging dimensions (W x H x D)
- 1025 x 235 x 397 mm / 40.4" x 9.3" x 15.6"
- Packaging Weight
- 10.4 kg / 22.9lbs
Control and Connection Specifications
- USB port
- Type A
- USB rating
- 5V DC, 0.5A
- Supporting file formats
- mp3
- MP3 codec
- MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
- MP3 sampling rate
- 16 - 48 kHz
- Bluetooth version
- 5.3
- Bluetooth profile
- A2DP 1.3, AVRCP 1.6
- Bluetooth transmitter frequency range
- 2400 MHz 2483.5 MHz
- Bluetooth Max. transmitting power
- <10 dBm (EIRP)
- Bluetooth modulation
- GFSK, /4 DQPSK, 8DPSK
- 2.4G wireless transmitter frequency range
- 2402-2481 MHz
- 2.4G wireless transmitter power
- ＜10dBm (EIRP）
- 2.4G wireless modulation
- GFSK
Video Specifications
- HDMI video input
- 1
- HDMI video output (with Enhanced Audio Return Channel, eARC)
- 1
- HDMI HDCP version
- 2.3
-

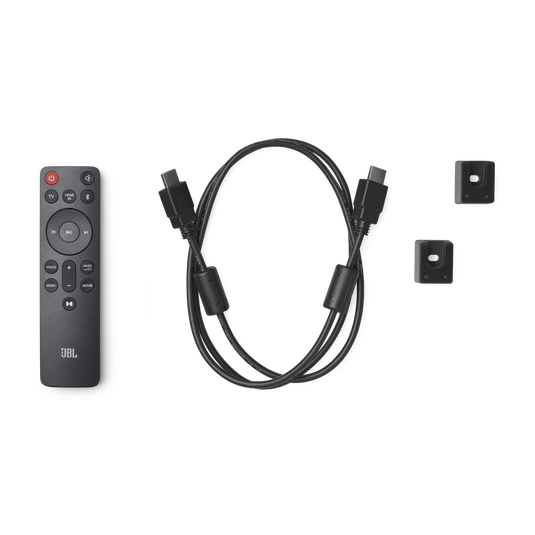

What's in the box
- Soundbar
- Wireless subwoofer
- Remote control with batteries
- Power cords (up to 8pcs depending on region SKUs)
- HDMI cable
- Wall-mount bracket kit with screws
- Quick start guide
- Warranty card
- Safety sheet
