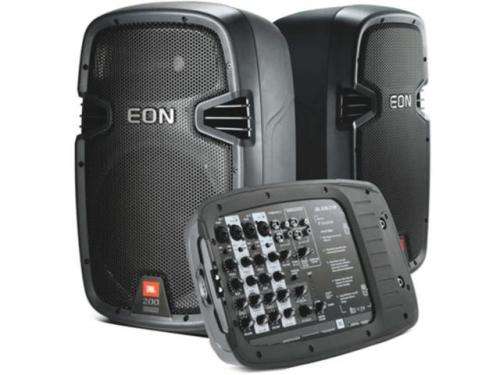

JBL EON PORTABLE PA SYSTEM

300 watt High-Performance Powered Speaker System.
Ergonomic soft touch top grip for easy handling.
10" low-frequency driver with neodymium magnet for low-distortion and light weight.
1" throat diameter next generation JBL neodymium compression driver.
Efficient Crown Class-D amplifier technology.
100deg. H x 60deg. V asymmetrical wave guide for uniform audience coverage.
8 channel powered mixer with intuitive interface.
On board digital multi-effects.
Integrated 36 mm pole mount socket with stabilizing securing screw.
Highly designed composite enclosures for durability, lightweight, and acoustic performance.


Specifications.
Maximum SPL Output - 124 dB peak system output (pink noise)
Frequency Range (-10 dB) - 60 Hz - 20 kHz
Frequency Response (±3 dB) - 75 Hz - 19 kHz
AC input - 120 - 240 V 50/60 Hz, voltage selector switch sets operational range
Amplifier Design - Crown Class D
System Power Rating - 300 Watts (2 x 150 W Stereo)
Output Connector - 2 x 1/4" TS (unbalanced) amplifier outputs
Input Connectors - 8 inputs (4 Mono Mic/Line, 2 x Stereo)
Channels - 1-4 are XLR / 1/4" jack combo connectors, XLR is a mic level input,1/4" is a line level input. 5-6, one pair of 1/4" balanced TRS jacks(stereo), and a pair of RCA jacks (stereo). 7-8 is a 3.5 mm stereo jack
Input Impedance
Ch 1-4 Combo: XLR 3 K Ohms Balanced
Ch 1-4 Combo: TRS 20 K Ohms Balanced
Ch 5-6: TRS 25 K Ohms Balanced
Ch 5-6: RCA 12 K Ohms Unbalanced
Ch 7-8: 3.5 mm 30 K Ohms Unbalanced
Phantom Power - 30 V
Output Connectors
Monitor outputs: one pair of 1/4" balanced TRS jacks (stereo), and a pair of RCA jacks (stereo)
Headphone output: one 3.5 mm stereo jack
Signal Indicators: Output LED Ladder Limit: Red LED indicates limiter active condition,Signal: Green LED indicates signal present
Signal Indicators: Ch 1-4 - Peak LED: Green = signal present, Red = input overload
EQ - Individual channel Bass and Treble controls, center detent, +/-6 dB cut and boost
System Limiter - On Board DSP Limiting and Tuning
LF Driver - 1 x JBL 328H 250 mm (10 in) woofer
HF Driver - 1 x JBL 2414H-1 37.5 mm (1.5" ) annular polymer diaphragm, neodymium compression driver
Coverage Pattern - 100deg. x 60deg. nominal
Crossover Frequency - 2 kHz
Crossover Type - Passive network, 2nd order filters (-12 dB per octave) for high pass and low pass filters
Enclosure Polypropylene
Suspension/ Mounting - 36 mm pole socket with stabilizing screw
Handles - One on top
Grille - Powder coated perforated steel.
