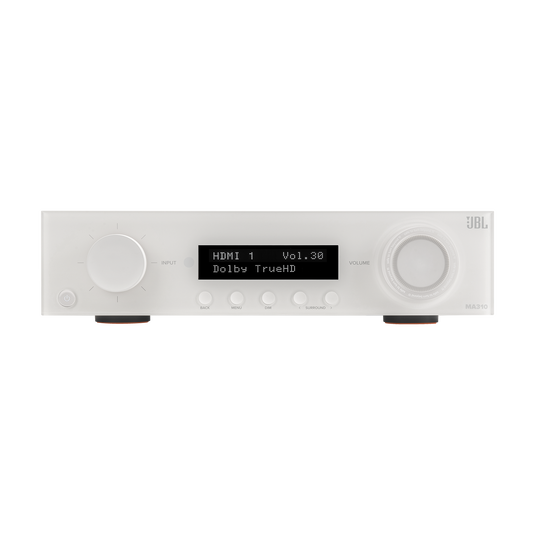

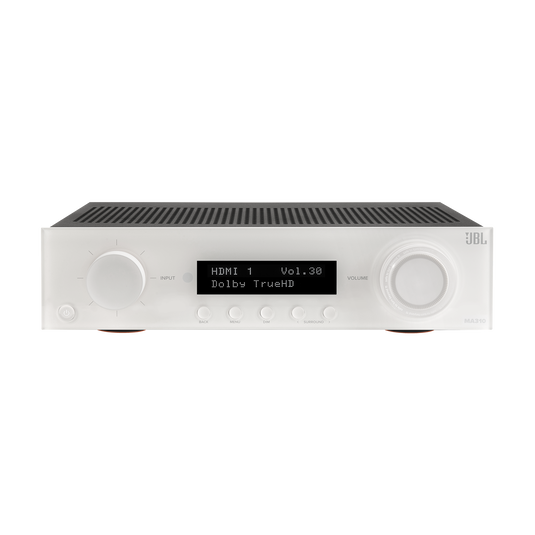

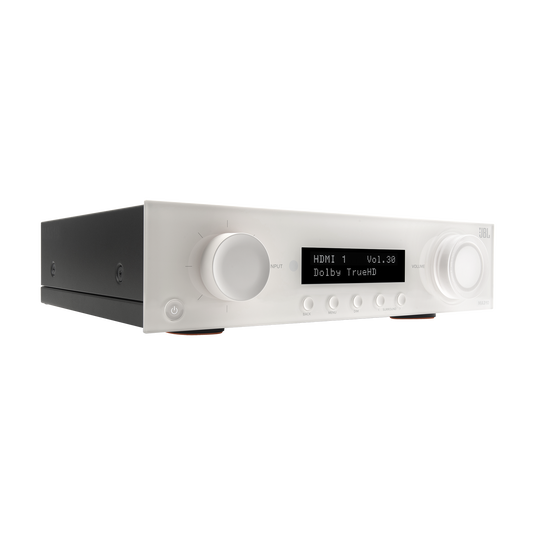

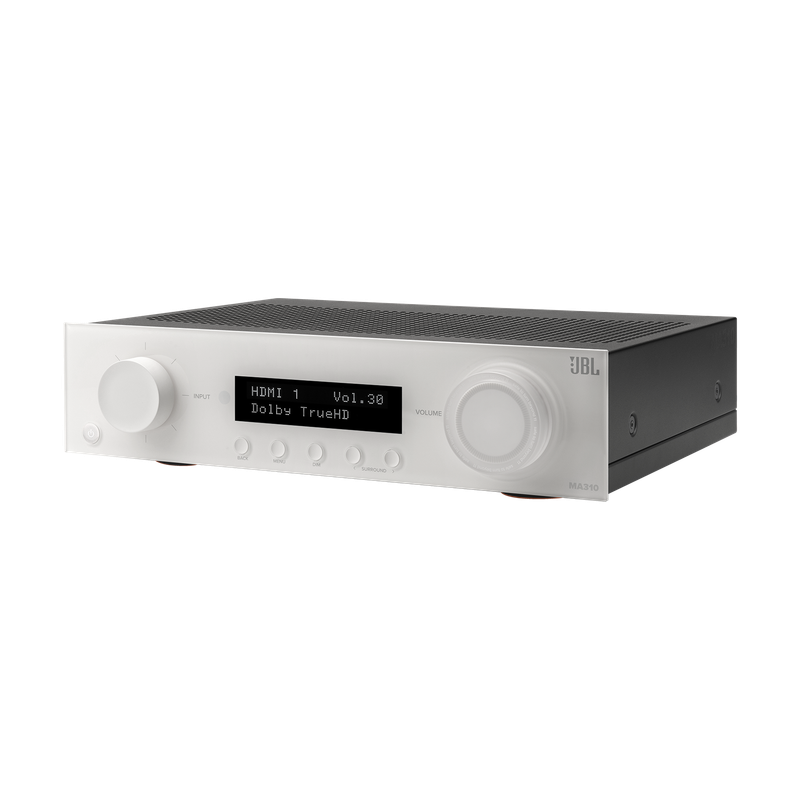

JBL MA310 5.2 Channel 4K AV Receiver - White
Extraordinary audio and video performance
5.2-channel AV receiver that delivers extraordinary audio performance with 4K video for a supreme home cinema experience.
Intuitive setup with a minimalist modern design
Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 4 HDMI inputs and 1 output, plus ARC.
High-performance immersive surround sound
Native 5-channel decoding of Dolby and DTS formats.
Features:
- Bring both music and movies to life with true high fidelity: Designed with a passion for music and movies, bring both to life with true high fidelity.
- Bluetooth Streaming: Stream music wireless via Bluetooth v5.1 + Low Energy.
- On-screen setup and operation: On-screen display for easy system setup and operations (via HDMI).
- Powerful Amplification: Five channels of low noise Class D amplification for real world power to all channels.
- EZ Set EQ: EZ Set EQ provides easy-to-use room equalization for optimized sound quality.
Description
Bring both music and movies to life with true high fidelity.
The JBL MA310 is an AV Receiver that delivers extraordinary performance with 4K HDMI specifications for a supreme home cinema experience. Seamlessly integrate your smart TV or projector with 4 HDMI inputs and 1 output, plus ARC. With native 5-channel decoding of Dolby and DTS formats, the MA310 can deliver incredible cinema experiences. It is designed with a passion for music and movies, bringing both to life with true high fidelity. Additional music content can be accessed via Bluetooth. The MA310 features five channels of low noise Class D amplification for real world power to all channels.
General Specifications
HDMI Audio Return Channel
Yes
4K HDMI input connectors (HDMI 2.0,HDCP 2.2 up to 4K/60Hz Ultra HD)
4
HDR 10
Yes
Pure Direct
Yes
EZ Set EQ
Yes
Digital signal processing
up to 24-bit/192kHz
Mains voltage
110 240V, 5060Hz
Max. power consumption
200W
Standby power consumption
<0.5W
Audio Specifications
Channels
5.2
FTC Rated Output Power (20Hz 20kHz, 2 channels driven, 1% THD max, 8)
50W
Rated Power @ 8 (20Hz 20kHz, 2 channels driven, 0.5% THD max)
60 W RMS
Rated Power @ 4 (20Hz 20kHz, 2 channels driven, 0.5% THD max)
100 W RMS
Dimensions
Dimensions incl. feet and speaker terminals (H x W x D)
4.3" x 17.0" x 13.7" (109.2mm x 432.0mm x 347.6mm)
Weight
11.3lb (5.1kg)
Control and Connection Specifications
HDMI Input/Output
4 / 1
Bluetooth receiver
Yes (v5.1, Low Energy)
Digital Audio Input
1 Coax, 1 Optical
Stereo analog input
2 single-ended RCA
Pre-Out (single ended RCA)
Subwoofer 1, Subwoofer 2
What's in The Box?
1x IR Remote
2x AAA batteries
1x Bluetooth antenna
1x Power Cord
1x Quick-Start Guide
1x Safety Sheet
