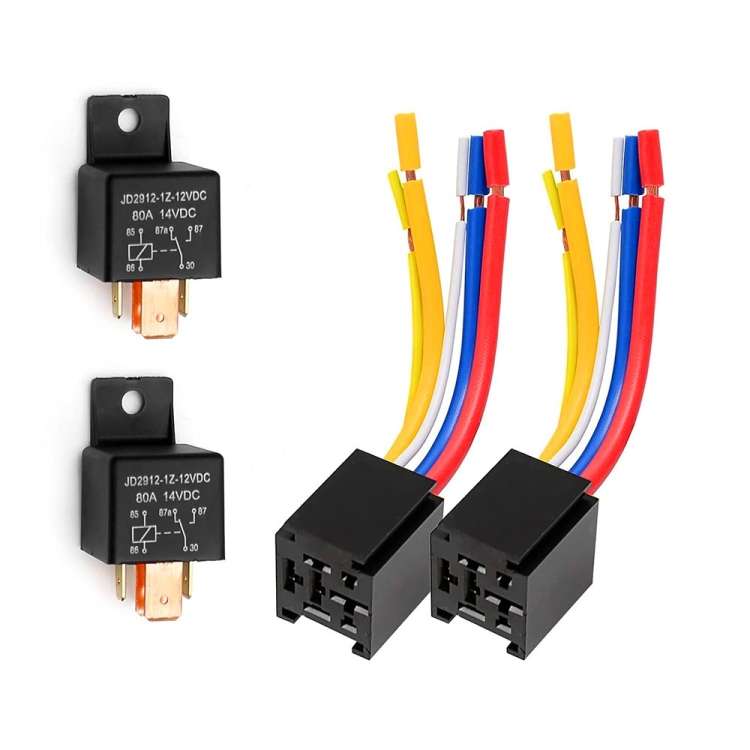

JD2912 80A 12V 5 Pin Car Relay with Wire SPDT Socket Plug
10 were available / new
R341.00
0% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller has indicated that they will usually have this item
ready to ship within 15 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:
1. Overall dimensions: 28 x 28 x 25.0mm 2. Coil power: 1.8W 3. Contact form: 1a, 1b, 1c 4. Contact capacity: 1a:80A 14VDC / 1b:60A 14VDC / 1c:80A/60A 14VDC 5. Coil voltage: 6VDC, 9VDC, 12VDC, 24VDC, 48VDC, 36VDC, 72VDC 6. Contact resistance: less than or equal to 50 milliohms 7. Insulation resistance: greater than or equal to 100 milliohms 8. Lifespan: - Electrical: 1 x 100000 times - Mechanical: 1 x 10000000 times 9. Dielectric withstand voltage: 500VAC between open contacts, 500VAC between coil contacts 10. Ambient temperature: -40 degrees Celsius to +125 degrees Celsius 11. Installation form: quick connection type and socket type 12. Product features: large capacity, can switch 80A current, and can provide standard contact forms: 1 set of normally open, 1 set of normally closed, and 1 set of switching. 13. Product use: automobile control device 14. Simple and convenient installation, easy to replace and use.
