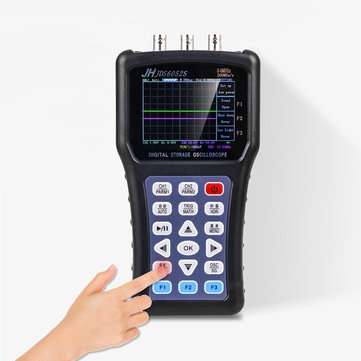

JDS6052S Handheld Dual Channel Digital 50M Bandwidth Oscilloscope+5M Function Sign... (PLUG: USPLUG)

20 available / new

R2,068.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3519

93.51 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643381995

SELECTED OPTION:
PLUG: USPLUG

Features:

2.8 inch TFT color screen One-click Chinese, English, Russian,Spanish,Portuguese Compact body, easy to carry Long standby time (one 18650 battery can work for 5 hours)
Specification:

1.Oscilloscope Specification: Number of channels: 2 Maximum real-time sampling rate: CH1 200MSa/s for single channel CH1, CH2 100MSa/s for single channel Bandwidth: Single channel 50M dual channel 25M Vertical resolution: 8 digits Vertical gear: 10mV - 5V (probe x1) 100mV - 50V (probe x10) 1,2,5 stepping Impedance: 1M 25pF Coupling: DC, AC Display mode: Y-T / X-Y Input voltage: 40V (probe x1); 400V (probe x10); Using a high voltage probe, the maximum voltage is determined by the quality of the probe Time base range: 12.5ns - 5s 100ms - 5s for scan mode (scan) Memory depth: 3K per channel Trigger mode: automatic, normal and single Trigger type: rising edge, falling edge Automatic detection: 50Hz - 20MHz Cursor measurement: time, voltage (manual mode) Recordable contrast waveform: 2 Screenshot function: 6 sheets bmp format Mathematical calculations: CH1+CH2, CH1-CH2, CH2-CH1 Self-calibration: support 2.Signal Generator Specification: Number of channels: 1 Frequency: Zhengxuan wave (1Hz-5MHz) Square wave (1Hz-1MHz) Positive sawtooth wave (1Hz-1MHz) Reverse sawtooth wave (1Hz-1MHz) Amplitude: 100mV - 8V Offset: Max +-(0V-4V) Duty cycle: 0% - 100%

Battery:18650 rechargeable lithium battery(not included)

Packageincludes:

2 X P6100 probe (maximum 100M) 1 X CD manual 1 X Charger (EU Plug/US Plug Note: We will send you a plug adapter according to your country. ) 1X USB cable 1 X signal source output line

Detailspictures:
