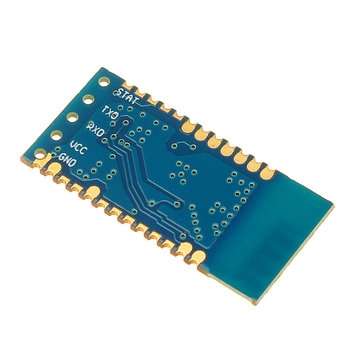

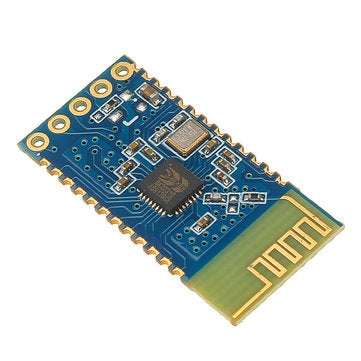

JDY-31 bluetooth Module 2.0/3.0 SPP Protocol Android Compatible With HC-05/06 JDY-30

20 available / new

R357.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3505

93.41 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643382004

Introduction: JDY-31 bluetooth is based on bluetooth 3.0 SPP design, which can support Windows, Linux, android data transmission, working frequency band 2.4GHZ, modulation mode GFSK, maximum transmission power 8db, maximum transmission distance 30 meters, support users to modify device name through AT command The baud rate and other instructions are convenient and quick to use.

Applications: JDY-31 is a classic bluetooth protocol that can communicate with bluetooth-enabled computers (desktops, notebooks) and mobile phones (android). Can be applied -Windows computer bluetooth serial port transparent transmission -Android bluetooth serial port transparent transmission -Smart home control -Automotive ODB testing equipment -bluetooth toy -Share mobile power, share weight -Medical equipment

Parameter:

Model: JDY-31 Working frequency band: 2.4GHZ Communication interface: UART Operating voltage: 1.8-3.6V (3.3V recommended) Working temperature: -40 ﾣ C - 80 ﾣ C Antenna: Built-in PCB antenna Transmission distance: 30 meters Master-slave support: slave Module size: 19.6 * 14.94 * 1.8 mm (length, width, height) bluetooth version: bluetooth 3.0 SPP STM soldering temperature: <260ﾣC Unconnected operating current: 4.7mA Current after BLE connection: 7.3mA Transmitting power: 8db (maximum) Receive sensitivity: -97dbm SPP maximum throughput: 16K bytes/s (android, windows)
Package includes:

1 xJDY-31 module
