This Northbridge chipset cooler, model JACSB1, is a heat sink and fan designed to dissipate heat from the Northbridge chip on a computer's motherboard.
This component is crucial for maintaining system stability by preventing overheating of the Northbridge, which handles high-speed communication
between the CPU, memory, and graphics card.
Features:
Built in extreme silent fan
Powerful heat dissipation
Dual mounting holes for wide application
Accessories included

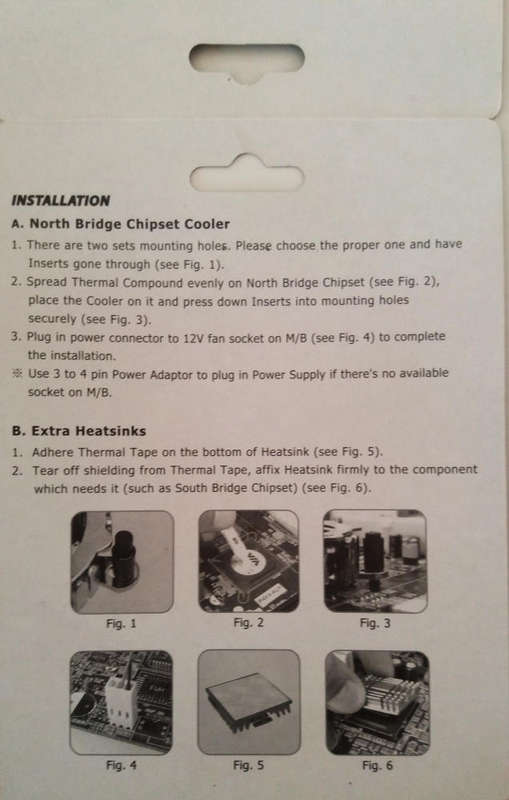

Easy to install - instructions are supplied with package
Specifications:
Chipset Cooler:
Dimensions: 51.2 x 59 x 14.2 mm
Heatsink Material: Aluminum Alloy
Fan Dim: 40 x 40 x 10 mm
Bearing type: Sleeve bearing
Fan Speed: 5000 R.P.M.
Rated Current: 0.07 A
Rated Voltage: DC 12 V
Power Consumption: 0.84 W
Weight 25 g

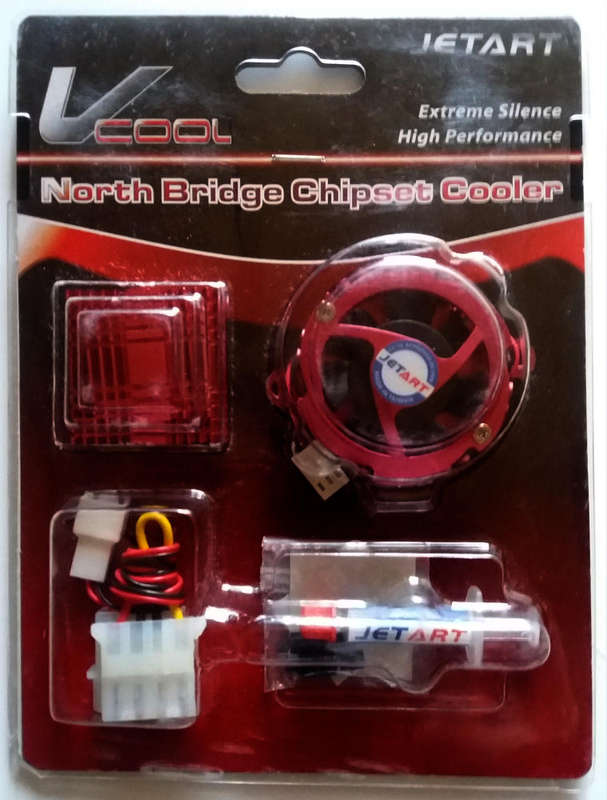

Package contents :
Chipset Heatsinks: 27.5 x 27.5 x 6.5 mm - 1 pc and 37.5 x 37.5 x 6.5 mm - 1 pc
Thermal Tape
Power adapter: 3 to 4 pin - 1 pc
Thermal Compound: Needle tube 1.5 g - 1 pc
