Name: JF-0826B 12V DC 10mm Hard Magnetic 20N Push Pull Electromagnet Frame Solenoid
SKU: 1130239
Price: 109.00 ZAR
Availability: SoldOut

JF-0826B 12V DC 10mm Hard Magnetic 20N Push Pull Electromagnet Frame Solenoid

5 were available / new

Indicative market price: R165.00

R109.00

34% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

WorldWide Traders1484

95.02 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: Only if item is faulty.

Get it now, pay later

Condition

New

Location

International

Product code

1130239

Bob Shop ID

317406422

Please read and understand terms of sale under the Shipping Tab before making your purchase.

Please note:
If there are options for this order then the price indicated is for the basic model.
Please use Ask a Question to ask for the price of any of the other models of the other models listed.

Description:

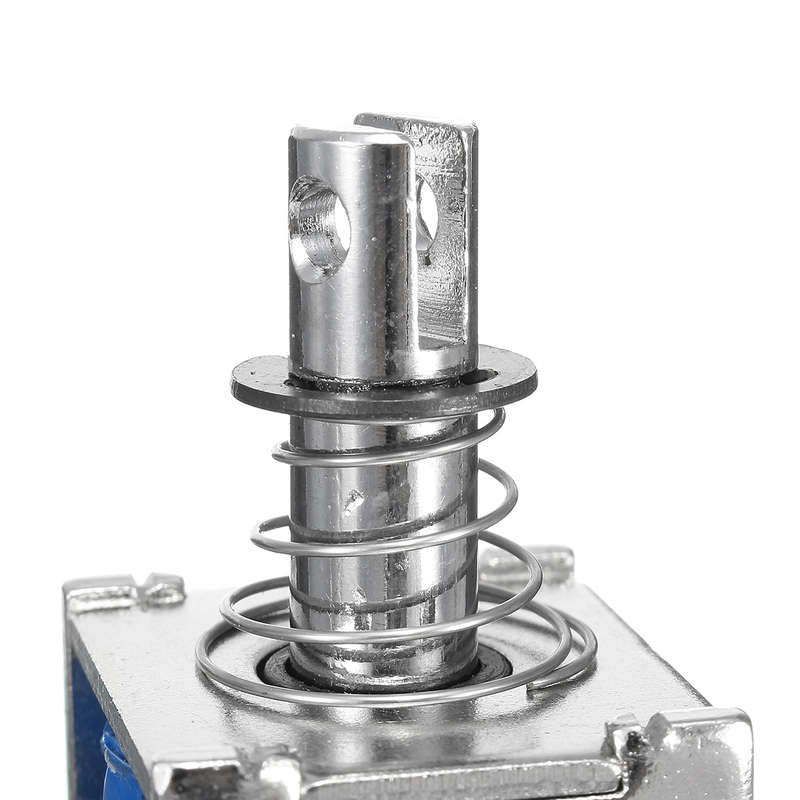

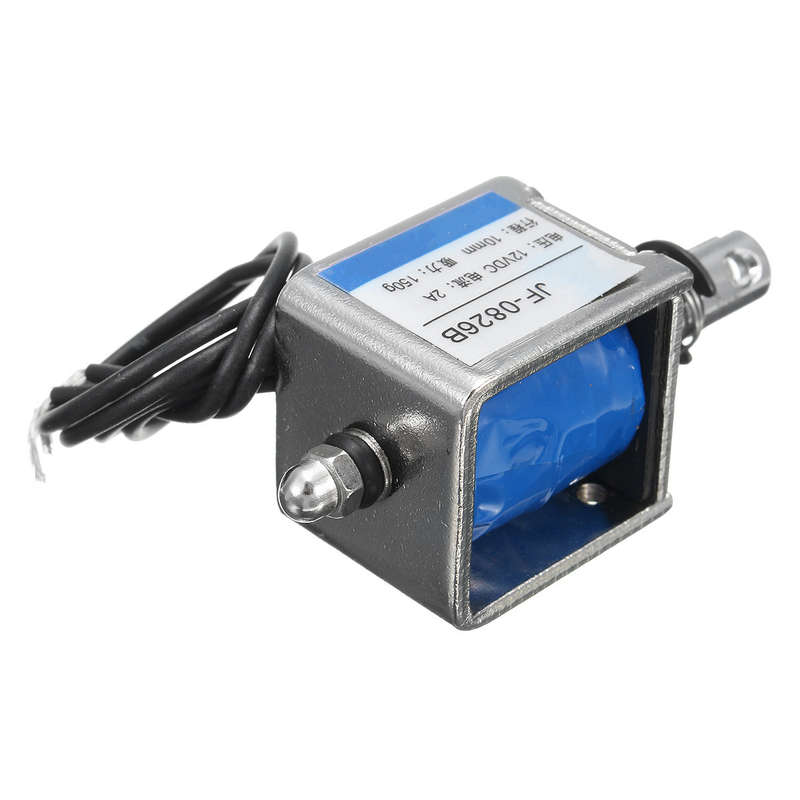

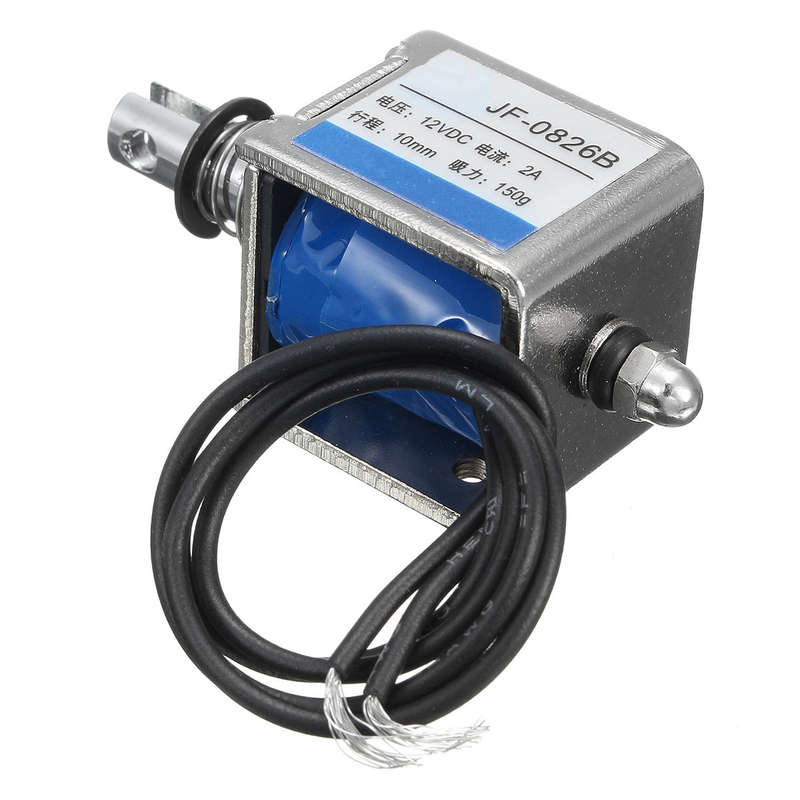

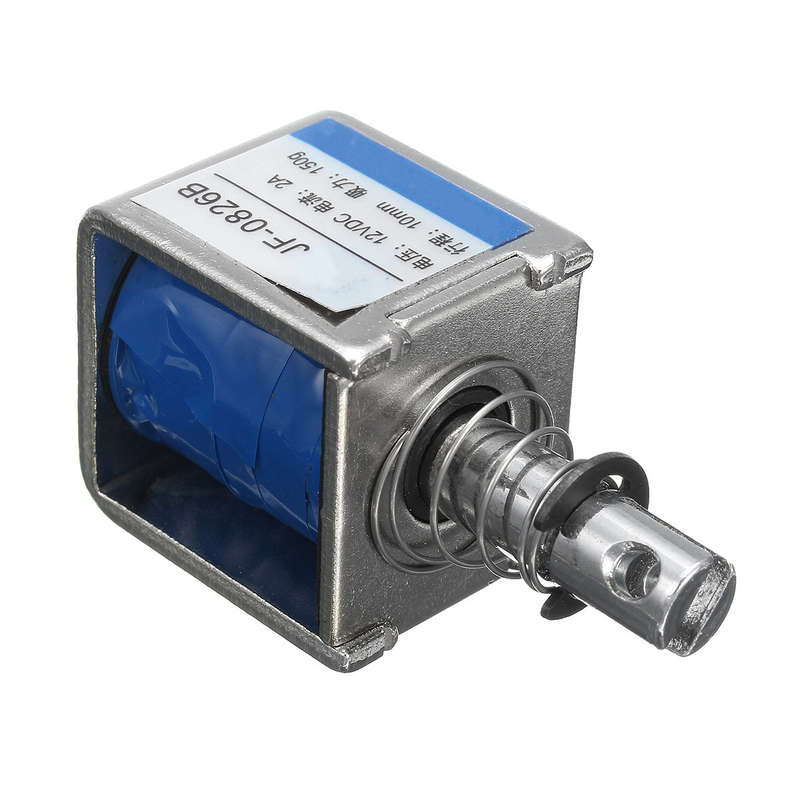

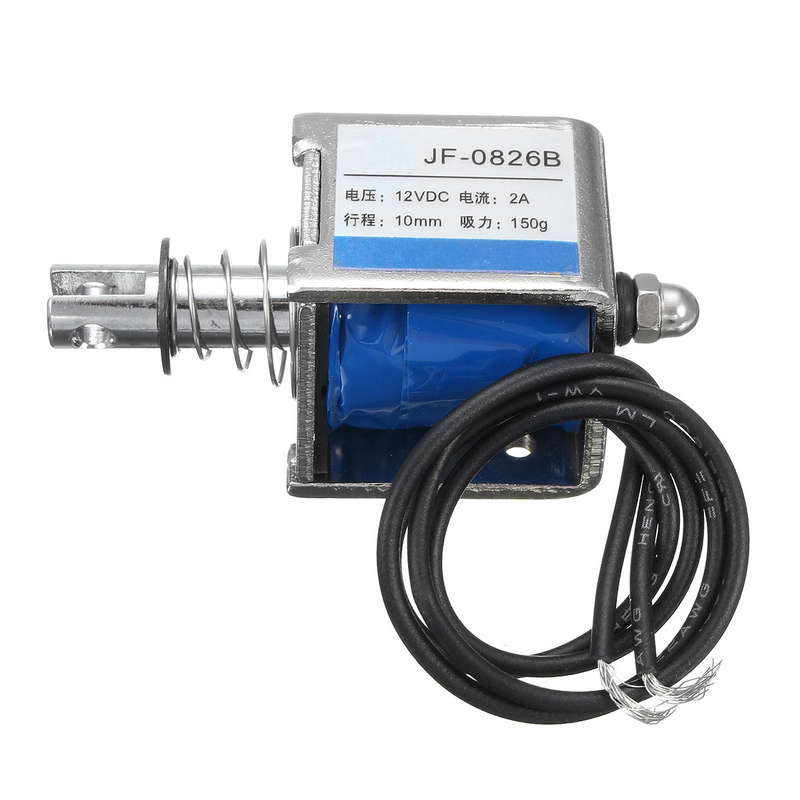

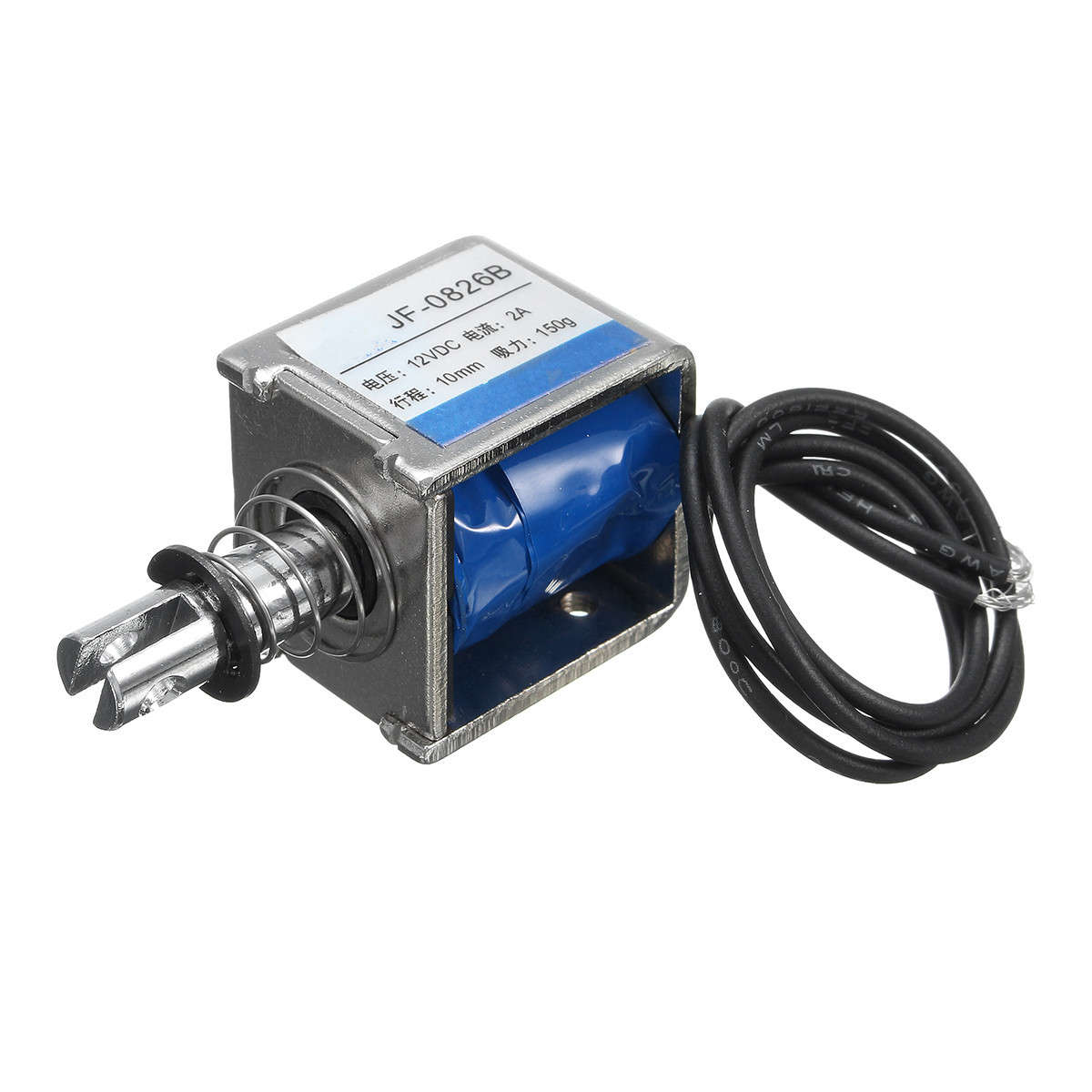

JF-0826B Hard Magnetic 12V DC 10mm 20N Push - Pull Electromagnet Frame Solenoid

Specification:
Material: Hard magnetic material
Current characteristics: DC
Current :2A
Voltage: 12V DC
Initial suction: 20 (N)
Working voltage: 24V
Rated travel: 10 (mm)
Length:60mm

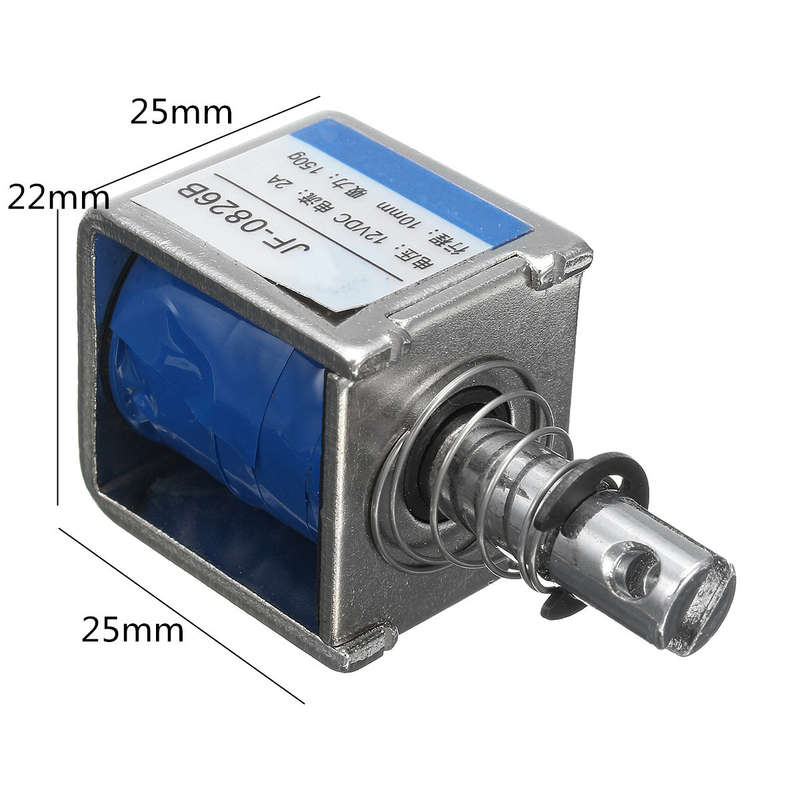

Size:25x25x22mm

Operating conditions:
1. The operating temperature: -5 ¿¿¿ to 40 ¿¿¿ between the solenoid valve will not solidify
2. The operating humidity: relative humidity of 45% to 85% between the solenoid valve will not solidify
3. Storage temperature: -40 ¿¿¿ to 75 ¿¿¿ between the solenoid valve will not solidify
4. Storage humidity: relative humidity 0% to 95% between the solenoid valve will not solidify

Performance to show:
Temperature rise: 65 or less (grade A) Life: Under load conditions, more than one million cycles can be used.

Test environment:
1. ambient temperature: 23 ± 2 ¿¿¿
2. relative humidity: 50 ± 10%
3. atmospheric pressure: 1013MPa
4. Insulation resistance: 500VDC insulation resistance measurement, the coil and the yoke between the need to have at least 100MΩ of the insulation resistance
5. the insulation strength: coil and yoke between the insulation strength should be able to withstand at least 600VAC / 1 minute

Features:
1. Easy to fix and connect the load.
2. Temperature stability, can extend product life and ensure good performance.
3. E retaining ring and rubber gasket to mute the solenoid valve.
4. Low friction ensures high efficiency and extension.
5. Simple and reliable structure design.

Application:
1. Players: eat the tiger, all kinds of money meter.
2. Vending machines: all kinds of vending machines, exchange machines, ticket machines.
3. Office equipment: list machine, computer equipment, fax machines, punch card machines, photocopiers, typewriters, cash registers, drawing machines, open drink machine.
4. Transport equipment: automatic door locks, safety belt locks, automotive solenoid valves, parking equipment.
5. Household appliances: tape recorders, video recorders, electronic piano, automatic knitting machine, accompaniment machine.
6. Other: packaging machines, manipulators, farming equipment, stamping equipment, fire, anti-theft, water-saving solenoid valve.

Package Included:
1 x Electromagnet
