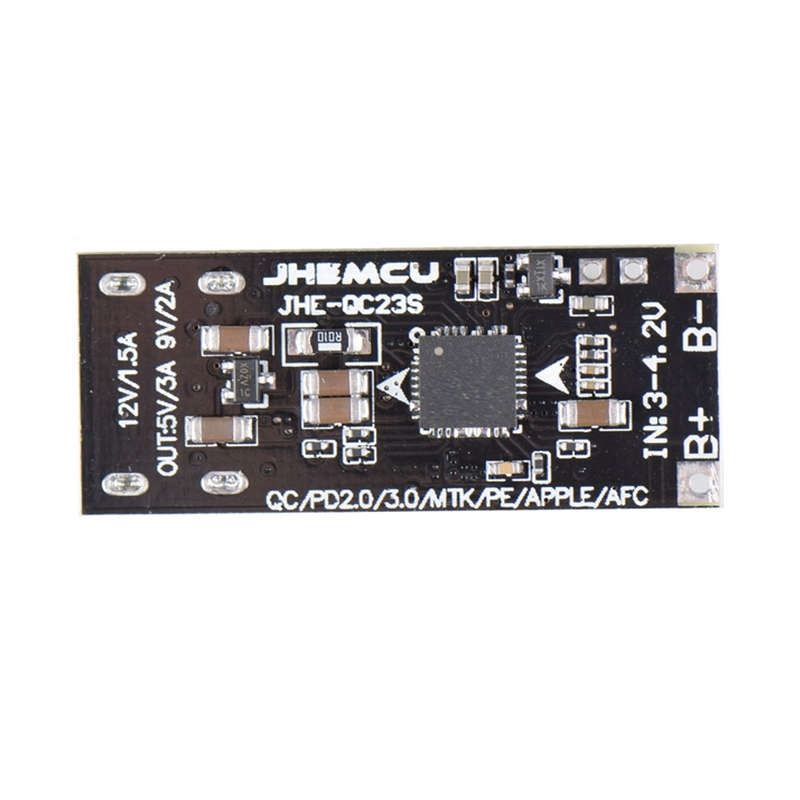

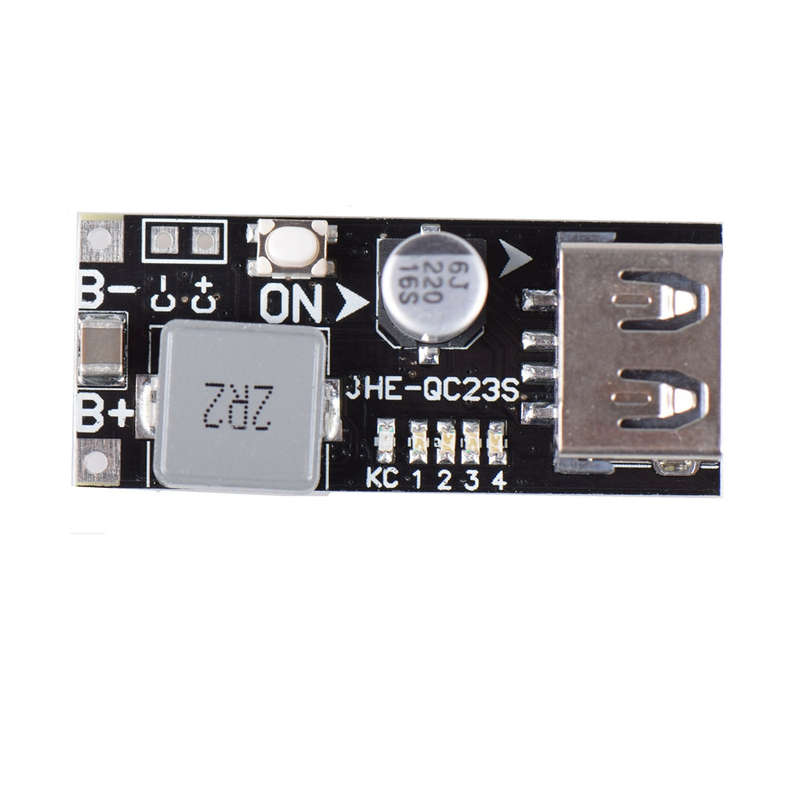

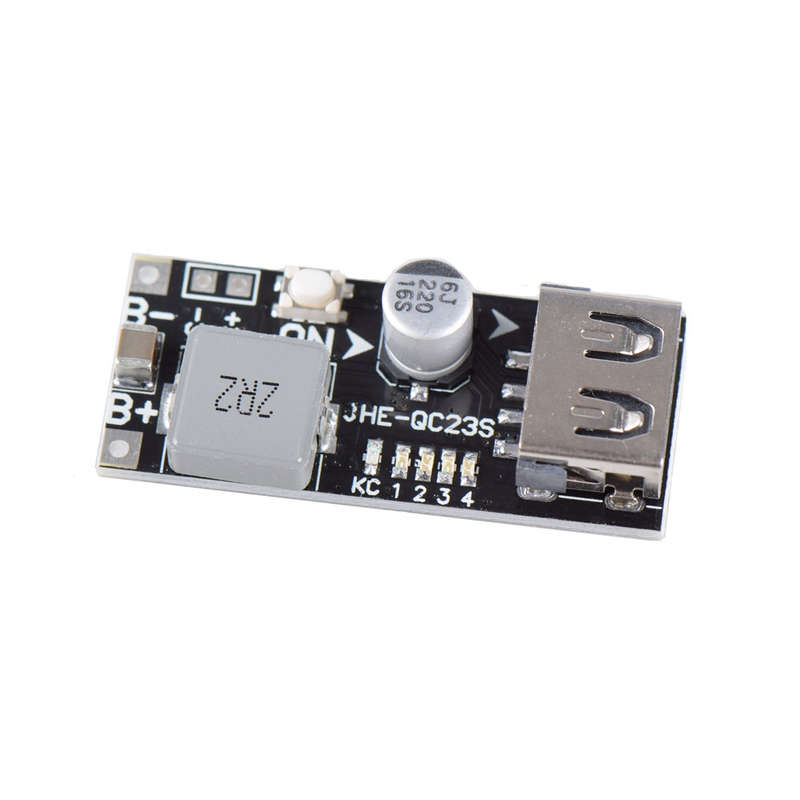

JHE-QC23S Voltage Boost Display Step Up USB Charging Module

Feature: MCIRO USB input: 5V2A (charge input, charging input does not support fast charge) Input voltage range: 3.2-4.5V (LIPO lithium battery voltage) USB-A output: 5V/3A, 9V/2A, 12V/1.5A (fast green light) Output power: up to 24W (5V@3.4A, 9V@2.5A, 12V@2A) Conversion efficiency: 90%-97% Support multiple fast charging protocols Input overvoltage, undervoltage protection Output overcurrent, overvoltage, short circuit protection IC over temperature protection Supports 1/2/3/4 LED power display, intelligent recognition of power support button wake-up.
Size: 10 x 17 x 10mm Support fast charge protocol: Qualcomm QC2.0/QC3.0 DCP (Apple Apple, for Samsung and BC1.2) MTK PE1.1/PE2.0 Huawei Fast Charge Protocol FCP/SCP

Applications: Mobile power, charging treasure Portable devices such as mobile phones and tablets

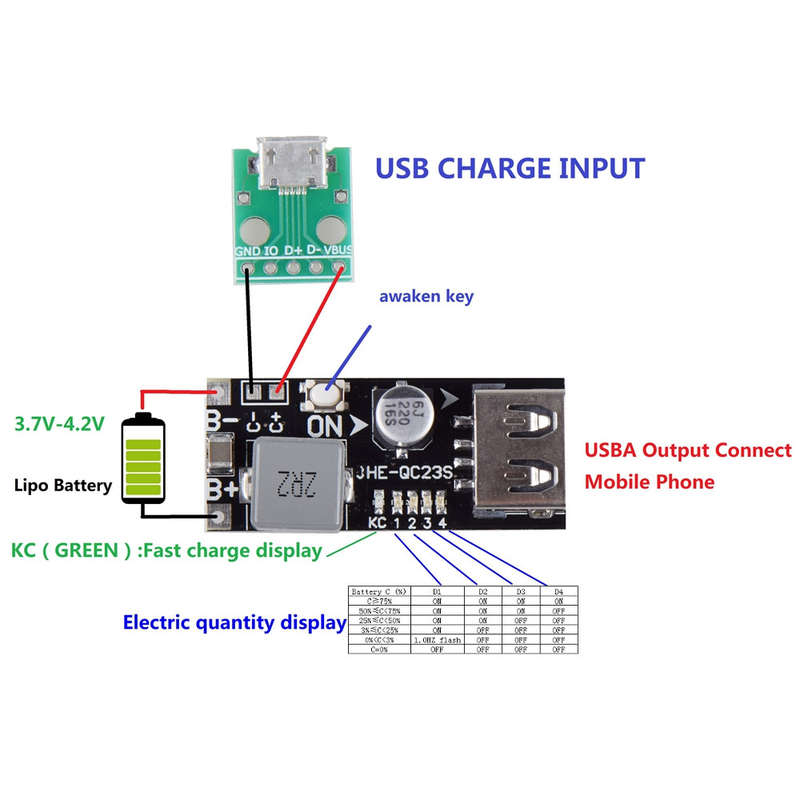

Precautions: Low power lock and activation: when the module is connected to the battery for the first time, regardless of the battery voltage, the chip is in the locked state, the lowest position of the power lamp will flash 4 times to prompt; in the non-charge state, if the battery voltage too low triggers a low power shutdown and it also enters a locked state. In the locked state, in order to reduce the static power consumption, it has no mobile phone insertion detection function and cannot be activated by pressing a button. At this time, the button action cannot activate the boost output, but the lowest level of the power lamp will flash 4 times to prompt. In the locked state, it is necessary to enter the charging state to activate the chip function. Package includes: 1 xJHE-QC23SUSB port fast charging module 1 xMICRO USB Adapter Board
