JHEMCU GF16-BMI Stack F405-BMI Flight Controller BMI270 W/OSD AT7456E BLHELI_S 2-4S 13A 4 in

Features:
Premium PCB board and electronic components, solid and durable, with long service life.

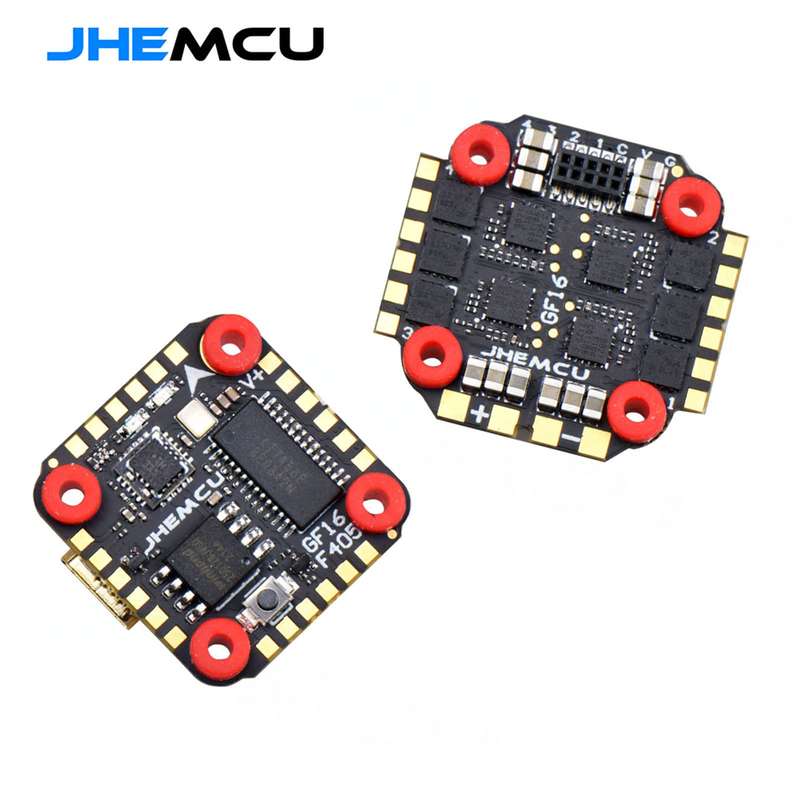

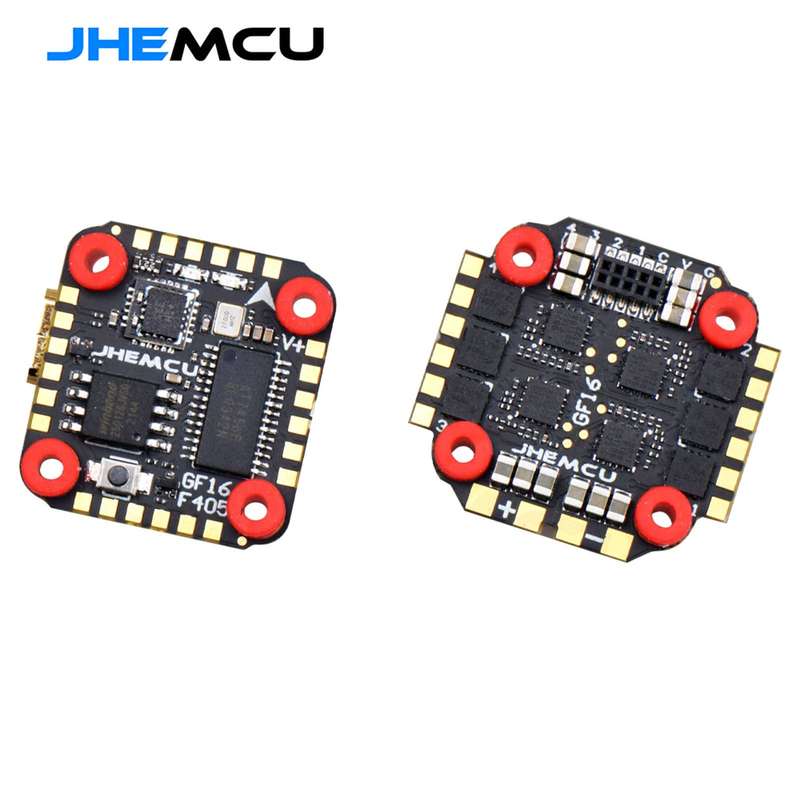

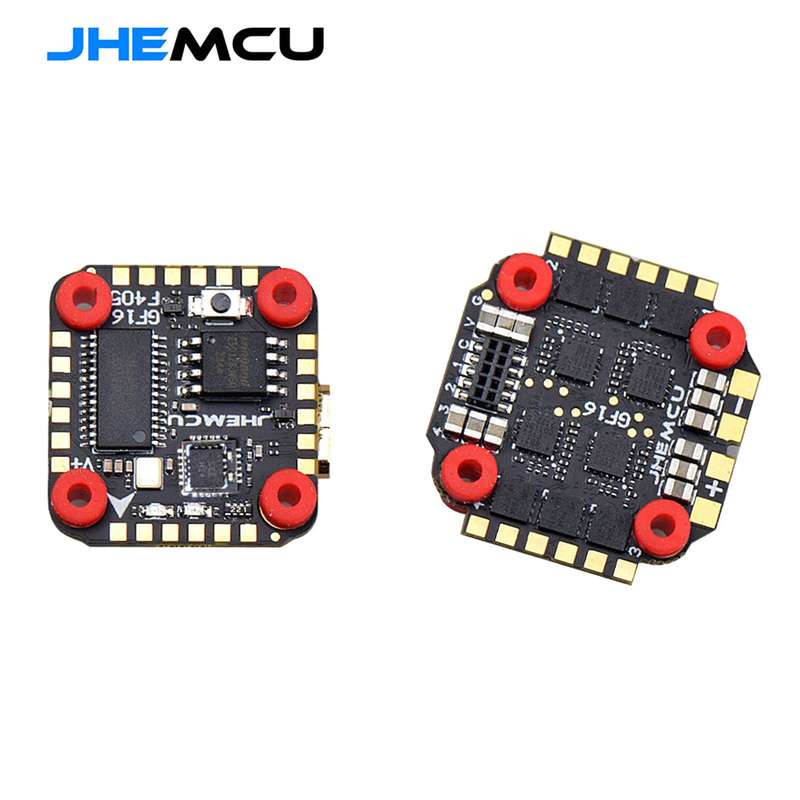

The JHEMCU GF16-BMI fly tower is the F405 fly tower of 2-4S.
There are 5 serial ports (UART1, UART2, UART3, UART4, UART6), 8 motor ports, one I2C port, one SBUS interface (the serial port used by SBUS is RX1), and the WS2812 interface is reserved.
Built-in black box 16MB and barometer, with buzzer interface and camera interface.

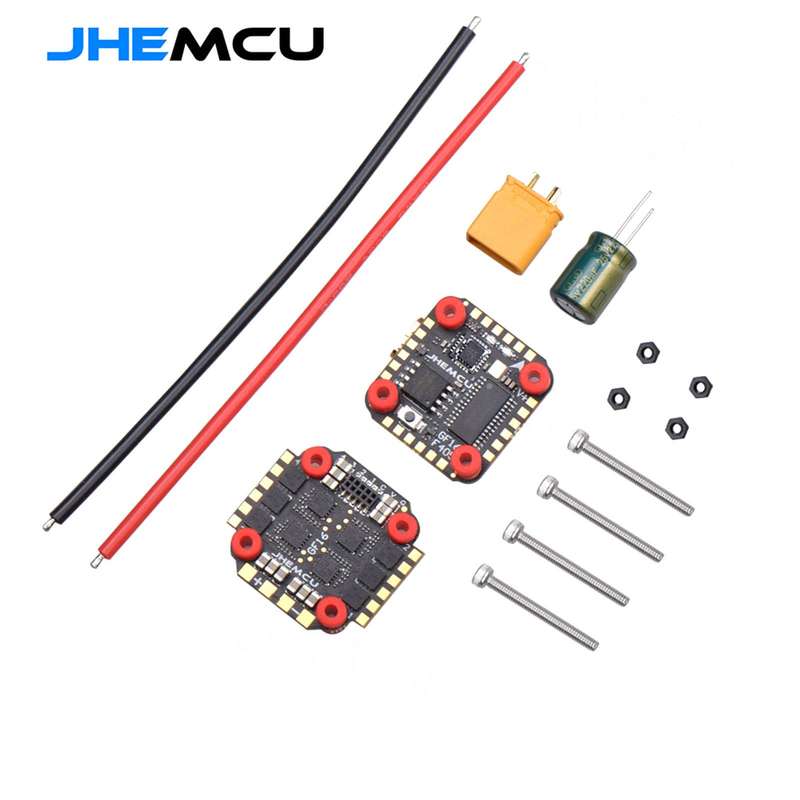

The package includes GF16-F405-BMI flight controller *1, GF16-ESC 4-in-1 ESC *1, M2*20 screw *4, M2 nut *4, M2*5 shock-absorbing ball *8, 18AWG wire *2, 220UF/25V capacitor *1, and XT30 *1.

Specifications:
Main Material: PCB Board, Electronic Component
Color: Black

Flight Control Parameters:
CPU: STM32F405
Gyroscope/Accelerometer: BMI270
OSD: AT7456E
Barometer: BMP280
Black Box: 16MB
IIC: support
BEC: 5V/3A
Number of motor channels: 8 M1-M8
UART: UART1 (RC), UART2, UART3, UART4, UART6
USB: micro USB
Size: 16*16MM M3
Receiver: ELRS(CRSF), TBS(CRSF), SBUS, IBUS, DSM2, DSMX
Support programmable LEDs such as WS2812
Support buzzer
Built-in voltage, current sensor

ESC Parameters:
1. Input voltage: 2-4S LiPo/2-4S HV LiPo
2. BEC output: none
3. Continuous working current of a single ESC: 13A*4
4. Outline ESC size: 24*25mm (including the maximum size of pads and protruding points)
5. The screw hole distance is 16*16MM, and the aperture is 3MM
6. Firmware: BLHELI_S G_H_30_16_7. HEX
7. Support Dshot600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signal
Weight: flight control + ESC = 5.8g

Package Information:ￂﾠ
Package Size: 50*45*30mmￂﾠ
Package Weight: 15g
