Compared with traditional battery, Jigawatt solid-state li-ion battery achieves both safety and performance improvement, which features high energy density, high discharge rate and high safety performance, small size and light weight.
This 6S 22,000mAh solid-state li-ion battery is only 1963g, with 251.7Wh/kg energy density, the continuous discharge rate is 5C, Max. discharge rate is 10C. It also has a long cycle life, over 600 times.
Compared with Li-ion battery, the Jigawatt Solid-state Li-ion battery has higher discharge current. The discharge interval of each battery cell is from 2.7v to 4.2v. But the discharge rate is about 5 times higher than that of Li-ion battery.
Compared with traditional lipo battery, the Jigawatt Solid-state Li-ion battery has light weight and higher energy density. Its energy density increased by 30%-35%, even 20% higher than that of high-voltage version lipo battery. So the drone endurance time will be increased by 20%-35% by using the Jigawatt Solid-state Li-ion battery.
Jigawatt Solid-state Li-ion battery supports Max.10C discharge and Max. 2C charge, there is no obvious heating during 7C discharge. The recommended discharge rate is 1C-5C to achieve the maximum discharge capacity, charging with 1C current to improve battery life.
Jigawatt Solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires long endurance time: Agriculture drone, Industrial multicopter and VTOL, Robots, Surface ship etc.
Note:
We may contact you for extra shipping cost due to some countries or areas will be considered "remote" by shipping companies.
Specification:
Voltage: 22.2V
Capacity: 22,000mAh
Continuous Discharge: 5C
Max.Discharge: 10C
Charge: 1C
Energy: 488Wh
Energy density: 251.7Wh/kg
Size: 19x6.5x7.5cm
Weight: 1963g
Plug: XT90
Working Condition Temperature:
Charge: 0～45
Discharge: -10～55
Your Purchase Includes：

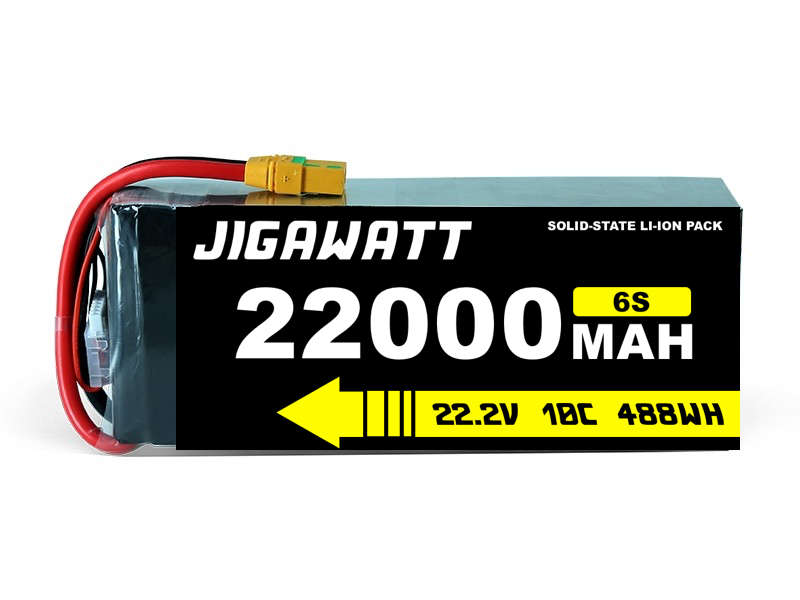

1x Jigawatt 6S 22,000mAh Solid-state Li-ion Battery
