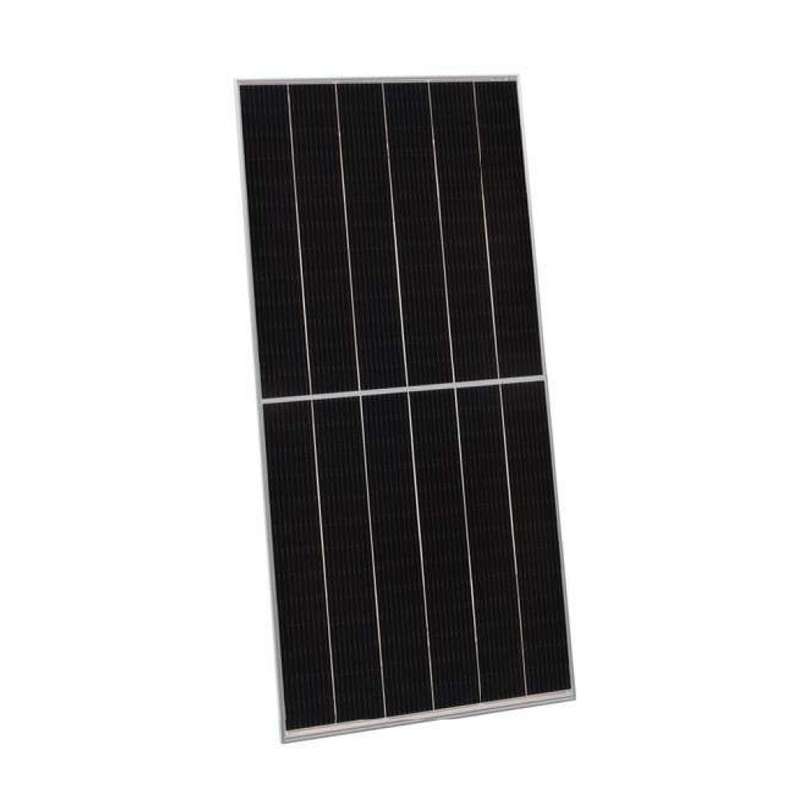

Jinko 470W Solar Panel - Mono-facial

Please note:

Delivery will take 1-2 days extra to any area outside of Gauteng
An additional charge of R195 shipping applies owing to the weight/dimensions of the item
Collection from our Johannesburg office will be at no additional charge

Features

TR technology + Half Cell: TR technology with Half cell aims to eliminate the cell gap to increase module efficiency (mono-facial up to 21.16%)
9BB instead of 5BB: 9BB technology decreases the distance between bus bars and finger grid line which is a benefit to power increase.
Higher lifetime Power Yield: 2% first-year degradation, 0.55% linear degradation
Avoid debris, cracks, and broken gate risk effectively: 9BB technology using a circular ribbon that could avoid debris, cracks, and broken gate risk effectively
Severe Weather Resistance: Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

Specifications

Maximum Power (Pmax): 470Wp
Maximum Power Voltage (Vmp): 43.28V
Maximum Power Current (Imp): 10.86A
Open-circuit Voltage (Voc): 52.14V
Short-circuit Current (Isc): 11.68A
Module Efficiency STC (%): 20.93%
Operating Temperature(℃): -40℃~+85℃
Maximum system voltage: 1000/1500VDC (IEC)
Maximum series fuse rating: 20A
Power tolerance: 0~+3%
Temperature coefficients of Pmax: -0.35%/℃
Temperature coefficients of Voc: -0.28%/℃
Temperature coefficients of Isc: 0.048%/℃
Nominal operating cell temperature (NOCT): 45±2℃

Mechanical Characteristics

Cell Type: P-type Mono-crystalline
No.of Cells: 156 (2×78)

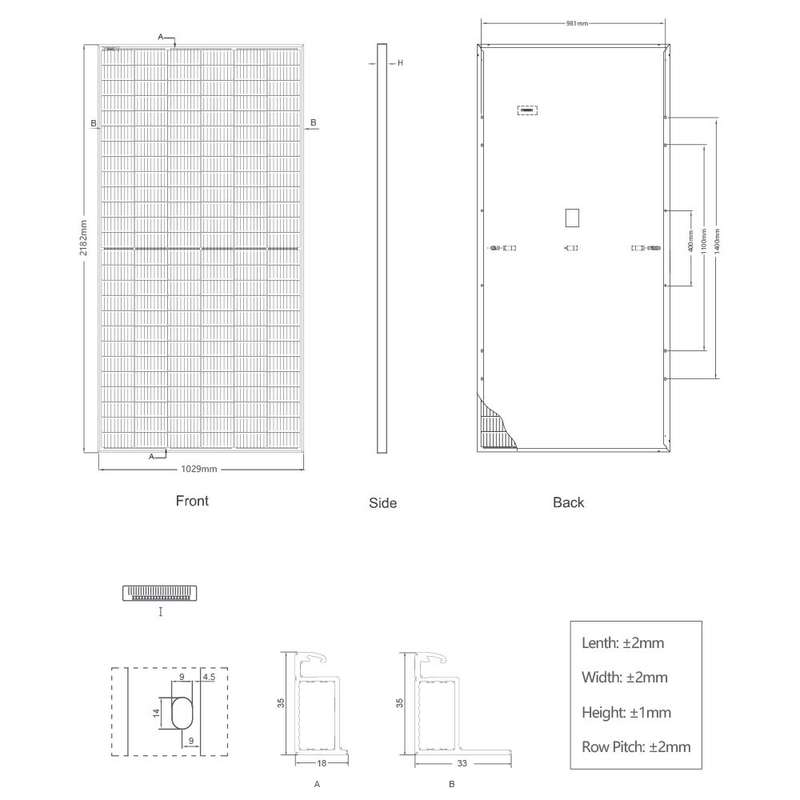

Dimensions: 2182×1029×35mm (85.91×40.51×1.38 inch)
Weight: 25.0 kg
Front Glass: 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Frame: Anodized Aluminium Alloy
Junction Box: Junction Box
Output Cables: TUV 1×4.0mm2 (+): 290mm , (-): 145 mm or Customized Length
