JINKO Cheetah 400W Monocrystalline Solar Panel

The JINKO Cheetah SOL-JI-HC72M-400 Monocrystalline Solar Panel (400W) is a state-of-the-art solar panel perfectly suited to the harsh South African conditions.

• 5 busbar solar cells improve the efficiency of modules making it perfect for rooftop installations
• Anodised aluminium alloy frame, anti-reflection coating & tempered glass front
• Low resistance half cell structure ensures higher module conversion efficiency of up to 20.38%
• Can be used in low-light conditions with the advanced textured glass & cell surface design

• 12-year product warranty & 25-year linear power warranty

Jinko Solar has established itself as one of the worlds largest solar module manufacturers, providing innovative solar products and solutions to the utility, commercial and residential markets. Striving for a sustainable future by distributing the cleanest, most efficient and economic solutions for solar energy management.

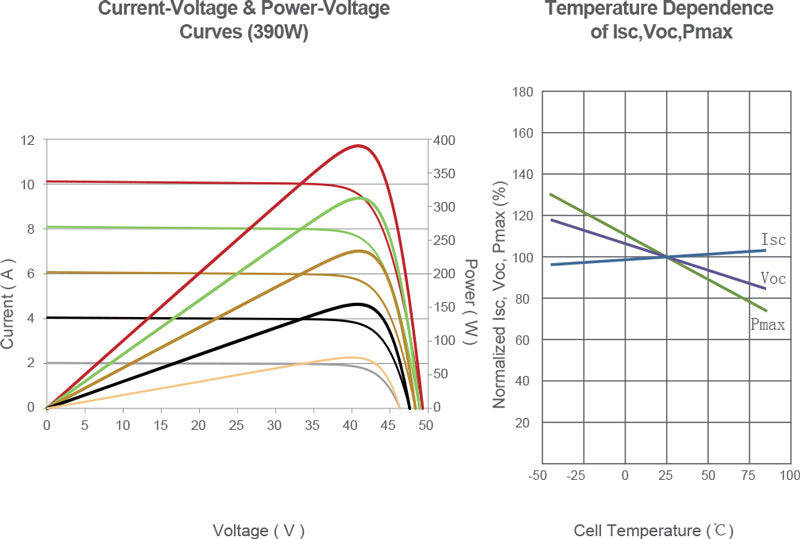

Electrical performance & temperature dependence:

Product specifications:

• Model: SOL-JI-HC72M-400
• Cell type: Monocrystalline
• Maximum power (Pmax): STC: 400W, NOCT: 302W
• Maximum power voltage (Vmp): STC: 41.7V, NOCT: 39.6V
• Maximum power current (Imp): STC: 9.6A, NOCT: 7.66A
• Open-circuit voltage (Voc): STC: 49.8V, NOCT: 48.5V
• Short-circuit current (Isc): STC: 10.36A, NOCT: 8.16A
• Module efficiency STC: 19.88%
• Operating temperature: -40 - +85C
• Maximum system voltage: 1500VDC (IEC)
• Maximum series fuse rating: 20A
• Power tolerance: 0 - +3%
• Temperature coefficients of Pmax: -0.36%/C
• Temperature coefficients of Voc: -0.28%/C
• Temperature coefficients of Isc: 0.048%/C
• Nominal operating cell temperature (NOCT): 45 2C
• Product warranty: 12 years
• Linear power warranty: 25 years
• Dimensions [l x w x d]: 2008 x 1002 x 40mm
• Weight: 22.5kg

Mechanical characteristics:

• Cell type: Mono PERC 158.75 x 158.75mm
• Number of half cells: 144 (6 x 24)
• Front glass: 3.2mm anti-reflection coating, high transmission, low iron, tempered glass
• Frame: Anodized aluminium alloy
• Junction box: IP67 rated
• Output cables: TUV 1 x 4mm², anode 290mm, cathode 145mm
