JKM NEMA17 Two Phase Hybrid Stepper Motor 40mm 3.6kg.cm 1.68A JKM NEMA17 Two Phase Hybrid Stepper Motor 40mm 3.6kg.cm 1.68A JKM NEMA17 Two Phase Hybrid Stepper Motor 40mm 3.6kg.cm 1.68A JKM NEMA17 Two Phase Hybrid Stepper Motor 40mm 3.6kg.cm 1.68A JKM NEMA17 Two Phase Hybrid Stepper Motor 40mm 3.6kg.cm 1.68A JKM NEMA17 Two Phase Hybrid Stepper Motor 40mm 3.6kg.cm 1.68A JKM NEMA17 Two Phase Hybrid Stepper Motor 40mm 3.6kg.cm 1.68A JKM NEMA17 Two Phase Hybrid Stepper Motor 40mm 3.6kg.cm 1.68A JKM NEMA17 Two Phase Hybrid Stepper Motor 40mm 3.6kg.cm 1.68A
JKM NEMA17 Two Phase Hybrid Stepper Motor 40mm 3.6kg.cm 1.68A JKM NEMA17 Two Phase Hybrid Stepper Motor 40mm 3.6kg.cm 1.68A JKM NEMA17 Two Phase Hybrid Stepper Motor 40mm 3.6kg.cm 1.68A JKM NEMA17 Two Phase Hybrid Stepper Motor 40mm 3.6kg.cm 1.68A
JKM NEMA17 Two Phase Hybrid Stepper Motor 40mm 3.6kg.cm 1.68A
+5

JKM NEMA17 Two Phase Hybrid Stepper Motor 40mm 3.6kg.cm 1.68A

20 available / new
R548.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
szulou3514
93.45 % Positive ratings
Buyer protection
How you're covered
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643382059

Desctiption:

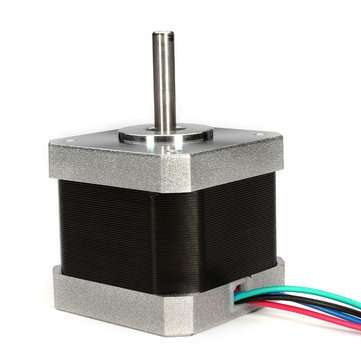

JKM NEMA17 Two Phase Hybrid Stepper Motor 40mm 3.6kg.cm 1.68A

Specification:
Model: 42BYGHW609
Motor length: 40mm
Diameter of axle: 5mm
The front shaft length: 24mm

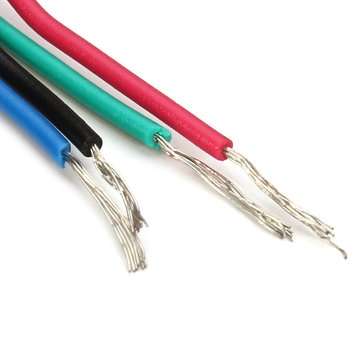

Outgoing line: 300mm (Plug is not included)

Electrical Specifications:

Model

Step Angle ( ﾣ )

Motor Length (mm)

Rate Voltage (V)

Rate Current (A)

Phase Resistance ()

Phase Inductance (mH)

Holding Torque (kg.cm)

Lead Wire (NO.)

Detent Torque (g.cm)

Motor Weight (KG)

42BYGHW609

1.8

40

3.4

1.68

1.65

3.2

3.6

4

150

0.28

General Specifications:

Step Accurency

Temperature RIse

Ambient Temperature Range

Insulation Resistance

Dielectric Strength

±5%

80a Max.

20 a ~+50a

100M Min.50V DC

500V AC 1minute


Features:
High Start Speed.
Offline command input terminal.
High holding torque at high speed.
Average current control, 2-phase sinusoidal output current drive.
A stepper motor is an electric motor that is able to create sharp movements.
It is widely used in 3D printer, precision telescope, pick and place machines, linear actuators,etc.

Package Included:
1x Stepper Motor
