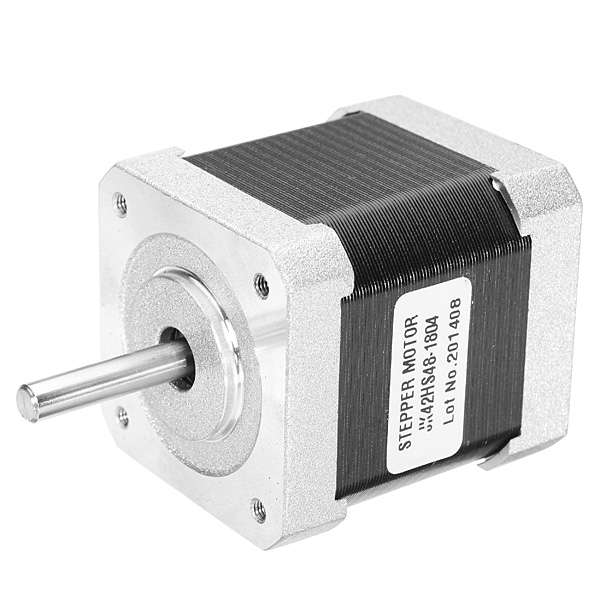

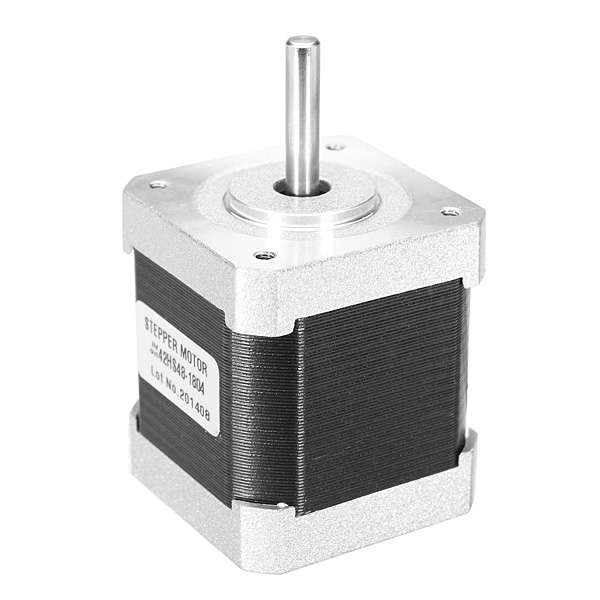

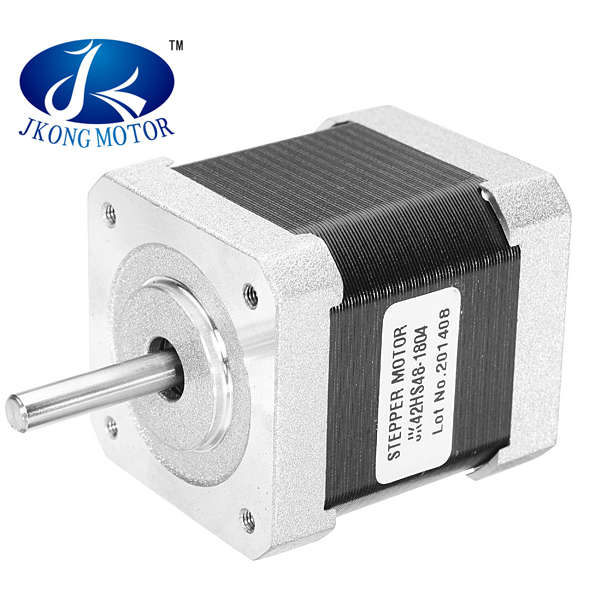

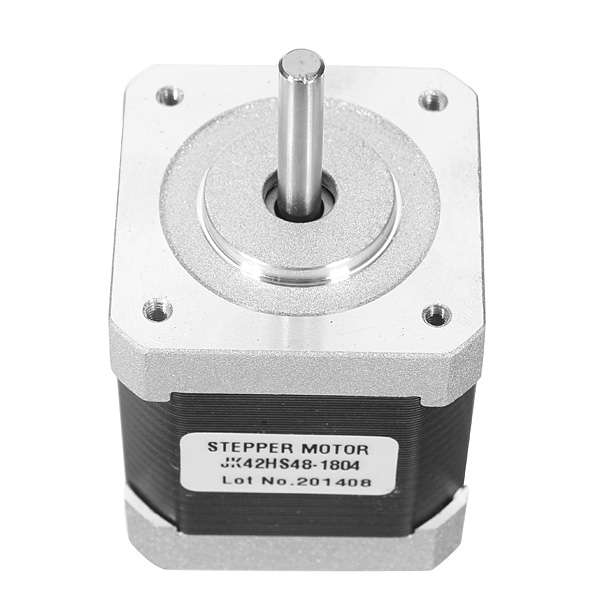

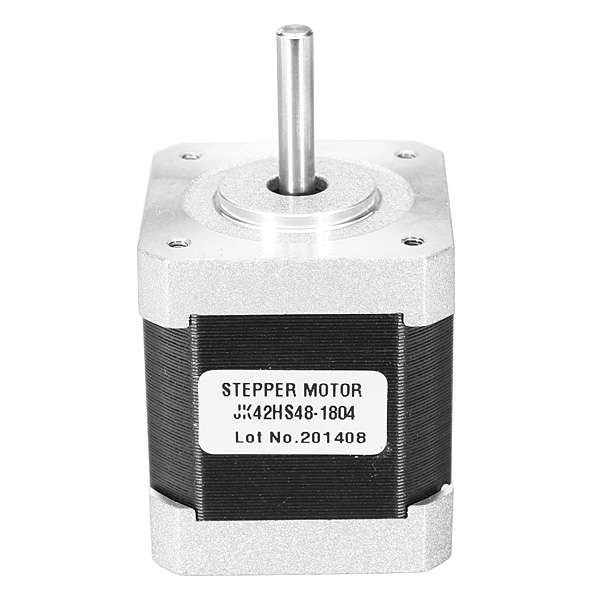

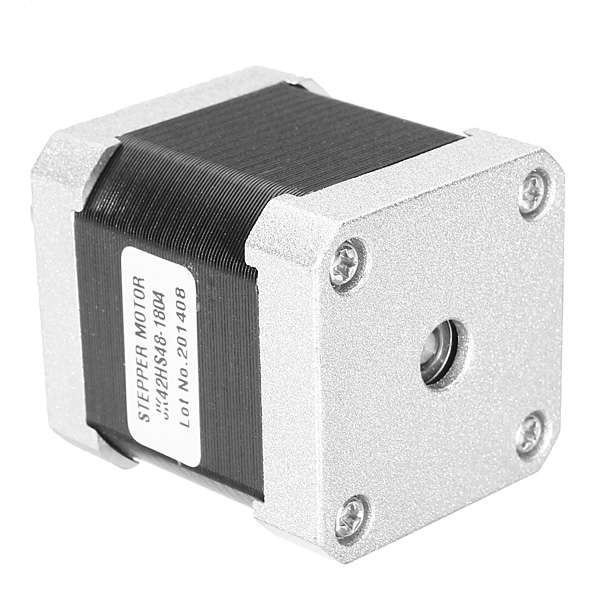

JKM NEMA17 Two Phase Hybrid Stepper Motor 78 Oz-in/48MM/1.8A
New
R285.10
Closed
19 Jul 16 14:02
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 1 business day. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Buyer Protection
How you're covered
Get it now, pay later
Product information
Condition:
New
Location:
South Africa
Customer ratings:
Product code:
942110
Bob Shop ID:
234343130
Description:
JKM NEMA17 1.8°42 Two Phase Stepper Motor 78 Oz-in/48MM/1.8A
Specification:
Brand: JKM
Model: JK42HS48-1804

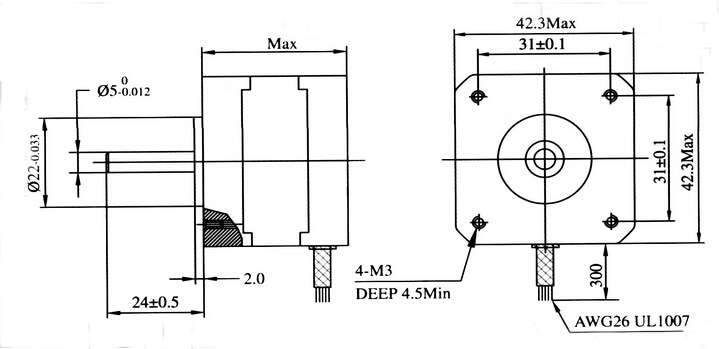

Motor length: 48mm
Diameter of axle: 5mm
The front shaft length: 24mm
Size: 42mm * 42mm * 48mm
Holding Torque: 78oz.in

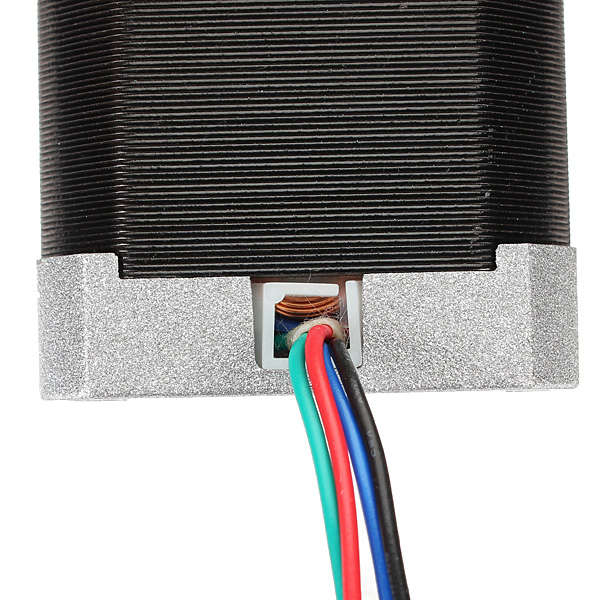

Outgoing line: 300mm (Plug is not included)
Certification: Certification: CE,ROHS

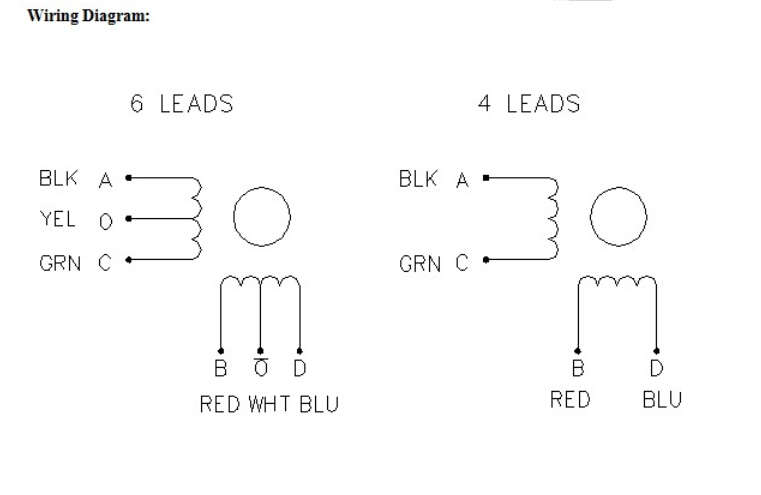

Connection mode: Black: A+, Green: A- Red: B+, Blue: B-
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect.
Genaral Specification:
Electrical Specification:
Package included:
1x Stepper Motor
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
JKM NEMA17 1.8°42 Two Phase Stepper Motor 78 Oz-in/48MM/1.8A
Specification:
Brand: JKM
Model: JK42HS48-1804
Motor length: 48mm
Diameter of axle: 5mm
The front shaft length: 24mm
Size: 42mm * 42mm * 48mm
Holding Torque: 78oz.in
Outgoing line: 300mm (Plug is not included)
Certification: Certification: CE,ROHS
Connection mode: Black: A+, Green: A- Red: B+, Blue: B-
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect.
Genaral Specification:
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80¿¿¿max |
| Ambient Temperature | -20¿¿¿~+50¿¿¿ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
Electrical Specification:
| Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm | g.cm | Kg | |
| JK42HS48-18041 | 1.8 | 48 | 1.8 | 1.65 | 3.2 | 5.4 | 4 | 120 | 68 | 0.35 |
Package included:
1x Stepper Motor
