JKM NEMA23 1.857 Hybrid Stepper Motor Two Phase 56mm 1.26N.m 2.8A

20 available / new

R906.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3467

93.38 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641126789

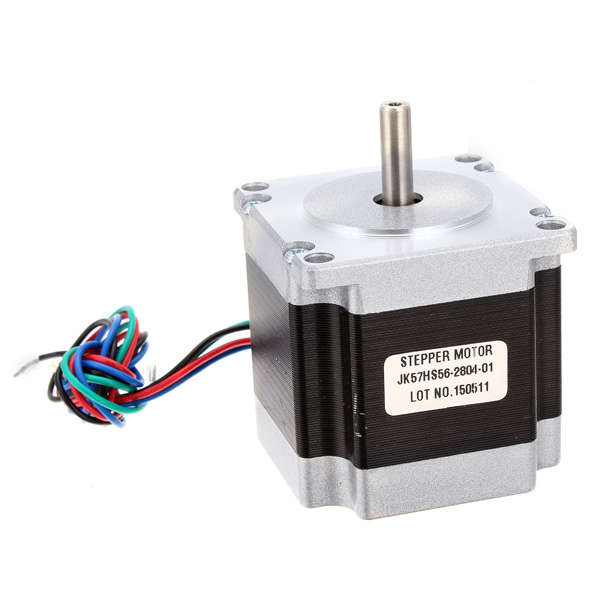

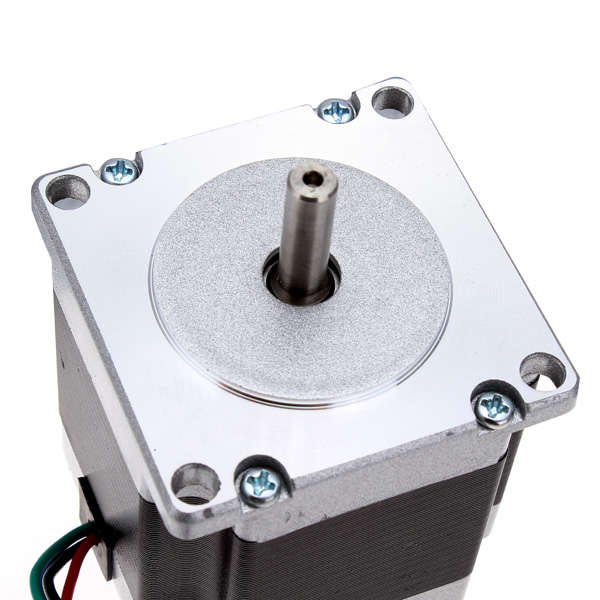

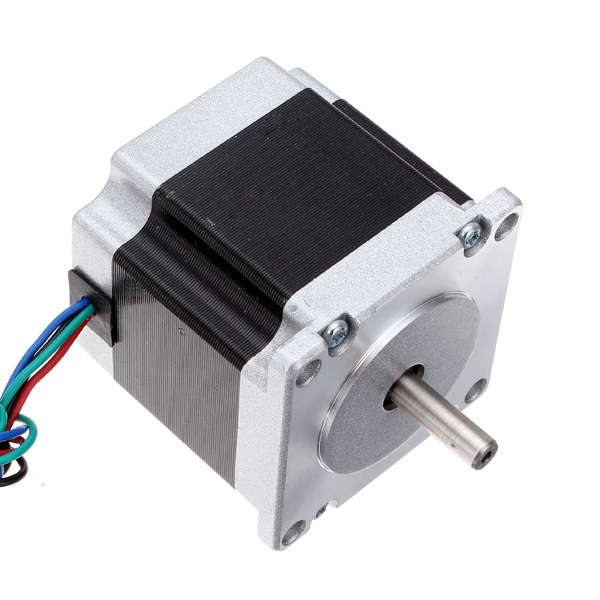

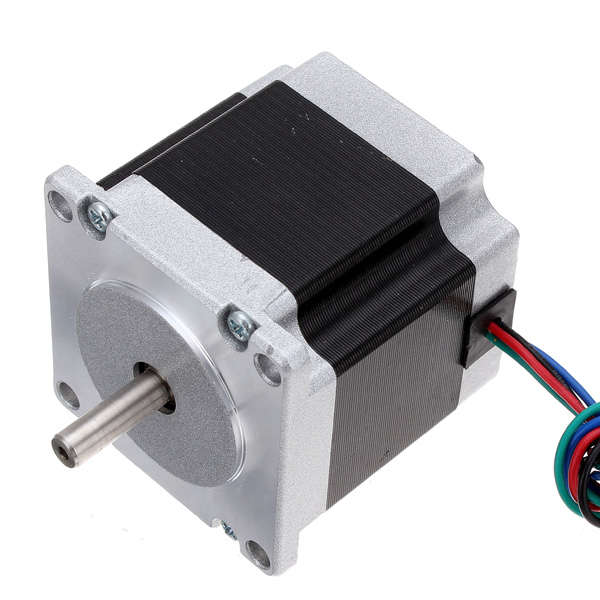

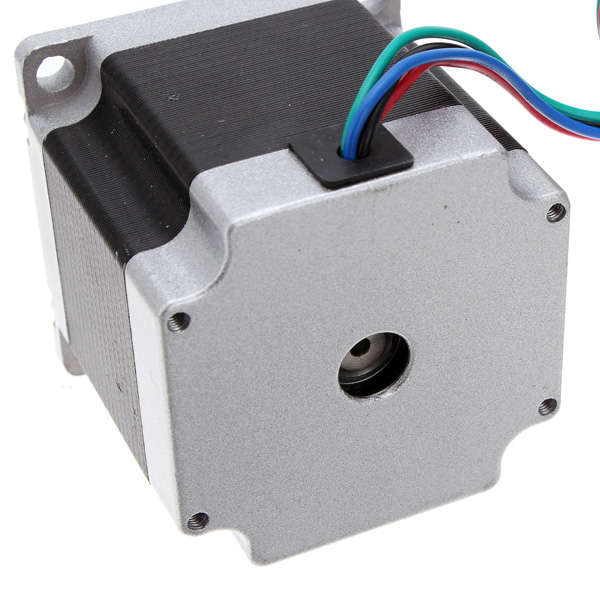

Description: JKM NEMA23 1.857 Hybrid Stepper Motor Two Phase 56mm Motor1.26N.m 2.8A

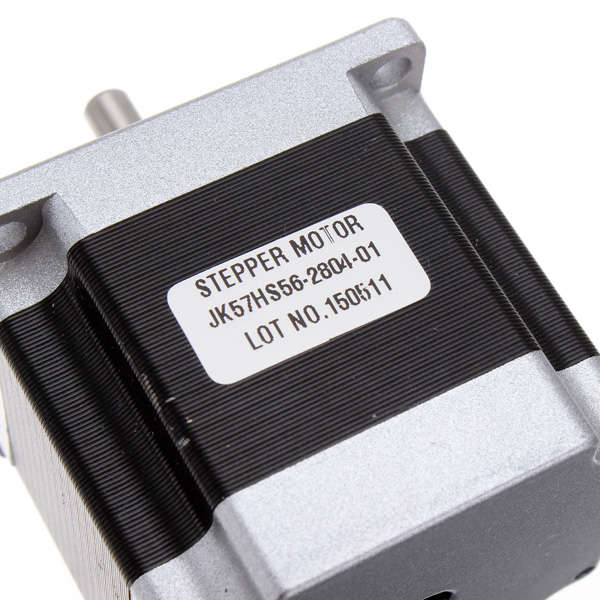

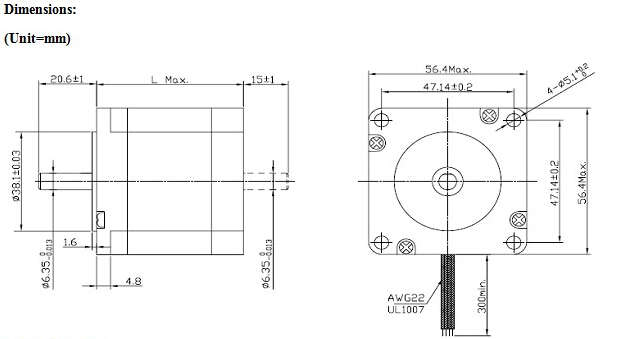

Specification: Brand:JKM Model:JK57HS56-2804 Motor length: 56mm Diameter of axle: 6.35mm The front shaft length: 20.6mm Size: 57mm x 57mm x 56mm Outgoing line: 300mm (Plug is not included) Certification: CE Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, ect.

Genaral Specification:

Item	Specifications
Step Angle	1.8
Temperature Rise	80amax
Ambient Temperature	-20a~+50a
Insulation Resistance	100 MMin.,500VDC
Dielectric Strength	500VAC for 1 minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	75N (20mm from the flange)
Max. axial force	15N

Electrical Specification:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( )	(L)mm	A		mH	N.m	No.	g.cm	g.cm	Kg
JK57HS56-2804	1.8	56	2.8	0.9	2.5	1.26	4	350	280	0.68

Features: High holding torque at high speed. A stepper motor is an electric motor that is able to create sharp movements. It is widely used in 3D printer, monitor / Medical/Textile/ Packaging Machinery, Stage Lighting,ect.

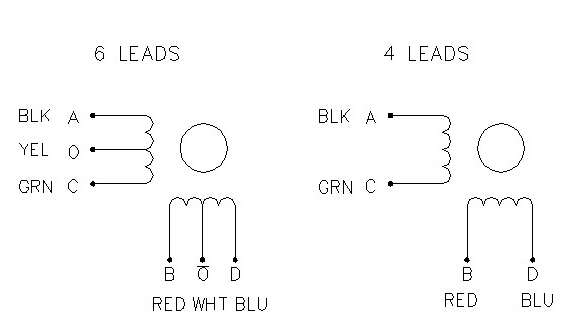

Wiring Diagram:

Package Included: 1x Hybrid Stepping Motor

More Details:
