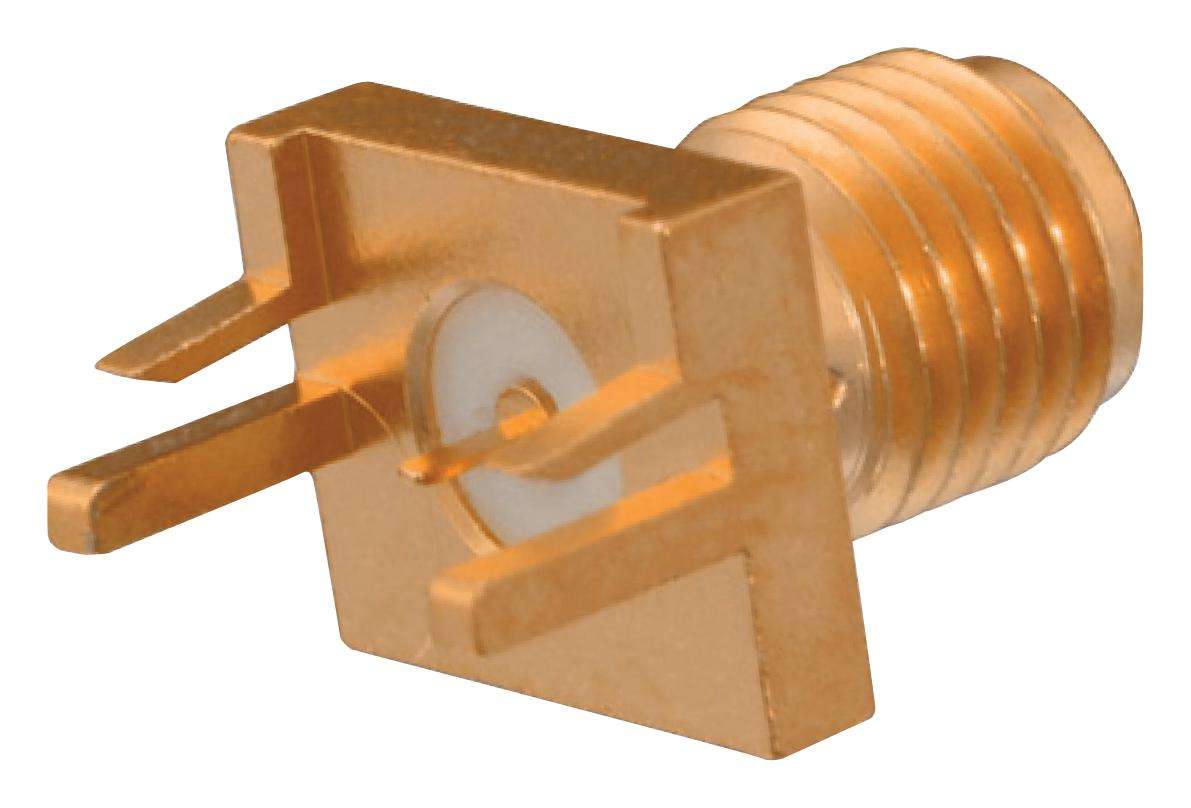

Johnson (142-1701-851) RF / Coaxial Connector, Tab Contact, SMA Coaxial

RF / Coaxial Connector, Tab Contact, SMA Coaxial, Straight Jack, Board Edge /End Launch, 50 ohmProduct OverviewThe 142-1701-851 SMA Self-Fixture End Launch Jack Assembly with tab contact fromJohnson-Cinch Connectivity Solutions attaches directly to a coplanar waveguidecircuit board and operates up to 18 GHz with good return loss values. Thisenhanced end launch connector properly align and hold the center contact of acoaxial connector to the circuit board plane without the need for specialfixtures. This is done with specially designed connector legs that tightly gripthe board substrate until the soldering operation to couple the two is complete.Its in-line straight connector design minimizes reflection as compared toright-angle PC mount transition. The perfect solution for microwave engineerswho are tasked to transition microwave energy from coaxial to planartransmission line structures on high frequency board substrates. The idealconnector for design engineers who are looking to cut manufacturing costs andcomplexity out of their circuit board system.Gold plated brass bodyTab female (socket) beryllium copper contact with gold platingPTFE insulator50 Ohm impedance0-18 GHz frequency rangeWorking voltage 335 VRMS max. at sea levelDielectric withstanding voltage 1000 VRMS min. at sea levelInsulation resistance 5000 Mohms min.Temperature range -65°C to + 165°CMating cycles 500 min.Solder termination to PCB1.498mm (0.059") board thicknessSpace saving and easy to use - no screws or adaptorsApplicationsAutomated Test Equipment, Cellular , Broadband Amplifiers, GPS Antennas, HighSpeed Routers and Switches, Microwave Filters, Remote Sensing and Metering,Radar Systems, Radio Frequency Identification (RFID), WirelessProduct InformationConnector Type: SMA CoaxialConnector Body Style: Straight JackCoaxial Termination: Board Edge / End LaunchImpedance: 50ohmCoaxial Cable Types: -Contact Material: Beryllium CopperContact Plating: Gold Plated ContactsFrequency Max: 18GHzConnector Mounting: PCB MountProduct Range: SMA Self Fixture End Launch Series
