NVR Kit JORTAN w / 8 Wireless
Cameras Cameras do not connect to a Wireless Router because they connect directly to the NVR via Wireless.
- It is not necessary to configure IP in the cameras for use in Wireless mode.
- Remote Access via PC and Mobile: http, DDNS, P2P, RTSP, TCP / UDP
Input: 8 IP channels on D1 / 960H / 720P / 960P
HDMI output: 1x, 1024x768, 1366x768, 1440x900, 1920x1080
VGA output: 1x , 1024x768, 1366x768, 1440x900, 1920x1080
Playback: 8 channels
Recording: Manual, scheduled, motion detection, alarm
Storage: 1 SATA
disk Maximum disk capacity: 4TB
Network interface: 1 RJ45 10M / 100M, 2 Wifi Antennas
Interface: NVR as Wifi Router for Cameras
USB Interface: 1x USB2.0 (Mouse)
Power Consumption: 5W
Input: DC12V
Operating Temperature: -10ºC- + 55ºC
Dimensions (mm): 258mm × 210mm × 42mm
Humidity: 10% -90% RH
Cameras:
- Features :
* Maximum resolution of 1280x960 @ 15fps configurable via browser or CMS
* Wireless connection 2.4GHz or via 10 / 100Mbps cable
* Private area selection not to be monitored
* IR range of 40 meters
* LEDs: 3x 12mm
* 4mm lens
* Easy installation
- Technical Specifications:
Connection: RJ45 or Wifi 802.11b / g / n
Image Sensor: CMOS HI3518E
Processor: OV 9712
Sensor Size: 1/3 "1.3 Megapixels
Lens Focal Length: 4mm
Shutter Time: Auto 1 / 5-1 / 15,000 Sec
Video System: NTSC
Maximum Resolution: 1280x960 @ 15fps or 1280x720 @ 30fps
Video Compression: H.264
Bit Rate: 32-16384kbps
Type of Bits Rate: CBR / VBR
Infrared Filter: IR-CUT Real
Number of LEDs: 3x 12mm
Night Range: 40 meters
Night Vision: Black and White, Color or Auto
Minimum Illumination: Colors: 0.1 Lux B / W: 0.01 Lux IR ON)
Motion Detection: Yes
Noise Ratio:> 39.1dB
Audio Compression: G.711
3D-DNR: Yes, Automatic
White Balance: Yes - Automatic / Manual (AWB)
Light Compensation: Yes - Automatic / Manual (BLC)
Wide Range Dynamic: Yes - Automatic / Manual (Real WDR)
Iris: Yes - Automatic
Internal Usage: Yes
External Usage: Yes
Connection Type: Wireless 2.4GHz 802.11b / g / n connection or via network cable
Protocol: N1
Remote Access : http, DDNS, P2P, RTSP
Management: Via CMS Software and ONVIF compliant devices Compatible
Browsers: IE 6.0 or higher and Firefox
Power: DC 12V ± 10% / 1A
Operating Temperature: -10ºC ~ 50ºC / Humidity: -30 ~ 80%
Certifications: CE, FCC, RoHS

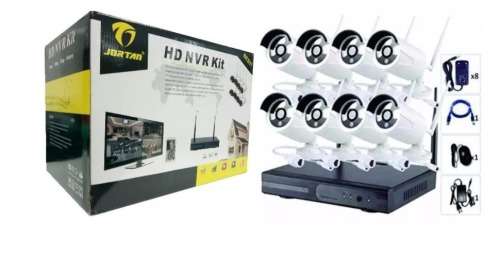

Items Included:
01x NVR 8 Channels
01x Power Supply NVR
08x IP Cameras 1.3mp Wireless with Detachable Antenna
08x Power Supply for Automatic Bivolt Camera
