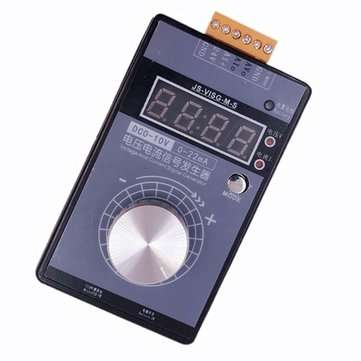

JS_VISG_M-S-N Analog 0-5 V-0 V-10V 4-20mA Signal Generator Current Adjustable Voltage Pocket Simulat

Features:
a Supports 24 V power supply through wiring terminals and 5 V USB port, can be used indoors or outside the industrial site. a Rechargeable 1000 mAH 3.7 V battery integrated in the interior, very convenient to use. a High Precision 0.01 V, MA output and value of the output signal of the LED display with precision. a Output range: passive or active 0-20mA, 0-10 V, etc .; The output range and precision are programmable and adjustable. a Small pocket size, place it in your pocket, very comfortable to carry, saves costs.
Specifcations:
Current output:0-22mA adjustable Current output accuracy:0.01mA,can be calibrated Voltage output:0-10V DC abjustable Voltage output current:max.100mA,have short-circuit protection LED display:Digits of Digital screen of 4 digits, Two Decimal; Operating temperature:-20 to +50a Storage temperature:-25 to +80a
Power Supply:Lithium battery capacity of 3.7 V 1000 mAh (not included) Note : See the details below for specific parameters.


Package includes:

1 xSignal Generator

Detail pictures:
