JSD-520 24V Car Stereo Radio MP3 Player Auto Audio bluetooth Hands-free AUX SD USB FM

20 available / new

R822.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3533

93.36 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643382106

Feature:
1.Elegant carry case design, with clear LCD display, LED security light
2.Support MP3/WMA/WAV/APE file playback from USB/SD Card (Maximum support 32GB)
3.Support FM Radio, automatic frequency adjustment
4.Support hands-free calls, answer or hand up the phone after connect the radio via bluetooth
5.bluetooth function, play music from your phones via bluetooth
6.Volume Control/ Real Time Clock Function/ FM Radio/ Electronic Preset Equalizer Control
7.Auto memory preset store
8.Remote Control
9.Mounting Accessories included

Specification:

Model:	JSD-520 bluetooth Type
Panel Size:	188 x 150 x 58mm (WideDeepHeight)
Installation Dimension:	178 x 150 x 50mm (WideDeepHeight)
Quantity:	1 piece
Power Supply:	24V
Max. Power Output:	60W4
FM Frequency Range:	87.5-108.0MHZ
Back Light:	Blue
English Manual:	Yes

bluetooth Connecting Method:
Turn on your phone bluetooth function, search on and connect the CAR/btmp3 item,enter password 0000 (if needed),
press MODE button to the bluetooth function,then the MP3 Player is now available for use.

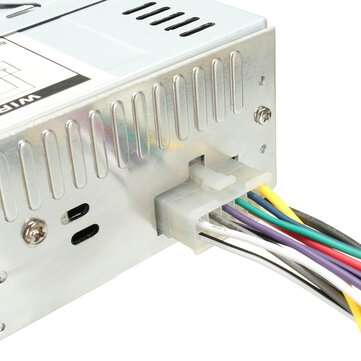

Wiring Guide:
Testing Methods:
1.Twist the RED and YELLOW wire together and connect to the anode. The BLACK wire connect to the cathode.
2.Connect one piece of the wires to the horn, do not touch the wires each other.
Installing Methods:
please DO NOT electrify the machine before you connect the wires, otherwise it will damage the machine.
1.The YELLOW wire connect to the anode of accumulator, while the BLACK cathode.
2.The RED wire connect to the car key ignition.
3.If your cars have any subwoofers or exterior antennas, you also need to connect the BLUE wire.
4.Otherwise wrap the BLUE wire with adhesive plaster for other car models.
5.Horn has positive and negative electrode, connect them according to the methods.
