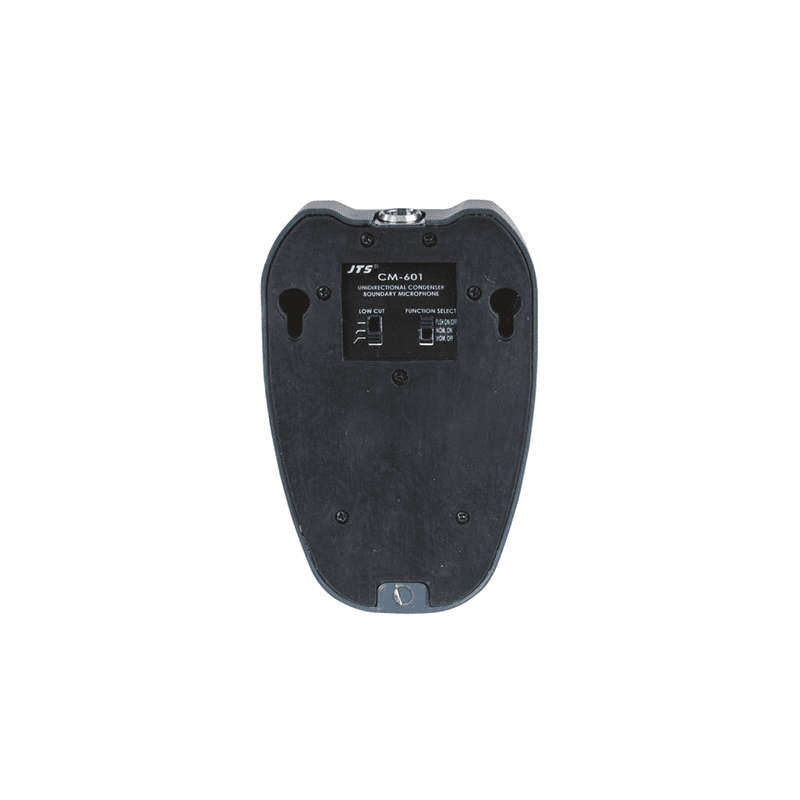

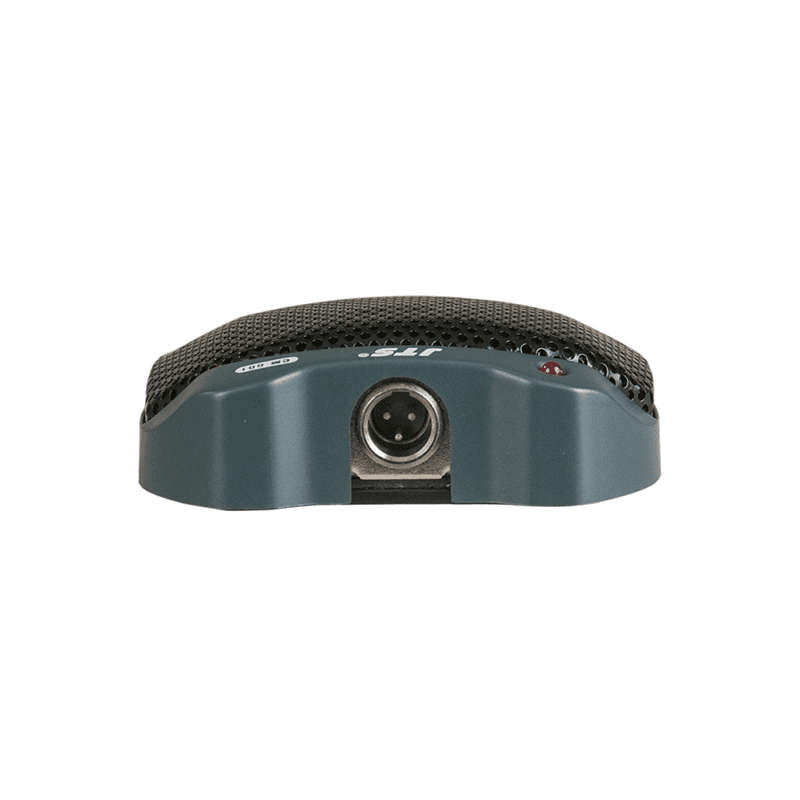

JTS CM-601 BOUNDARY MIC

The CM-601 is a semi-cardiod Electret boundary microphone. features Configurable push-button (Push To Talk, Push To Mute or switching function) Standby LED. Elastic cartridge suspension for preventing impact sound and structure-borne noise. For theatrical performances, discussions, conferences and in churches. Requires Phantom power supply DC 48 V. Supplied With 6 m connection cable, 3-pole XLR

Frequency response: 30Hz - 12kHz

S/N Ratio: 67dB

Output Connector: 3 Pin Male Mini XLR

Power Supply: 12-52V DC Phantom Power

Microphone Type: Electret Condenser

Current Consumption: 6mA

Directional Pattern: Half-Cardioid

Low Frequency Roll-Off: 80Hz - 120Hz

Impedance: 100

Sensitivity (at 1kHz): 53±3 dB* (2.23mV) 0dB

Max SPL for 1% THD: 125dB

Switches: Push Control On/Off, Function Selection Push On/Off, Momentary On/Off, Low Cut Selection
