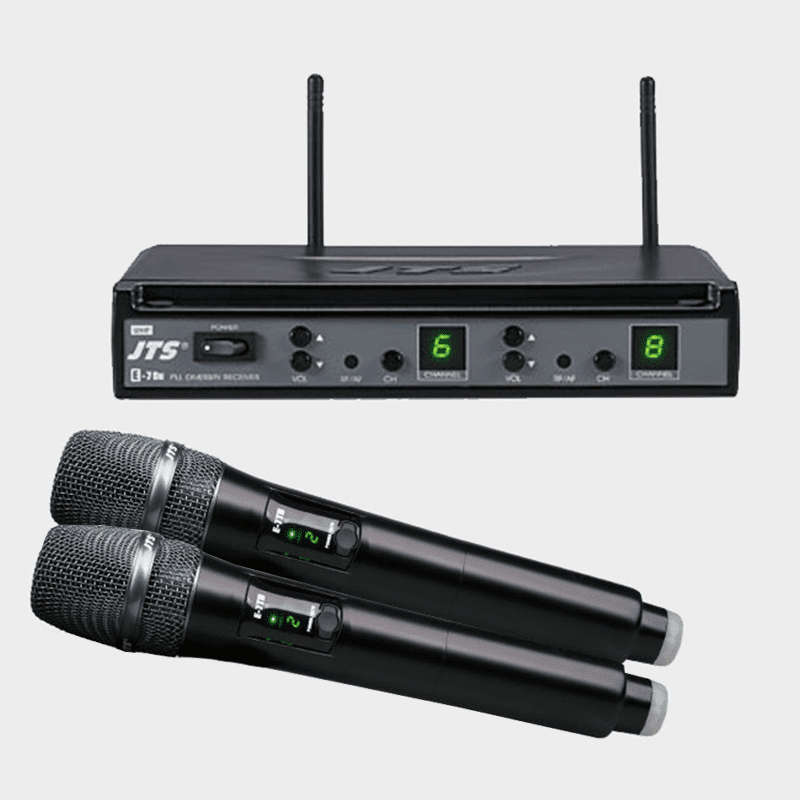

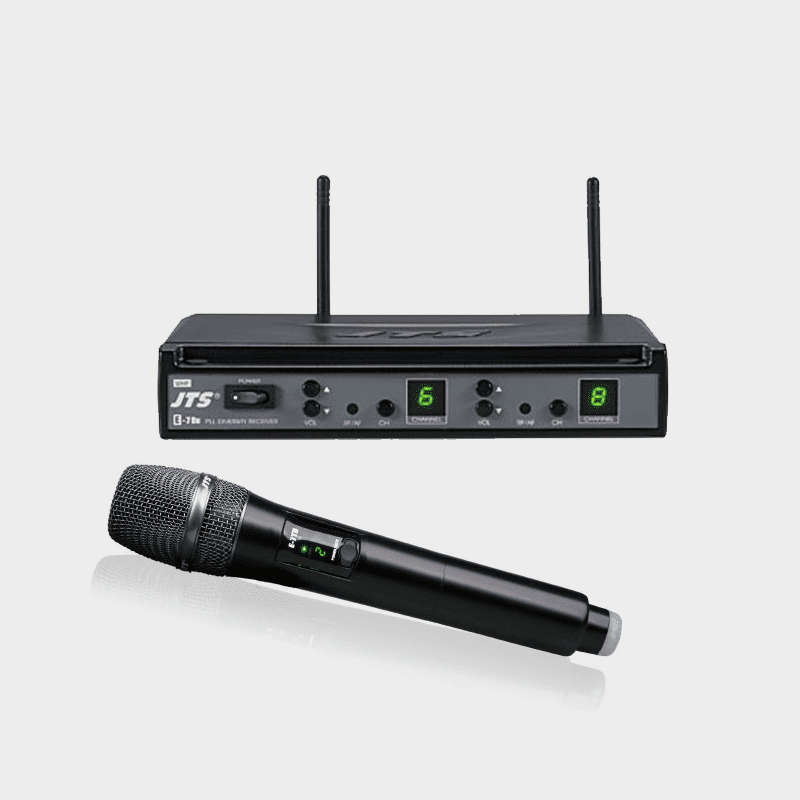

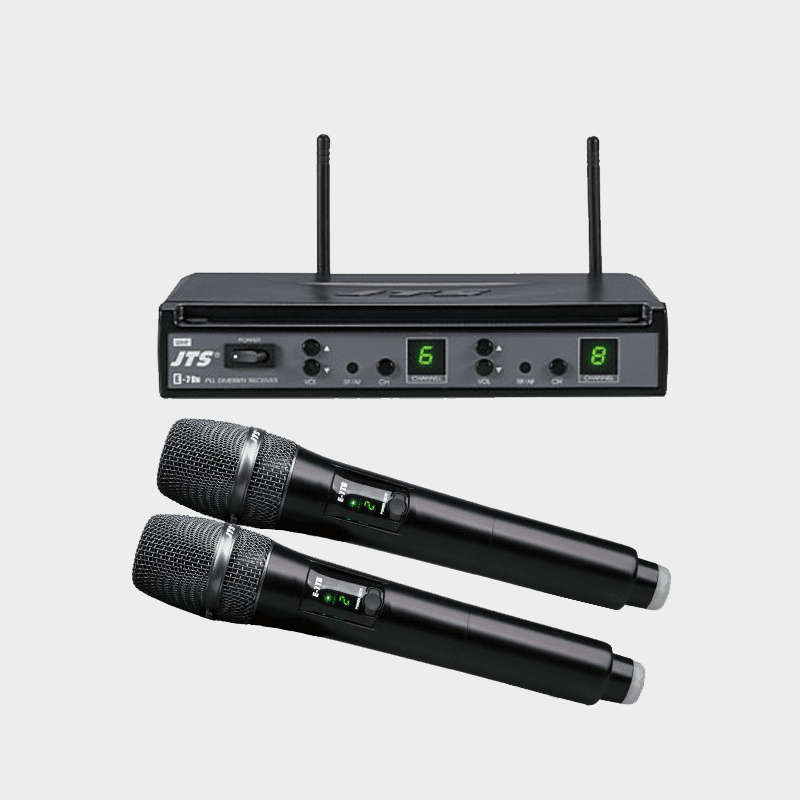

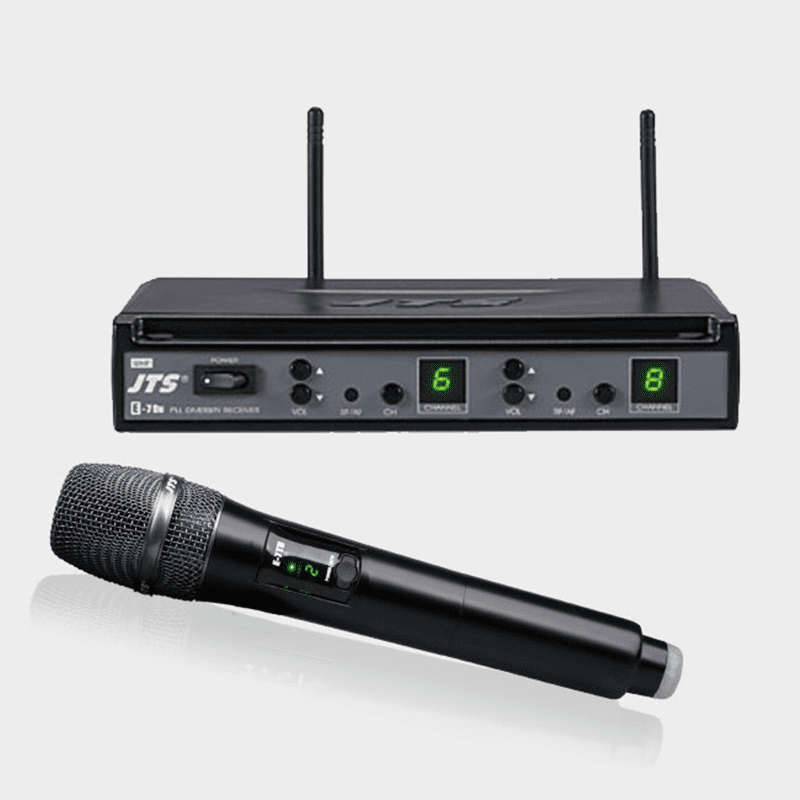

The E-7R / E-7RT / E-7Du / E-7DuT wireless microphone system is of latest wireless circuit design. It provides 16 selectable channels. Stable RF link and good audio performance are assured. 7 segments display makes operation easy. The system is of very affordable price.

Frequency Preparation : PLL Synthesized Control

Carrier Frequency Range: 470~960 MHz

S/N Ratio : >100dB

T.H.D. : <0.6%@1KHz

Display Contents: Channel, RF/AF Status

Controls: Power On/Off, Channel Selecting, Audio Level

Audio Output Level: -15dB

AF Output Impedance: 600

Squelch : Pilot Tone & Noise Mute
Operation Voltage : 12V 150mA (E-7R) / 12V 250mA (E-7Du)

Output Connector : 1 Ø6.3mm balanced phone jack

Dimension (mm) : 210mm(W)* 40mm(H)* 170mm(D)

Stability: Frequency <±10KHz

Deviation: : ±48KHz (Peak)

Display Contents : Channel, Battery Status, Power On/Off, Mute

Controls: Power On/Off, Channel, Mute

Spurious Emissions : <-50 dBC

Audio Frequency Response : 50Hz~18KHz

Battery: UM3, AA Alkaline x2
