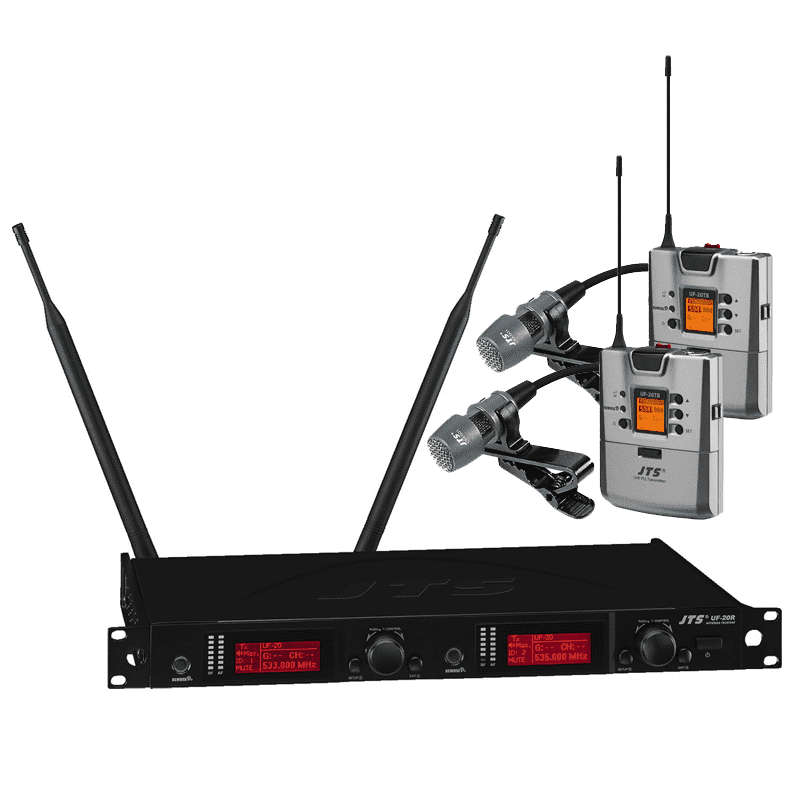

JTS UF-20R/UF-20TB+CM-501 DUAL LAPEL MICROPHONE TRUE DIVERSITY UHF 624-694MHz

Perfect solution for stage applications of high requirements due to an excellent flexibility and reliability.
The device impresses with a convenient setup function, REMOSET technology, 75 MHz bandwidth, 3,000 frequencies which can be selected as desired and additional professional features, e.g. active carrier analysis method.

Carrier frequency range : 530-605 MHz

Audio frequency range : 50-18,000 Hz

Channels : 2

THD : < 0.5%

Dynamic range > : 108 dB

Admiss. ambient temp. : 0-40 °C

Audio signal receiver : 100 mV XLR

Power supply receiver : 100-240 V/50-60 Hz/25 VA

Width receiver : 480 mm

Height receiver : 44 mm

Depth receiver : 214 mm

Weight receiver : 2.9 kg
