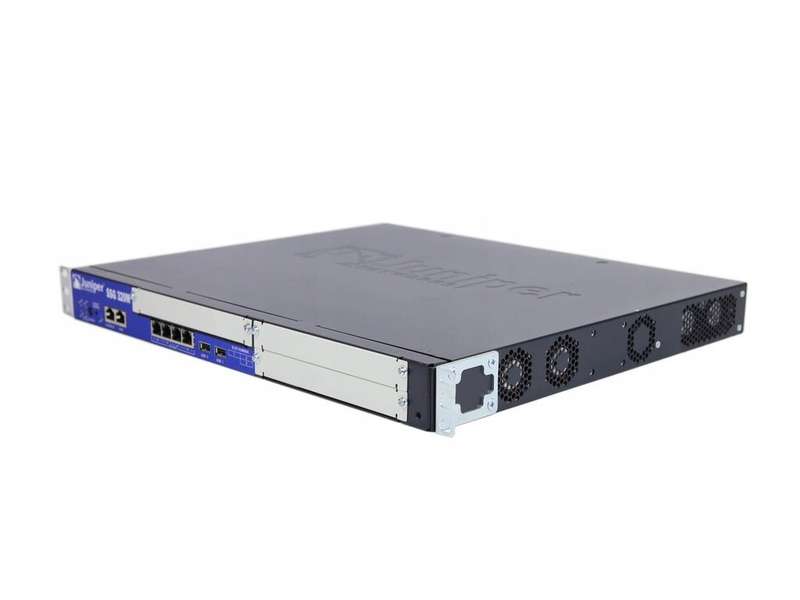

The Juniper SSG320M is a high-performance, fully-featured firewall and VPN appliance designed for mid-sized enterprises or branch deployments requiring secure, high-speed connectivity. With integrated UTM (Unified Threat Management), robust routing protocols, and up to 64,000 concurrent sessions, it supports secure multi-service environments through deep inspection, antivirus, anti-spam, and full IPsec/SSL VPN capabilities.
Equipped with 4 Gigabit Ethernet ports and 3 PIM slots for WAN/LAN module expansion, the SSG320M delivers 450+ Mbps firewall throughput and 175 Mbps AES256 VPN performance. It runs ScreenOS and is upgradeable to Junos OS 8.0+, providing investment protection and long-term support.
Key Features & Benefits
Firewall throughput of 450+ Mbps with up to 175,000 PPS performance
AES256+SHA-1 and 3DES VPN performance up to 175 Mbps
64,000 concurrent sessions and 10,000 new sessions/sec
Advanced UTM support: IPS, antivirus, antispyware, URL filtering, and anti-keylogging
Flexible connectivity with 4 Gigabit ports and 3 PIM slots
Supports up to 500 IPsec VPN tunnels and advanced routing with OSPF, BGP, RIP
Layer 2 transparent mode, Layer 3 routed/NAT mode, and HA configurations supported
Ideal Uses
Secure WAN access and firewall protection for medium-sized offices
Branch-level UTM deployments for regulated environments
IPsec/SSL VPN concentrator for remote access and site-to-site tunnels
Flexible perimeter security with policy-based and zone-based enforcement
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Brand: Juniper Networks
Model: SSG320M
Device Type: Security Services Gateway
Base Ports: 4 × 10/100/1000Base-T RJ-45
Expansion Slots: 3 × PIM slots (for WAN/LAN modules)
Firewall Throughput: 450+ Mbps
VPN Throughput (AES256+SHA-1): 175 Mbps
Concurrent Sessions: 64,000
Sessions Per Second: 10,000
IPsec VPN Tunnels: 500
Tunnel Interfaces: 100
Security Policies Supported: 2,000
Routing Protocols: BGP, OSPF, IS-IS, RIP v1/v2, static routing, ECMP
Multicast Support: IGMP, PIM-SM/DM, MSDP, MBGP
Virtual Routers: 8
Security Zones: 40
VLANs Supported: 125
QoS Features: DiffServ, traffic shaping, ingress policing, bandwidth guarantees
Authentication: Internal DB (500 users), RADIUS, LDAP, RSA SecurID, 802.1X
Management: WebUI, SSH, Telnet, CLI, SNMPv3, NSM
Storage: USB 1.1 external flash support
Dimensions (W × H × D): 44.5 × 4.5 × 38.3 cm
Weight: 6.8 kg
Power Supply: 100240V AC, 275W max
Max Power Consumption: 320W
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Humidity (Operating): 10%90% non-condensing
Certifications: CSA, FCC Class A, CE Class A, VCCI Class B, FIPS 140-2 Level 2, Common Criteria EAL4
Warranty: 3 Month Carry-in Warranty
What's in the Box: Juniper SSG320M Appliance
