High Voltage VDC450V

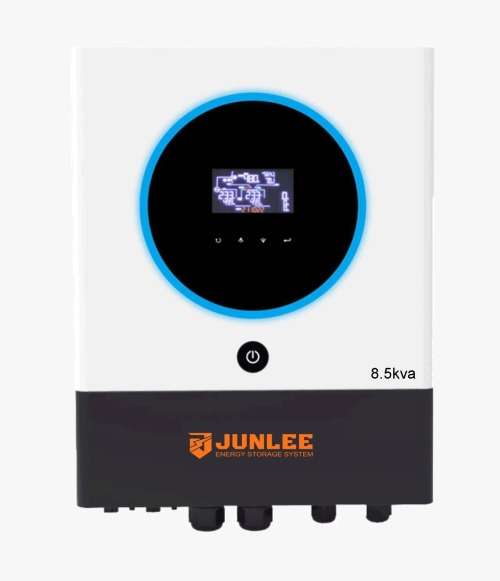

8.5KVA/8500W Pure Sine Wave Solar Inverter
Features
- Pure Sine Wave Solar Inverter
- High PV Input Voltage Range (120VDC - 450VDC)
- Built-in 120A MPPT Solar Controller
- Supports Multiple Output Priority: UTL, SOL, SBU, SUB
- Supports Parallel up to 9 units
- RS485 Communication for BMS
- Battery Equalization Function to Optimize Battery Performance and Extended Lifecycle
Specifications:
Inverter Mode
- Rated Power:8500VA / 8500W
- DC Input: 48VDC, 120A
- AC Output: 230VAC, 50/60Hz, 48A
AC Charger Mode
- AC Input: 230VAC, 50/60Hz, 48A
- DC Output: 450VDC
- Max. Charge Current(AC):40A
- Max. Charge Current(PV+AC): 100A
- AC Output: 230VAC, 50/60Hz, 30A
Solar Charge Mode
- Max. PV Array Power: 8000W
- Min. Solar Voltage: 120VDC
- Max. Solar Voltage (VOC): 450VDC
- Max. MPPT Charge Current: 120A
