JVC DLA-NP5BE Home Projector

JVC DLA-N5BE Home Projector

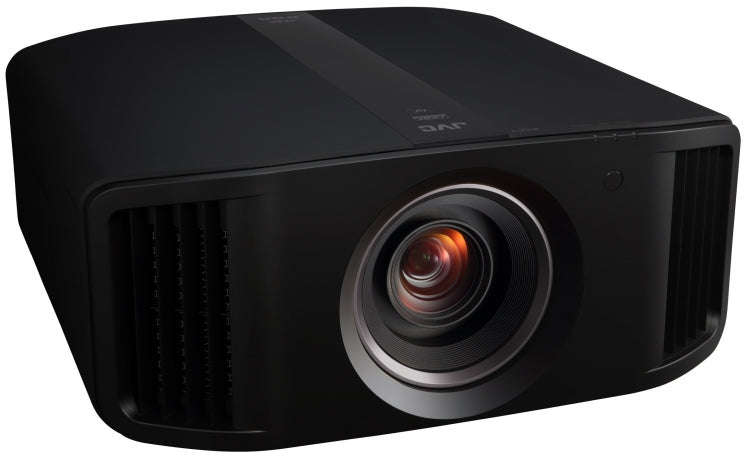

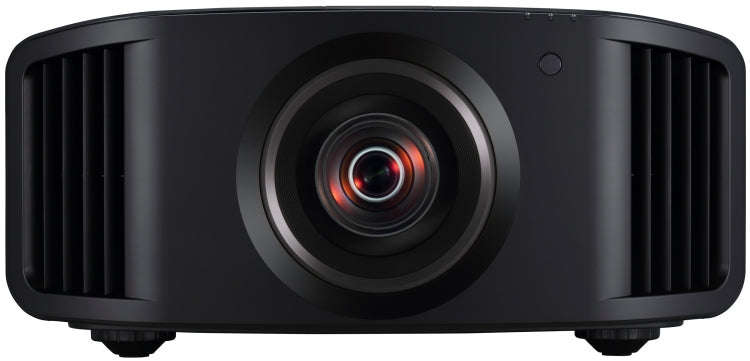

JVC DLA-N5 D-ILA projector is wrapped in a whole new design, which is packed with the latest projection features. For instance with the new 0.69-inch native 4K D-ILA device, the projector can produce high-definition native 4K resolution (4096 x 2160) images from its all-glass 65 mm diameter lens system. HDR10 content can be projected at optimum quality with Auto Tone Mapping function, and the new Frame Adapt HDR function, which analyses HDR10 content frame-by-frame and automatically performs frame adjustment for optimal image projection.

Combining brightness of 1,800 lm, dynamic contrast ratio of 400,000:1, and 18-bit equivalent gamma accuracy for smooth gradation, the projector reproduces life-like images close to reality as we perceive with our eyes. Renewed Clear Motion Drive together with Motion Enhance, which optimizes the D-ILA driving device according to image movement, significantly reduce blur compared to other projectors.

Features

Complies with the latest HDMI/HDCP 2.2 standard to enable full spec 4K signal input with 18Gbps transmission band-width (4K60P 4:4:4, 4K60P 4:2:2/36-bit, 4K24P 4:4:4/36-bit)

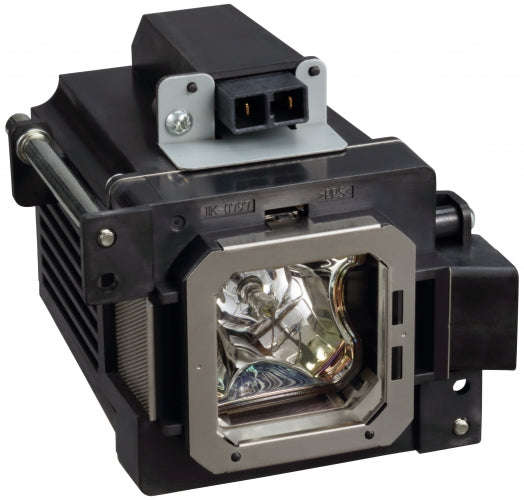

Light source: NSH 265 W lamp

Resolution: 4096 x 2160

Input connectors: HDMI x 2 (3D, Deep Colour/HDCP 2.2)

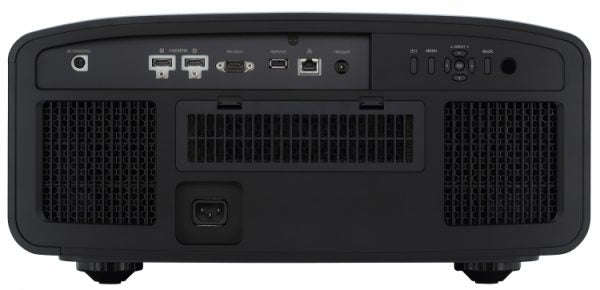

Output and control connectors: RS-232C (D-sub 9pin) x 1, LAN (RJ-45) x 1, Trigger x 1 (Mini jack), 3D Sync x 1 (Mini-DIN 3pin)

3D formats: Frame Packing, Side-by-Side (Half), and Top & Bottom

New 0.69 inch 4K D-ILA (4096 x 2160) device x 3

High-definition display at 4K resolution (4096 x 2160)
17-element, 15-group all-glass 65mm diameter high-quality lens

Multiple Pixel Control image processor accurately reproduces images closer to the original

Exceptionally bright 1,800 lm means bright, high-resolution images

Deep Blacks are realized by a High Native Contrast Ratio of 40,000:1 (Dynamic

Contrast Ratio 400,000:1)

Frame Adapt HDR dynamically tone maps any HDR10 content frame-by-frame and automatically performs adjustment to achieve optimal images close to reality as seen by human eyes

As a part the Frame Adapt HDR, the projector offers improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation

Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality

For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received

UHD Blu-ray discs Compatible with Hybrid Log-Gamma that is expected to be used widely in future broadcasting

Installation Mode centrally manage nine settings related to installation to enjoy video best suited for each environment

Nine settings of Installation Mode include Lens Control, Pixel Adjustment, Mask,

Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and

Aspect; stored installation modes for various environments can be called up.

Renewed Clear Motion Drive supporting 4K60P (4:4:4) signal improves moving images more than ever

Motion Enhance technology reduces residual images and blurring that are often found in fast-moving images by optimally controlling the drive of D-ILA devices

Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles

Colour Management System with 6-axis Matrix

Auto-Calibration Function using an optical sensor* is capable of optimizing essential elements in the image, including colour balance, gamma characteristics, colour space and colour tracking

ISF C3 (Certified Calibration Controls) mode** to reproduce excellent picture quality optimized for specific environments.

Wireless transmission options for 3D viewing: RF (radio frequency) system transmission with PK-AG3 3D Glasses for 100H continuous operation and PK-EM2 3D

Synchro Emitter
*Exclusive JVC software installed in PC and optical sensor are required. Please visit the JVC website for details. **Professional calibration to desired screen is performed by trained dealers
