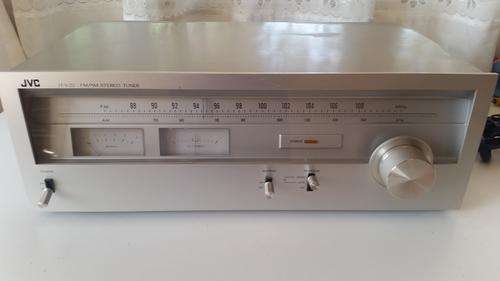

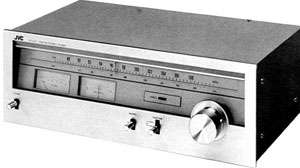

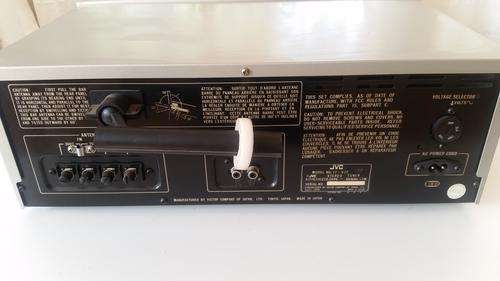

JVC JTV-22 AM/FM Tuner
FM/AM Tuner
FM tuner:
Usable Sensitivity: 2.0µV/300ohms
50dB Quieting Sensitivity:
Mono: 4.0µV
Stereo: 45µV
Signal-to-Noise Ratio:
Mono: 73dB
Stereo: 65dB
Distortion:
100Hz (mono): 0.2%
(Stereo): 0.45%
1 kHz (mono): 0.2%
(Stereo): 0.35%
6 kHz (mono): 0.2%
(Stereo): 0.55%
Capture Ratio: 1.5dB
Alternate Channel
Selectivity: 70dB
Spurious Response Ratio: 75dB
Image Response Ratio: 58dB (98MHz)
IF Response Ratio: 90dB
AM Suppression: 45dB
Stereo Separation:
100Hz: 30dB
1 kHz: 40dB
10 kHz: 30dB
Subcarrier Product Ratio: 50dB
Output Level (400Hz. 100% Mod.):
Fixed Output: 600mV
Aerial input Impedance
Unbalanced: 75 ohms
Balanced: 300 ohms
AM tuner:
Usable Sensitivity: 300µV/m (Bar Aerial), 50µV (External Aerial)
Signal-to-Noise Ratio: 50dB
Selectivity: 30dB
Image Response Ratio: 45dB
IF Response Ratio: 40dB
Output Level (400Hz, 100% Mod.)
Fixed Output: 400mV
Dimensions (H x W x D, mm): 150 x 420 x 295
Weight: 4.6kg
Note: Additional shipping charges will apply due to the weight of the item. Please query the shipping charge for your area/location before proceeding to check-out.
