Specifications:

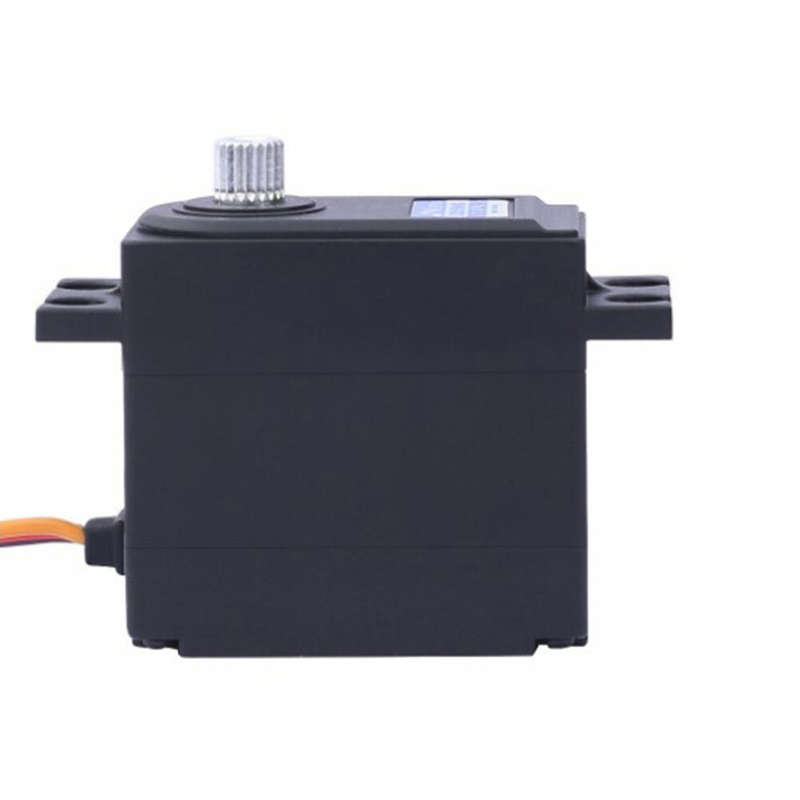

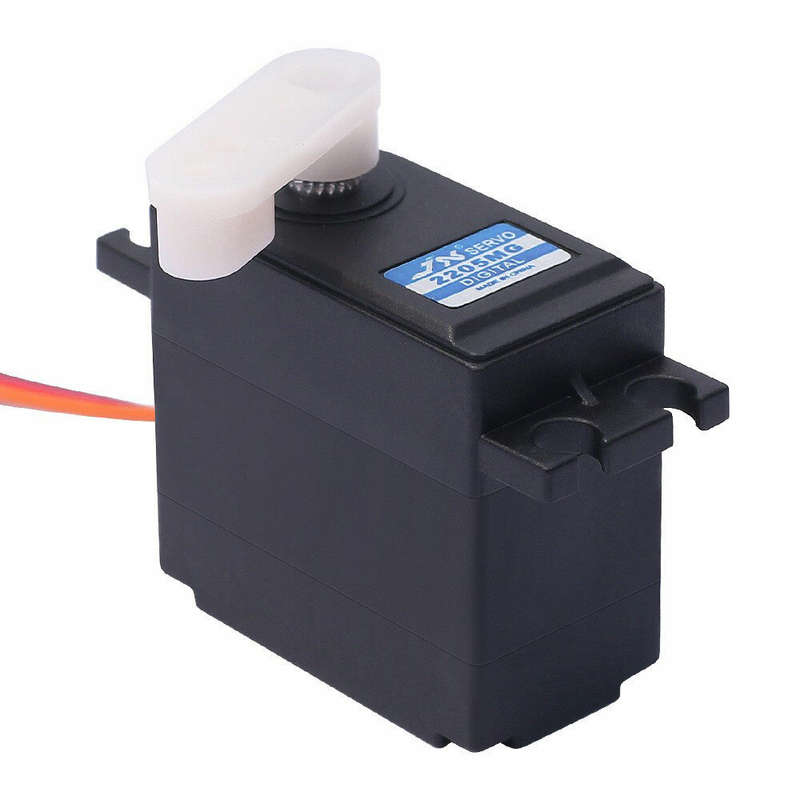

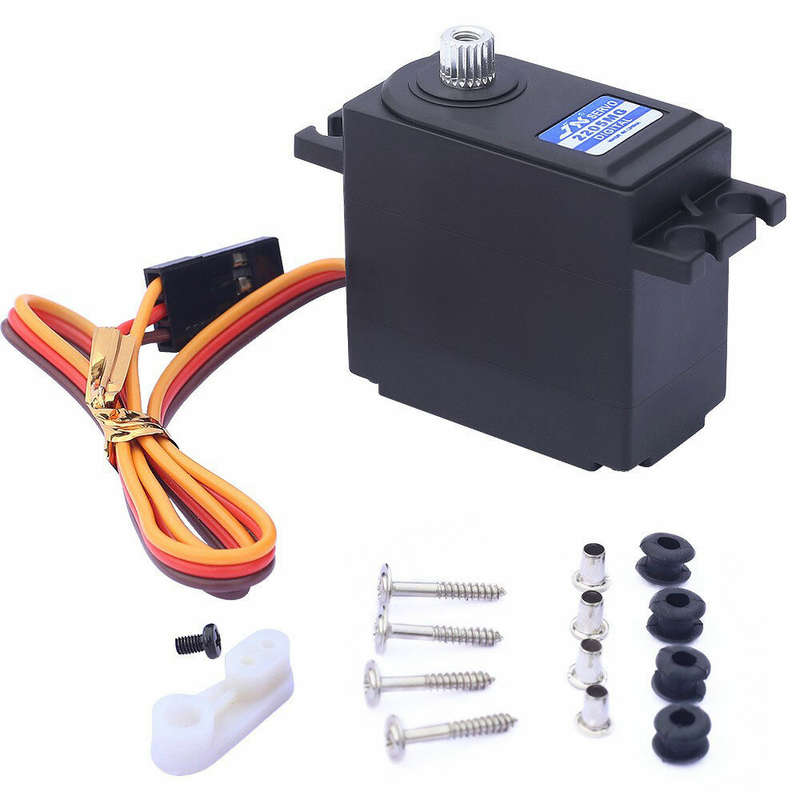

Product Model: PDI-2205MG 22g Metal Gear Digital Servo
Dead Band: 4us
Working Frequency: 1520us / 330hz
Operating Speed: 0.12sec/60° at 4.8V, 0.10sec/60° at 6V
Stall Torque: 3.3kg.cm at 4.8V, 4.6kg.cm at 6V
Dimensions: 31 x 16.3 x 29.5 mm
Weight: 22g
Connector Wire Length: JR 220 mm
Gear Teeth: 21T
Bearing: 2BB
Motor: Core motor
Compatibility:
Suitable for FY-01/02/03/04/05/06/07/08,
SUBOTECH BG1506/1507/1508/1509/1513,
JJRC Q39,
MJX14210 14209(2.5*12 screws are given as a gift)
Features:
Wide Compatibility: Perfectly adaptable to a range of vehicle models including FY, SUBOTECH, and MJX, offering a versatile choice for upgrades.
High-Speed Performance: Operating speeds of 0.12sec/60° at 4.8V and 0.10sec/60° at 6V make this servo exceptionally quick and responsive.
Powerful Stall Torque:
