Key Features:
One-Click Code Copying Simple and fast programming process.
High Security Each button stores codes separately for maximum privacy.
Long-Lasting Durability Supports up to 1 million uses.
Wide Application Compatible with garage doors, motorcycles, car alarms, home security systems, industrial controls, and more.

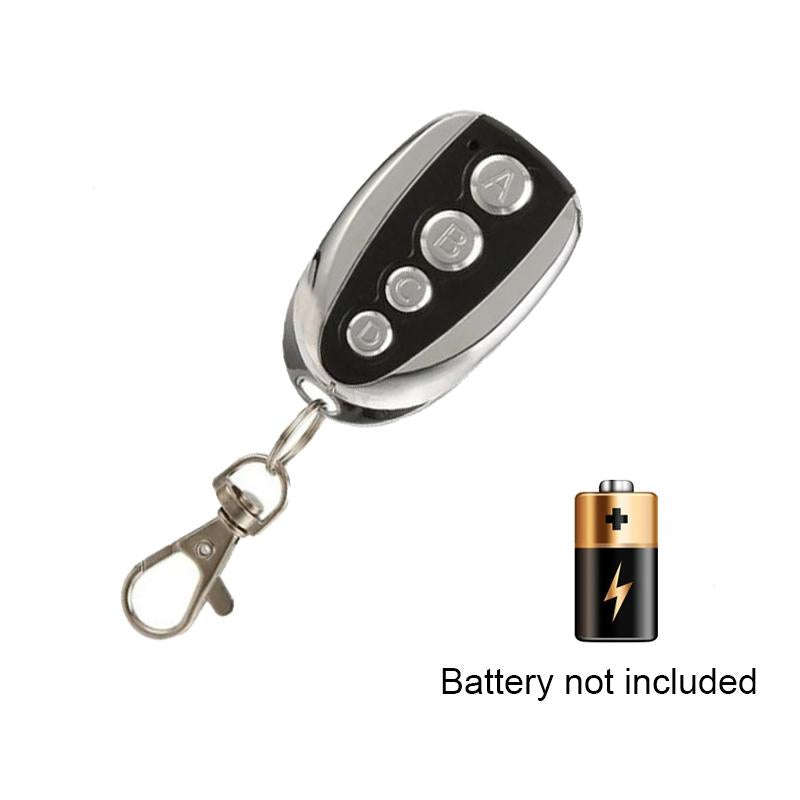

Compact Power Usage Operates on 1×27A 12V battery (not included), with 8mA current draw.
Technical Specifications:
Voltage: DC 12V
Modulation: ASK (AM)
Transmitting Power: 100mW
Transmission Range: 50100 meters
Encoding Type: Self-copying/fixed or learning code
Compatible IC Chips: PT2262, 2260, 1527, 5326, HT6010, HCS200, and many more (check original remote chip before purchasing)
Programming Instructions:
Clear Code:
Press buttons 1 & 2 simultaneously until the LED flashes 3 times.
Release one button, press it 3 times while holding the other.
When the LED stops lighting up upon pressing any button, the memory is cleared.
Copy Code:
Align the original and new remote closely.
Hold the target button on both remotes.
LED flashes rapidly then stays on release the button. Copy is successful.
Restore Deleted Code:
Press buttons 3 & 4 together until the LED flashes 3 times. Code is restored.
Reset or Add More Codes:
Repeat step 2 for each additional button.
To reset fully, repeat step 1.
Note: Ensure your original remote uses fixed code or learning code IC chips for compatibility.
