K5 High Precision Optical Fiber Cleaver K5 High Precision Optical Fiber Cleaver K5 High Precision Optical Fiber Cleaver K5 High Precision Optical Fiber Cleaver
K5 High Precision Optical Fiber Cleaver K5 High Precision Optical Fiber Cleaver K5 High Precision Optical Fiber Cleaver K5 High Precision Optical Fiber Cleaver

K5 High Precision Optical Fiber Cleaver

1 available / new
Indicative market price: R2,000.00
Only 1 left – grab it before it’s gone!
R1,000.00
50% off
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Warranty Type: Replacement For any material defects. Or damage during shipping. Excludes negligence, bad installation, and accidental damage. Money-Back Guarantee: 7 Days: Only if defective. Must be in original condition and everything complete in packaging and in box as received and can be resold as new.
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
CT007ELL
Bob Shop ID
645169838

Features:

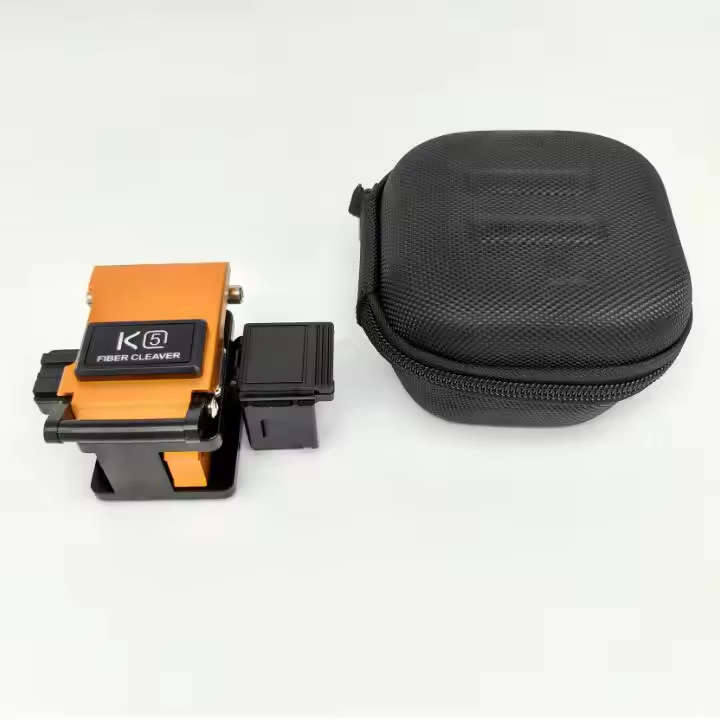

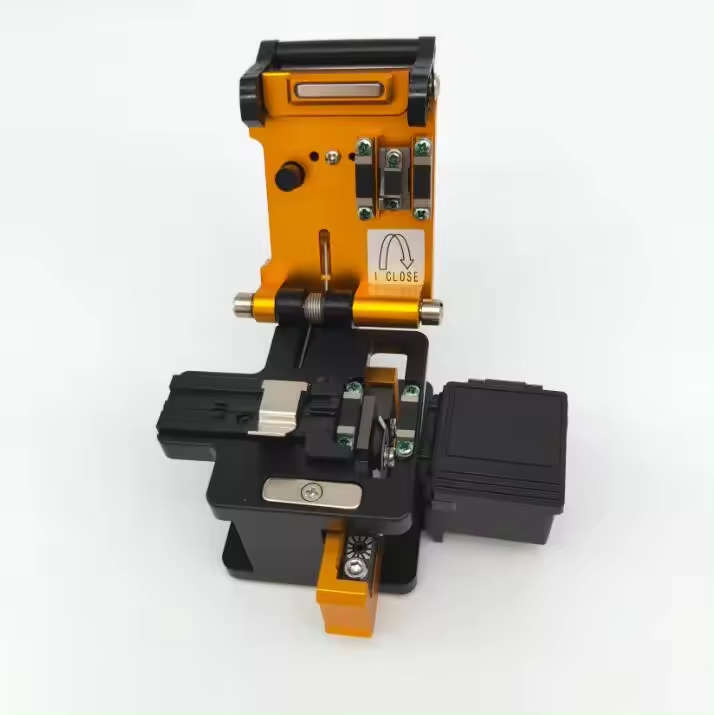

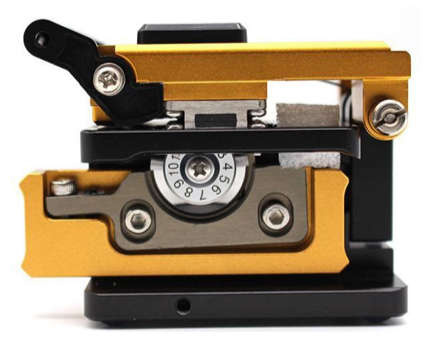

The K5 High Precision Optical Fiber Cleaver is used for cutting single-core optical fiber. The cleaver is suitable for 250um / 900um coated optical fiber and household optical cables. Operation is simple and easy, with a small cutting angle and precise cutting. It can be also used to cut leather cables. It can be used with different welding machine clamps as well. It is designed in an easy-carrying small size case.

Scope of application:

Applicable optical fiber 0.25mm&0.9mm, human household cable Applicable bare fiber diameter 125um Applicable fiber core number: single core 5-20mm (0.25mm) Fiber cutting length 520mm (0.9mm) 5-12mm (personal household optical cable)

Specifications:

Average cutting angle: 0.5° Single-core fiber cutting: 12 cutting end faces Blade life: 36000 core times (12 end faces×3 height) Cutting length: 9-16mm Appearance size: 65*63*58 (mm) Weight:  330 grams A matching wrench is included in the package, which can be used to adjust the height of the blade.

Type: Single fiber and ribbon fiber

Cladding Diameter: 125um

Cleaved Length: Single fiber: 8~20mm / Ribbon fiber: 10mm

Applicable Fiber Cable: Single fiber: 250um, 900um, 3.0mm fiber cable and flat cable Ribbon fiber 2 to 12 ribbon fiber cable

Typical Cleaved Angle: Less than 0.5 Degrees

Typical Blade Life Span: Total 48,000 fiber cleaves (1,000 fiber for 1 step * total 16 points * 3 heights)

Operation Steps: 2 Steps

Reclaim Function: Blade pushback

Holder: Single: Universal holder / Ribbon: Replaceable holder
