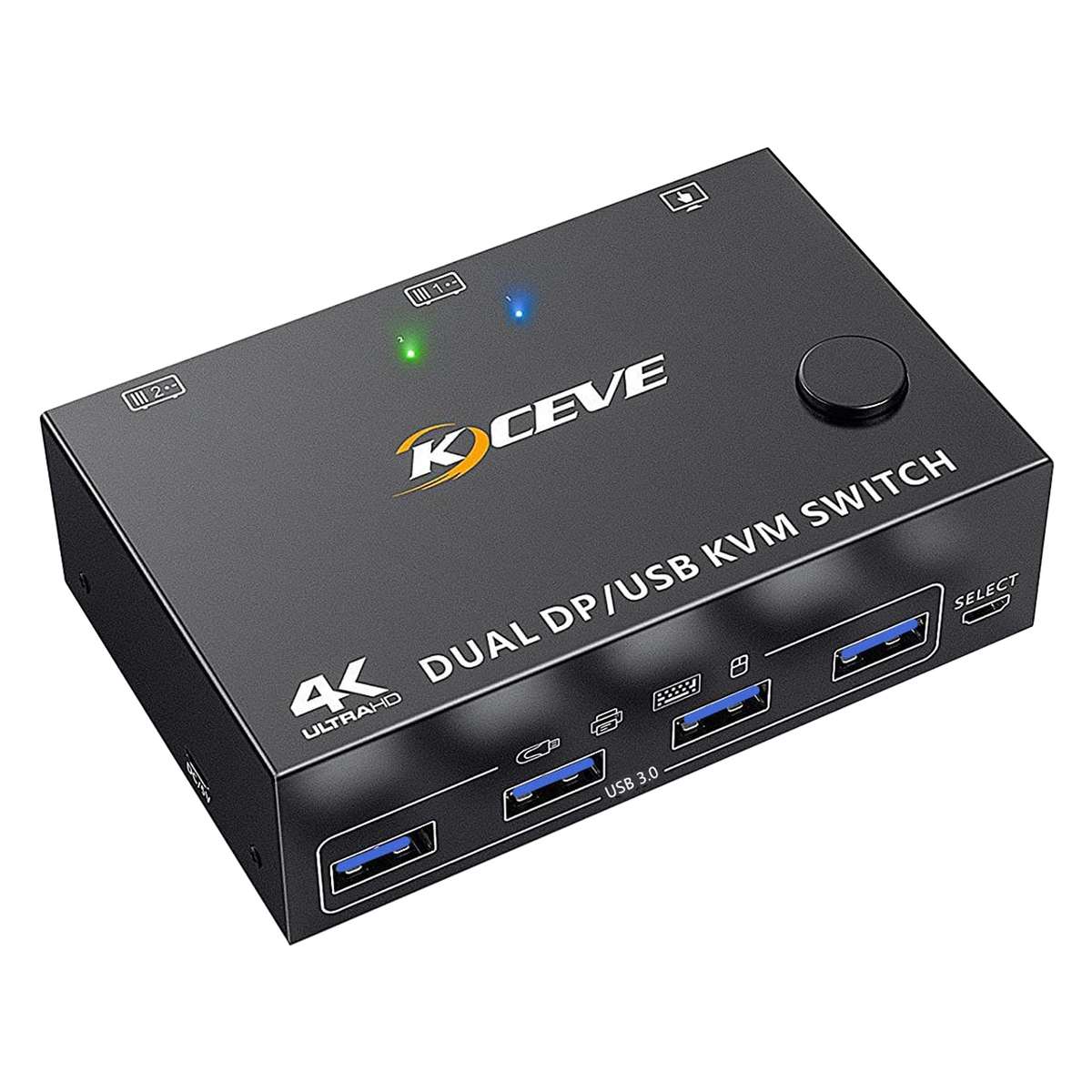

KC-KVM202DP 4K 60Hz USB3.0 DP Dual Monitors KVM Switch

EDA0056813
Features:
1. Freely switch between high-definition video source and USB interface.
2. Works with Displayport 1.4 compatible input and output ports.
3. Supports the highest video resolution 8K 30Hz.

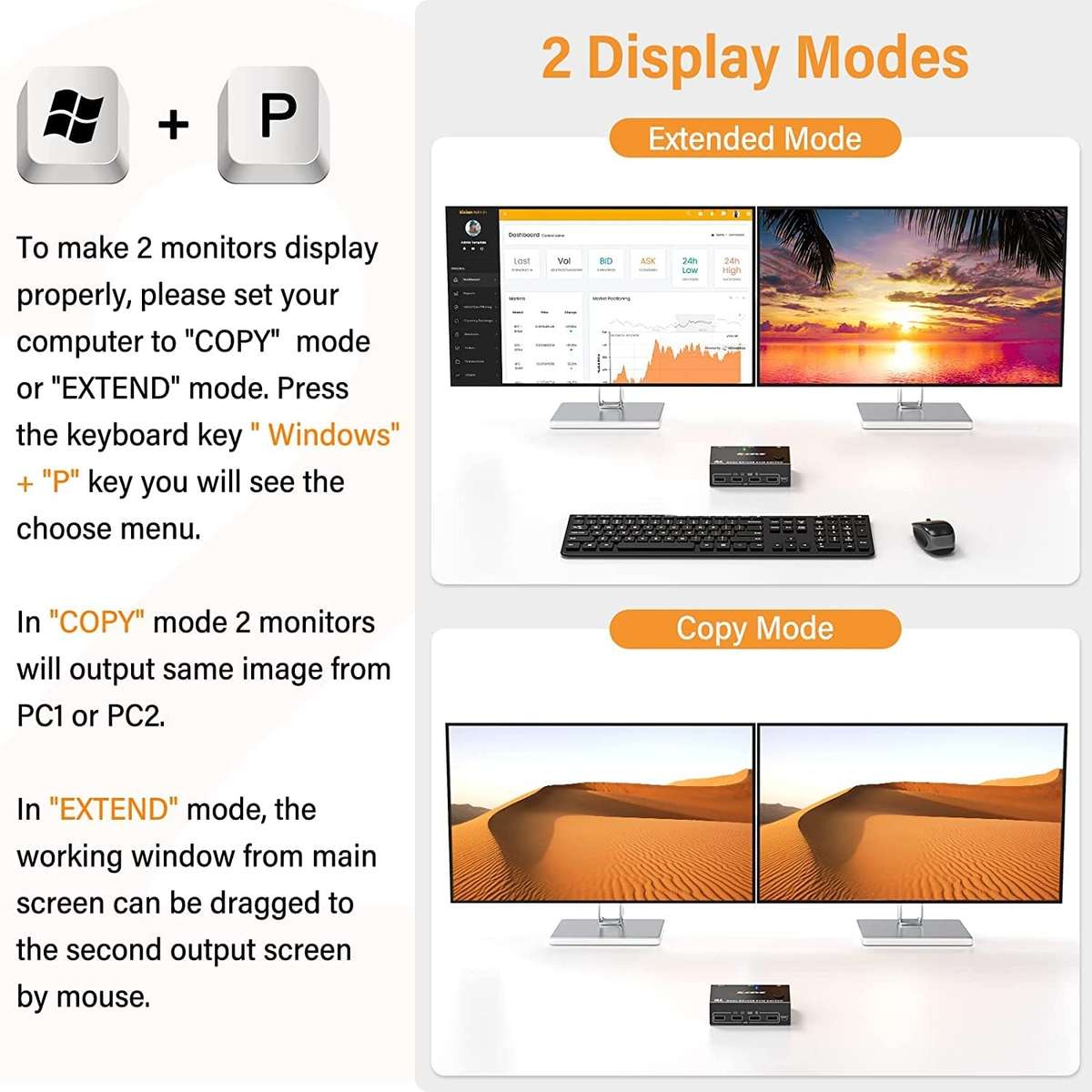

4. Supports dark color, dual display output, and supports extended and mirrored dual displays.
5. High compatibility, can automatically match the source and display device.
6. Built-in automatic adjustment system, the image is smooth, clear and stable.
7. Built-in ESD protection system, easy to install, plug and play, no driver required.
8. Can connect full-speed USB devices, such as USB mouse, HUB, U disk, keyboard, printer, etc.
9. One set of USB keyboard and mouse controls two computers, realizing two-in-one free synchronous switching, and supports expansion and copy display.
10. The high-definition video signal resolution is up to 7680x4320 30Hz, supporting full high-definition 144Hz 3D stereoscopic display.

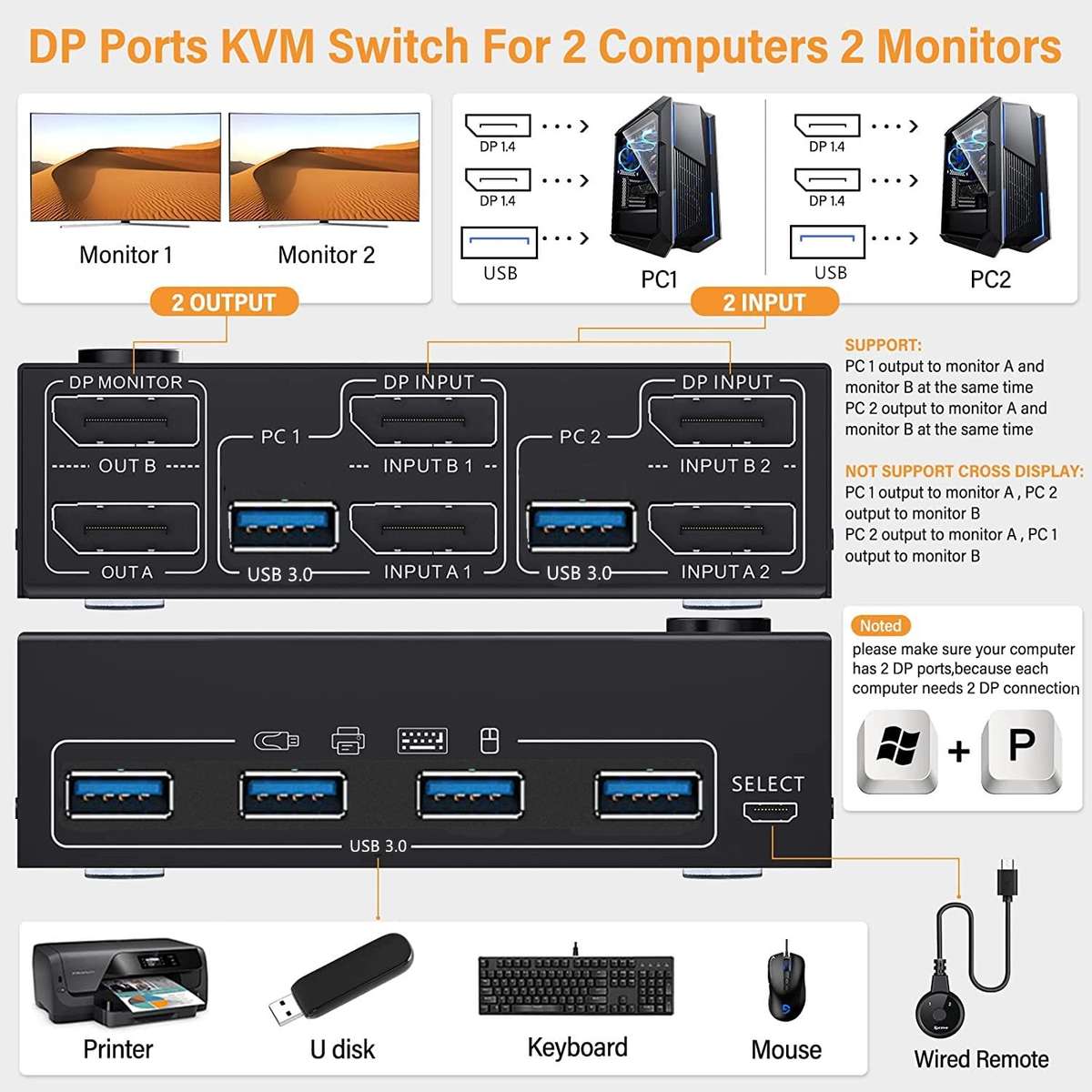

Parameters:

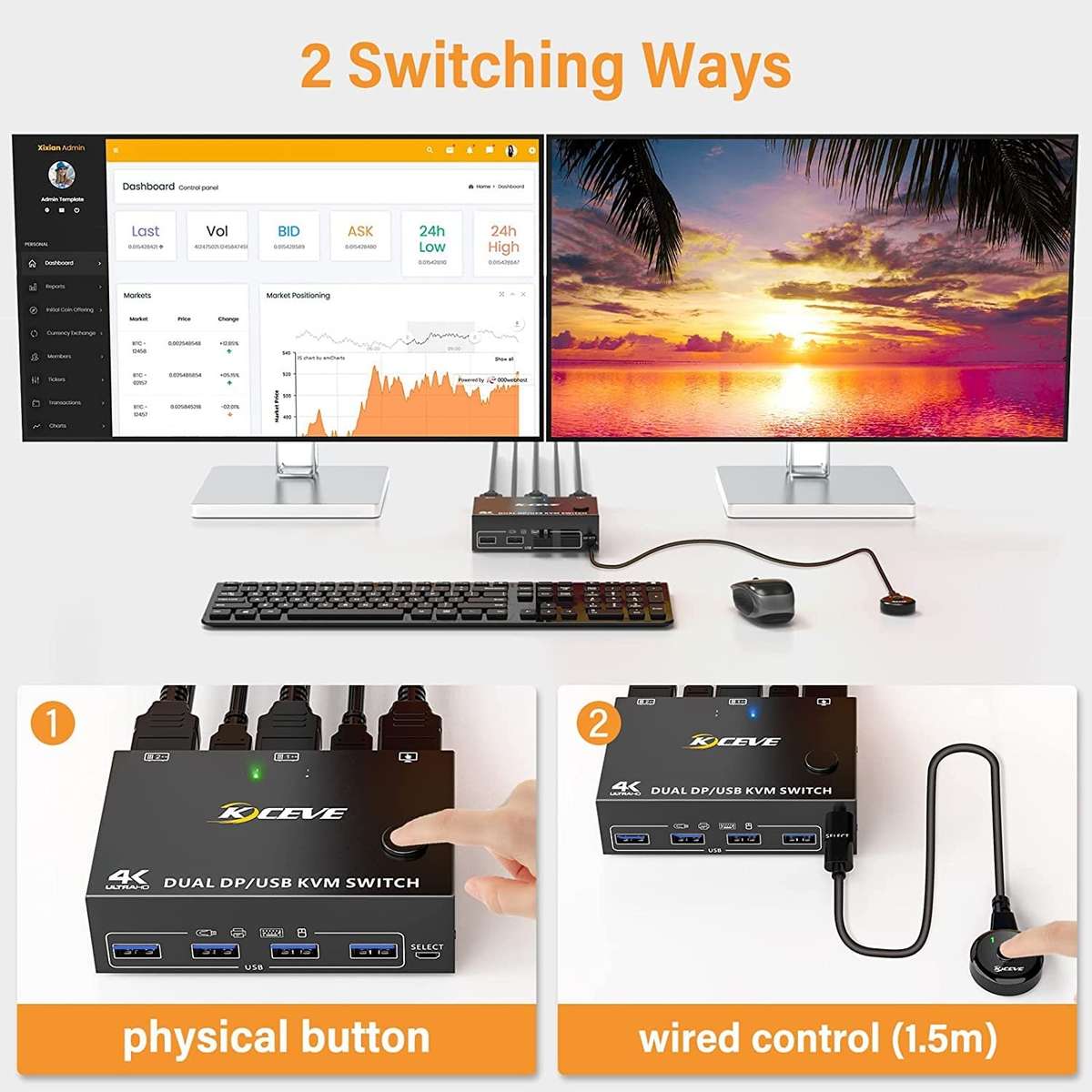

1. Switch mode: physical button/wired control
2. Input: 2 x DP DisplayPort
3. Video output: 2 x DP (monitor)
4. Supports USB3.0 hub, connected to K/MPrinter SSD
5. Input downward: 4 x USB A (USB3.0 HUB)
6. Support the highest video resolution: 7680x4320 30Hz, 3840x2160 120Hz/60Hz
7. Resolution range: 4K 60Hz, 1440P 165Hz 144Hz 120Hz 60Hz, 1080P 165Hz 144Hz 120Hz 60Hz (depending on the system and connected hardware)

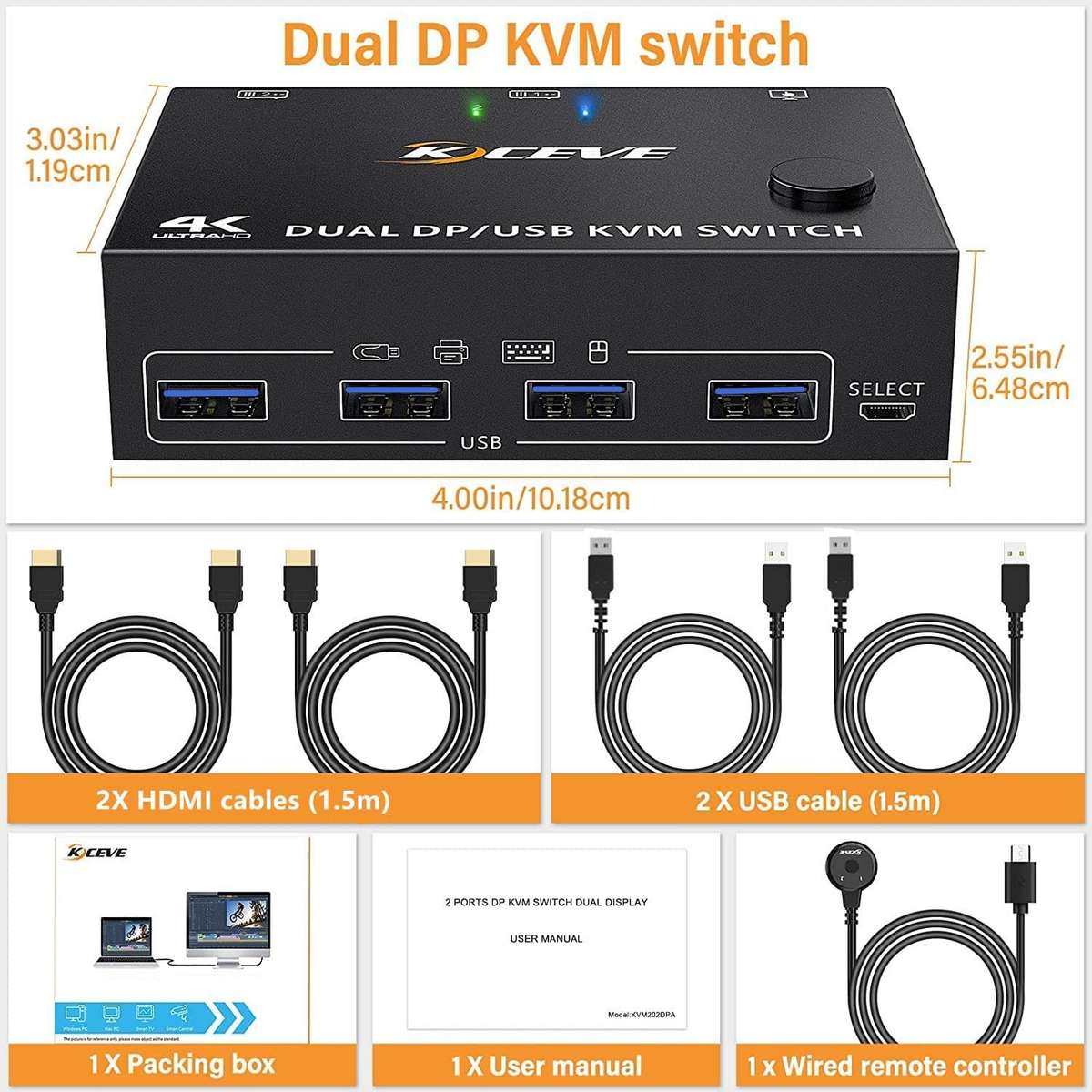

8. Product size: 108x30.3x64.8mm
9. Product material: metal

Packaging list:
- DP KVM switch x 1
- Control line x 1
- User manual x 1
- DP cable x 2
- USB cable x 2
