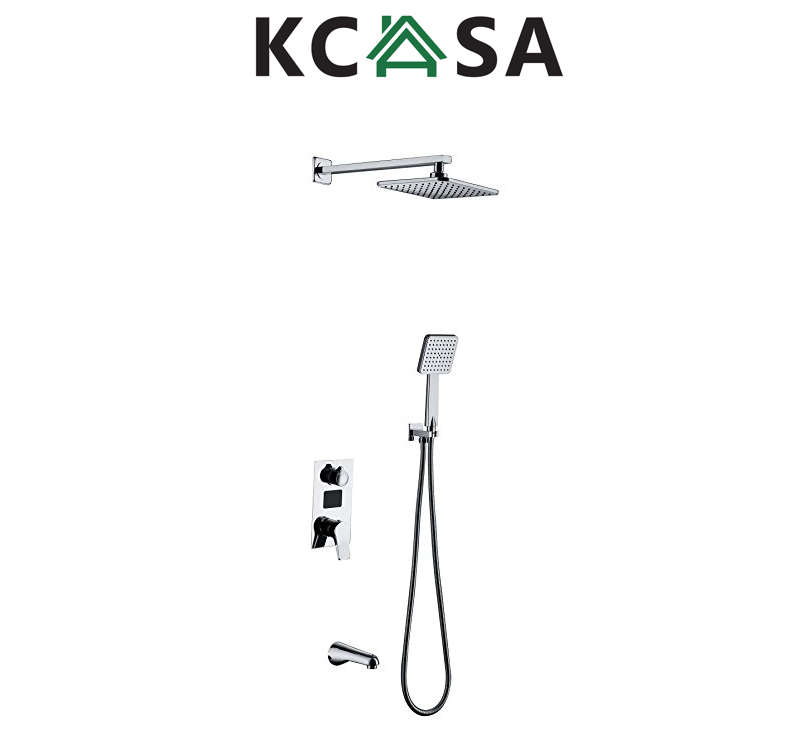

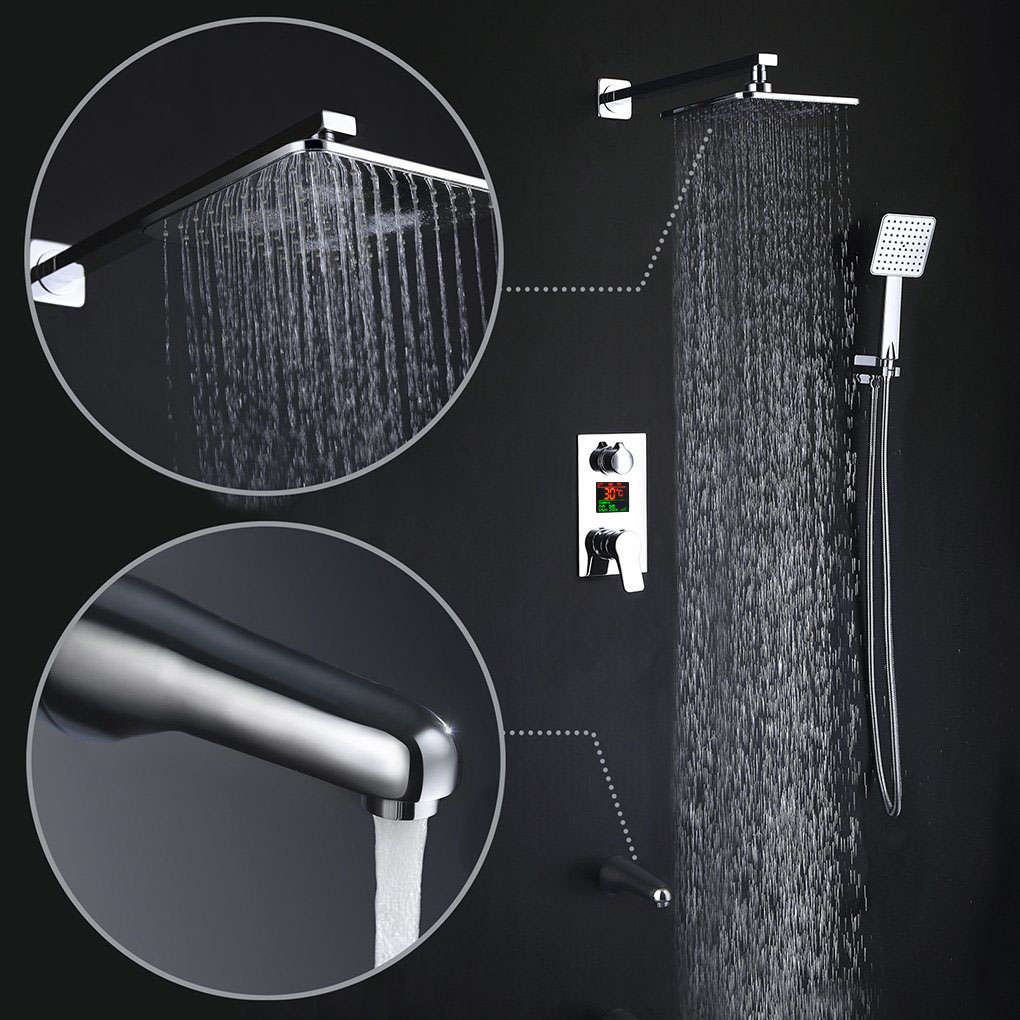

KCASA KC-S100 LED Digital Display Wall Mount Bathroom Rain Mixer Shower Set Three Ways Shower System

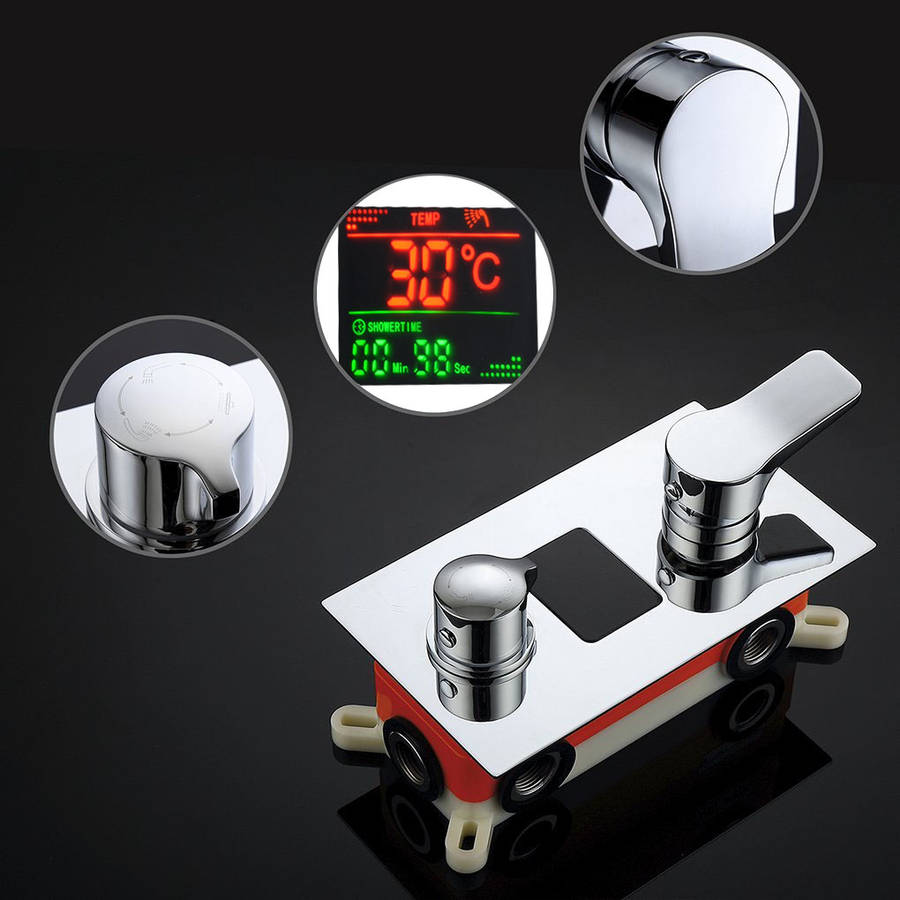

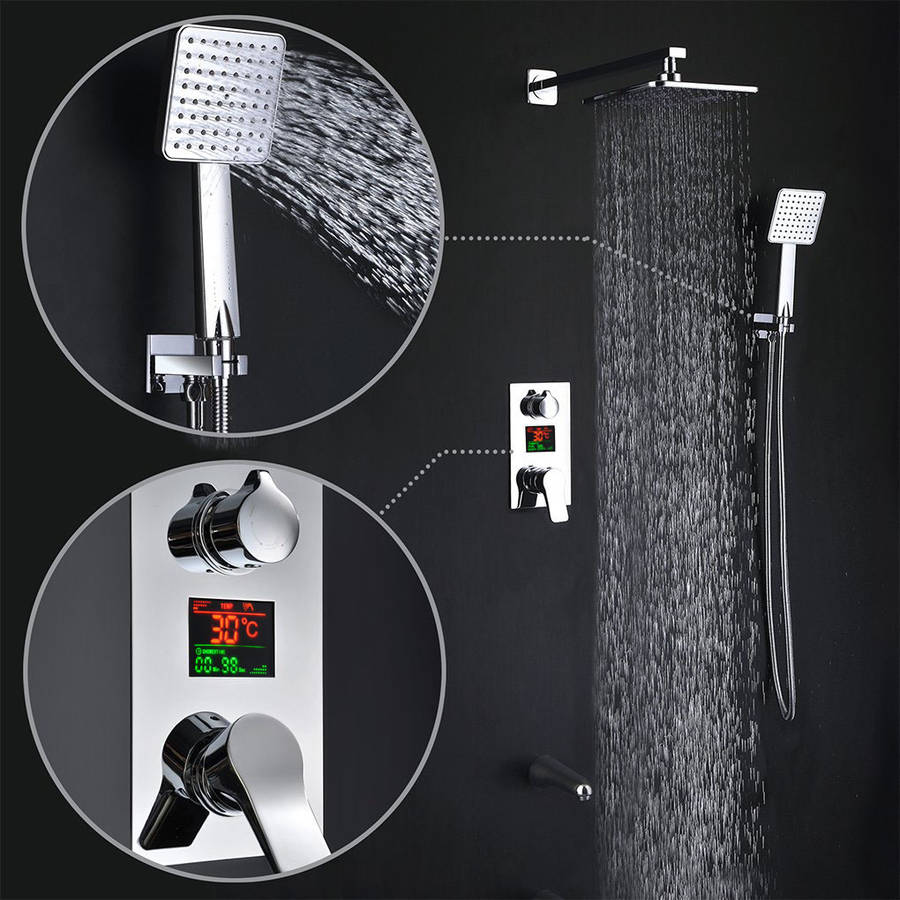

LED Digital Display - Show water temperature ( KC S100 Shows In Degree Centigrade ) and bath time. Assist you to select the best water temperature.

No Electricity & No Battery Design - Powered by water flow. The led lights automatically while water flows down.

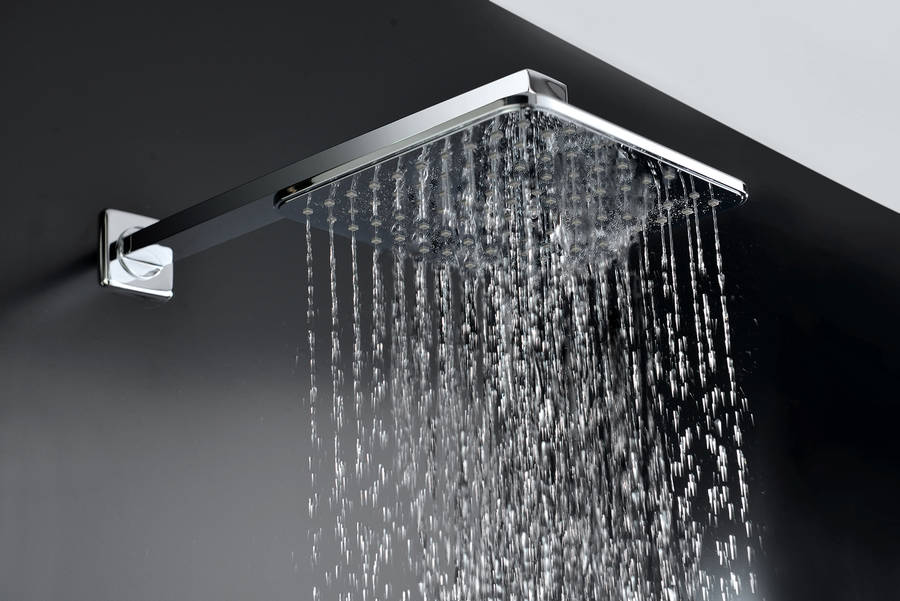

Air Energy Technology - Bring you the powerful rain shower even under low water pressure.

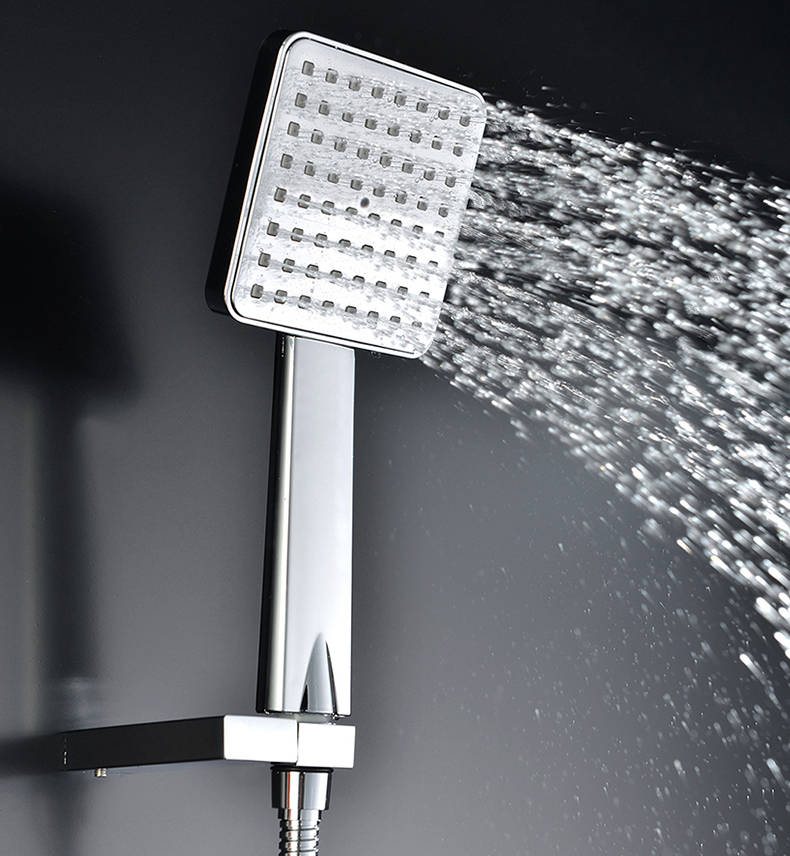

Metal swivel ball allows you to adjust the angle of the showerhead.

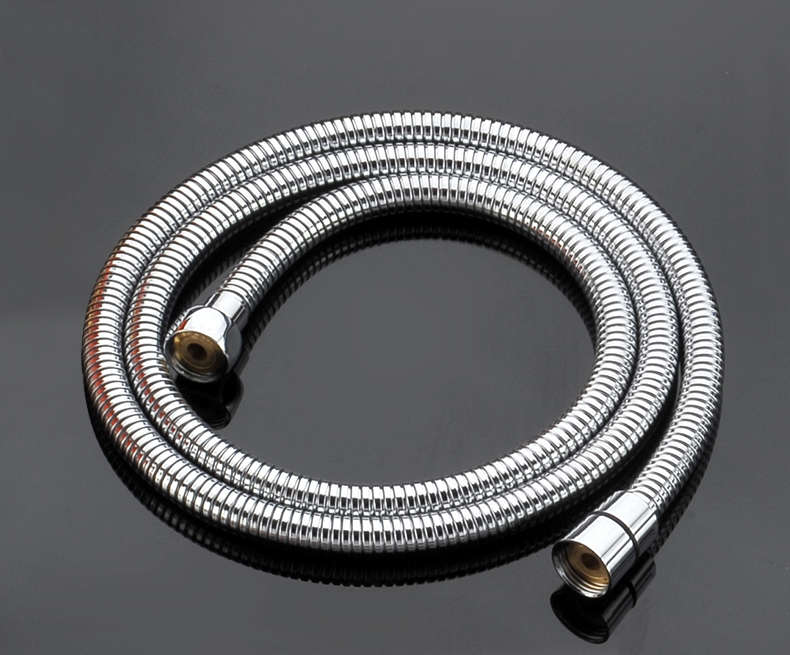

59" Shower Hose
Type : 59 Inch Stainless Steel Shower Hose
Length : 59'' / 1.5M
Material : Stainless Steel
Feature : Flexible and does not kink, Very easy to install.
Connection : G 1/2"
G 1/2" : Outer 20.956mm, Inner 18.632mm, Pitch 1.814mm, Cusp 55 °

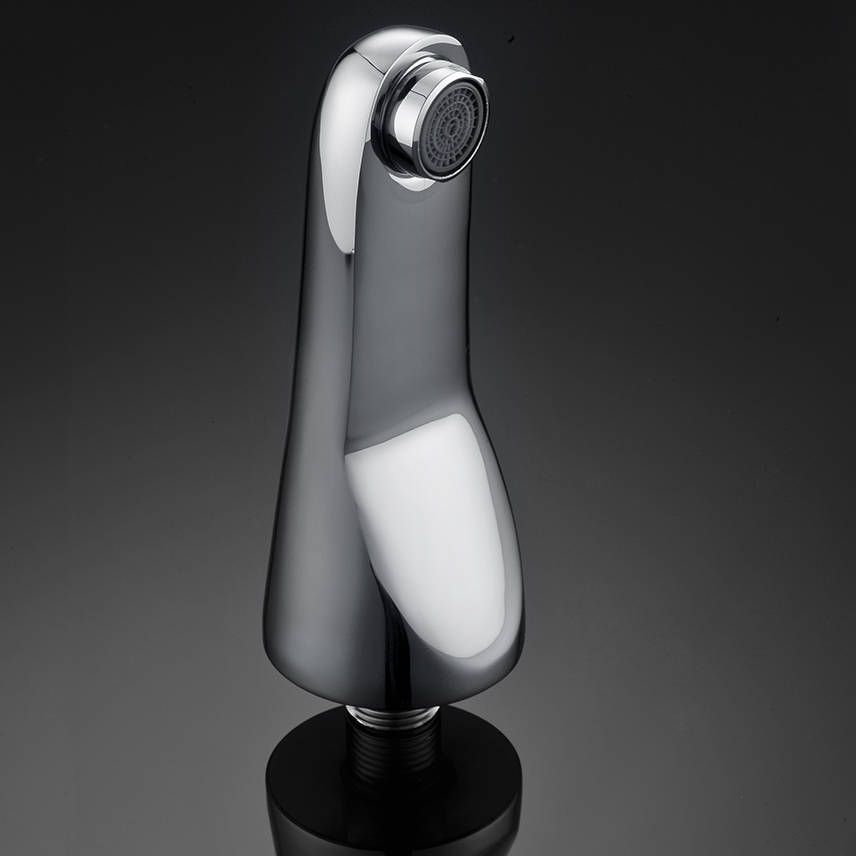

Wall Mounted Tub Spout
Type : Wall Mounted Tub Spout
Material : Solid Brass
Feature : Very easy to install.
Connection : G 1/2"
G 1/2" : Outer 20.956mm, Inner 18.632mm, Pitch 1.814mm, Cusp 55 °

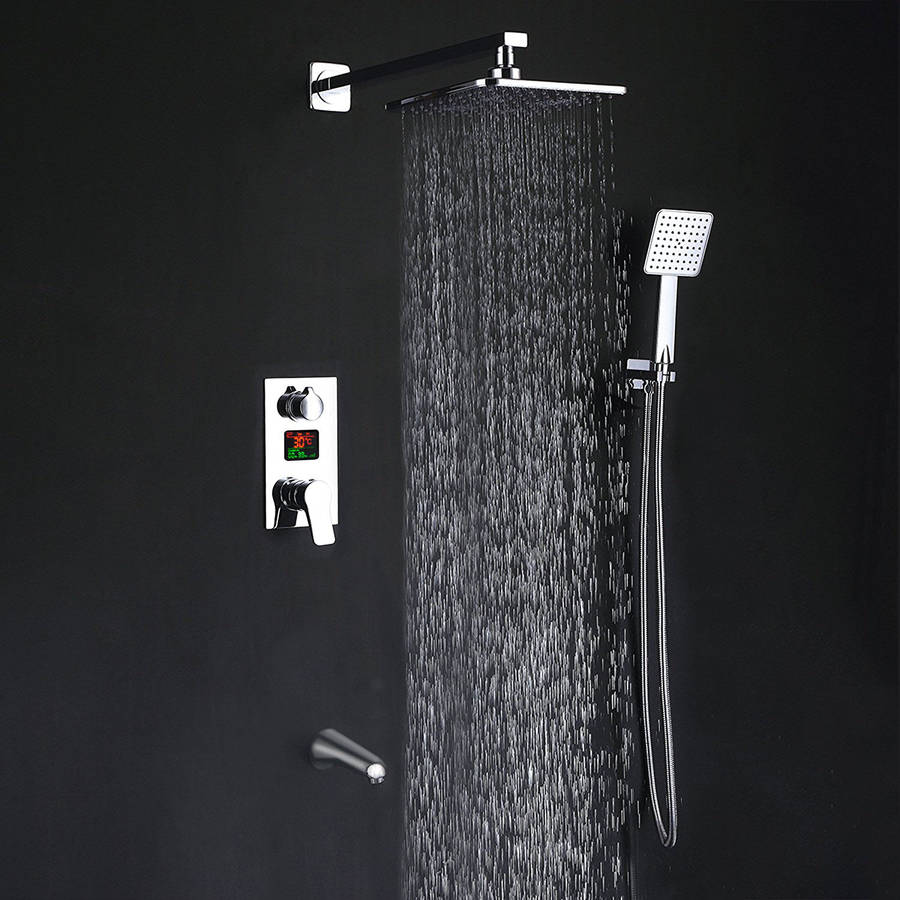

KCASA DPS100 LED Digital Display Wall Mount Bathroom Rain Mixer Shower system

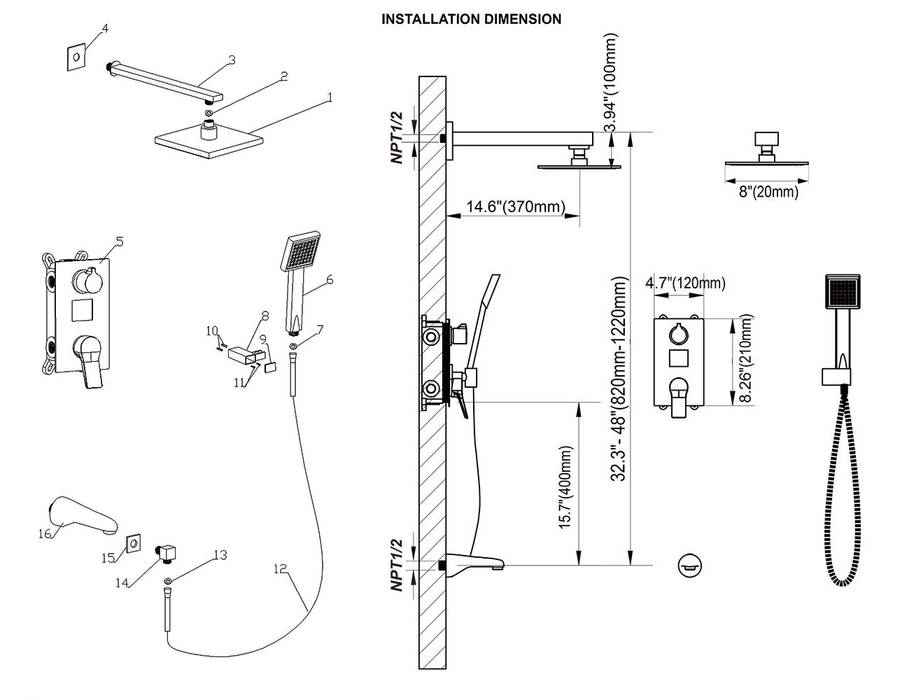

How to Installation ??

1. Put and install the main boby (5) in the hole pre-prepared in the wall, connected with the out let and inlet connection
2. Install the diverter (14)
3. Install the shower holder (8)
4. Connect the shower hose (12) with the hands shower (6)
5. Install the spout (16)

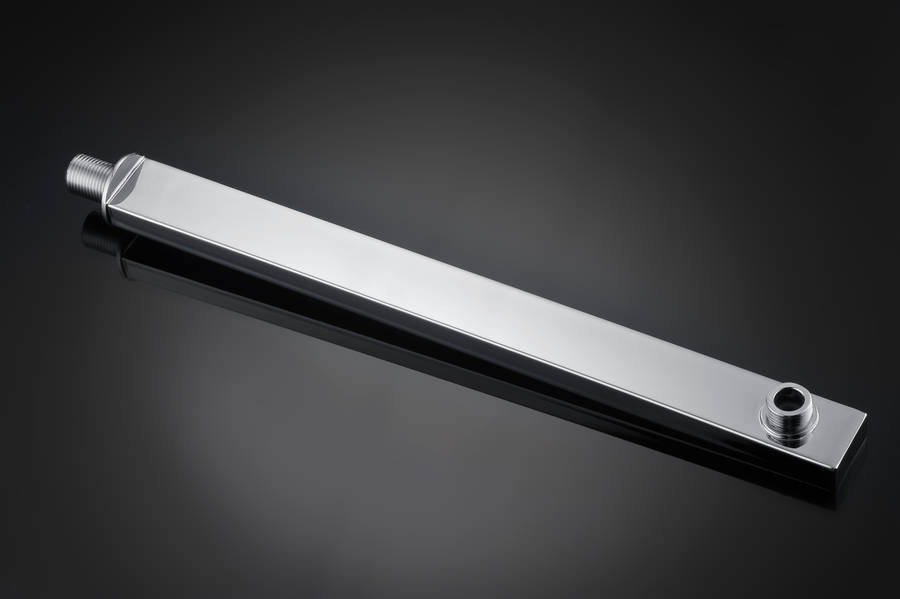

6. Connect the head shower (1) with the shower bar (3) and installed in the wall

Pls cleaner the sediment in the pipe placed in advance when installlation, and no left any washer on the place of connection.
