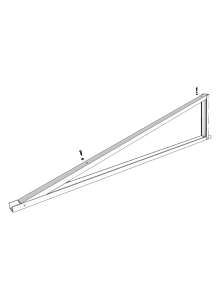

KD Solar 13-25 degrees adjustable V-frame bracket for portrait mounting.

KD Solar 13-25 degrees adjustable V-frame bracket. This adjustable bracket is mainly used for flat or low-angled roofs - the user-adjustable angles allow a more efficient PV array in terms of harvesting the sun's energy. In addition, the adjustable V-frame bracket can be used with any flat metal roof anchor (for corrugated, cliplock or IBR roofs) whenever an additional elevated angle is required, in such cases the KDS-A-FRM-BOLT is required to fasten the V-frame on the roof anchor.

The angled side (hypotenus) has a total length of 1560mm - it comes as standard with two rail mounting holes. The distance between the mounting holes is 1360mm.

The recommended distance between each successive V-frame on a PV array is 1400mm, however, the maximum length must not exceed 1600mm.

Adjustable V-frame properties:

• 13-25 degrees adjustable frame
• M8x16mm bolt
• M8x20x3 washer &
• M8 nyloc nut

The following rails can be used as part of the solution:

• KDS-RAIL-4400
• KDS-RAIL-4720

Guidelines for deploying this solution are availed on the user manual uploaded on the document section below.

Product certification will be uploaded on the Portal as soon as it's supplied by the manufacturer. Please make use of the SegenSolar System Designer to get accurate product quantities for specific roof solutions.

Documents:

• Application Note KD Solar A-frame ballast block mounting
• CE Declaration of Conformity 3 Tier A-FRAME Solution Guide
• Installation Manual Adjustable A-frame IBR roof mounting solution
• User Manual A-frame adjustable ballast flat roof solution
