KD Solar adjustable V-frame brackets for landscape mounting

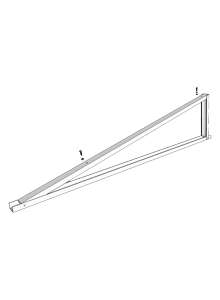

KD Solar adjustable V-frame bracket for landscape mounting. This adjustable bracket is mainly used for flat or low-angled roofs - the user-adjustable angles allow a more efficient PV array in terms of harvesting the sun's energy. In addition, the adjustable V-frame bracket can be used with any flat metal roof anchor (for corrugated, cliplock or IBR roofs) whenever an additional elevated angle is required, in such cases the KDS-A-FRM-BOLT is required to fasten the V-frame on the roof anchor.

The recommended distance between each successive V-frame on a PV array is 1400mm, however, the maximum length must not exceed 1600mm.

Adjustable V-frame properties:

  • 13-25 degrees adjustable frame
  • M12x16mm bolt
  • M8x20x3 washer &
  • M8 nyloc nut

Guidelines for deploying this solution are availed on the user manual uploaded on the document section below.

This KD Solar A-Frame is for panels with a width of 1134mm.

Product certification and data sheet will be uploaded on the Portal as soon as it's supplied by the manufacturer. Please make use of the SegenSolar System Designer to get accurate product quantities for specific roof solutions.

Documents:

  • CE Declaration of Conformity 3 Tier A-FRAME Solution Guide
  • Data Sheet LS A-FRAME
  • Installation Manual Ballast A Frame mounting
  • Installation Manual Corrugated
  • Installation Manual IBR Landscape
