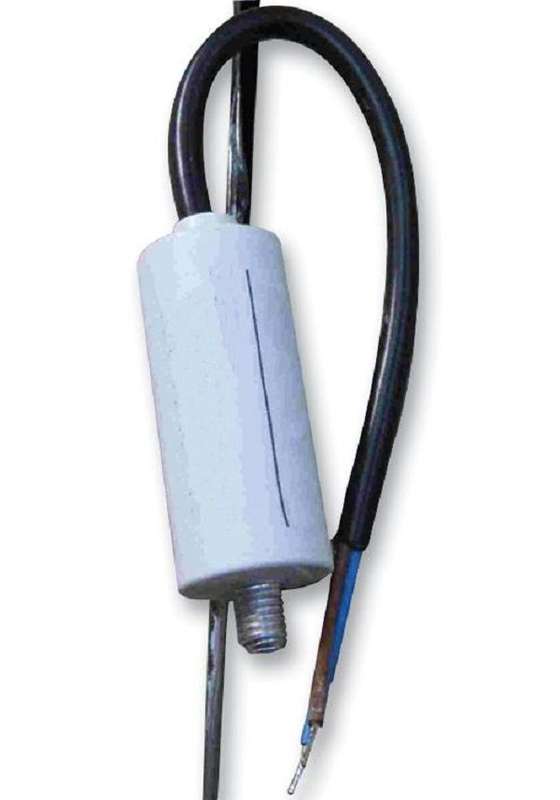

Kemet (C274ACF5350WA0J) Motor Run Capacitor, 35µF, ± 5%, 470V

Product InformationDielectric Type: Metallized PPCapacitor Case / Package: CanCapacitance: 35µFCapacitance Tolerance: ± 5%Capacitor Mounting: Stud Mount - M8Typical Applications: Motor Rundv/dt Rating: 20V/µsVoltage(AC): 470VVoltage Rating VAC: 470VCapacitor Terminals: Wire LeadedVoltage(DC): -Voltage Rating V DC: -Lead Spacing: -Height: 93mmHumidity Rating: -Diameter: 50mmStud Size - Metric: -Product Range: C27Peak Current: -Operating Temperature Min: -25°CProduct Height: 93mmOperating Temperature Max: 85°CRMS Current (Irms): -Product Diameter: 50mmSeries Name: C27ESR: -Product Length: -Product Width: -Ripple Current: -Automotive Qualification Standard: -Product OverviewThe KEMET C27.4 series are plastic can packaged film capacitors for AC motorapplications. These capacitors are used in series with the start winding of thesingle phase electric motor, allowing its starting and increasing the torqueduring operation. Main application fields include air fans, pumps, circulatorsand low power electric motors. The choice of the capacitor depends on expectedlife length and the mechanical connection of the user.Capacitance value ranges from 1µF to 60µFPolypropylene is used as a dielectricOperating temperature range -25 to +85°CRated voltage of 470VAC±5% standard toleranceSafety Class P0, UL94-V0 diskClass A: 30,000 hrs @ 420VacClass B: 10,000 hrs @ 470Vac
