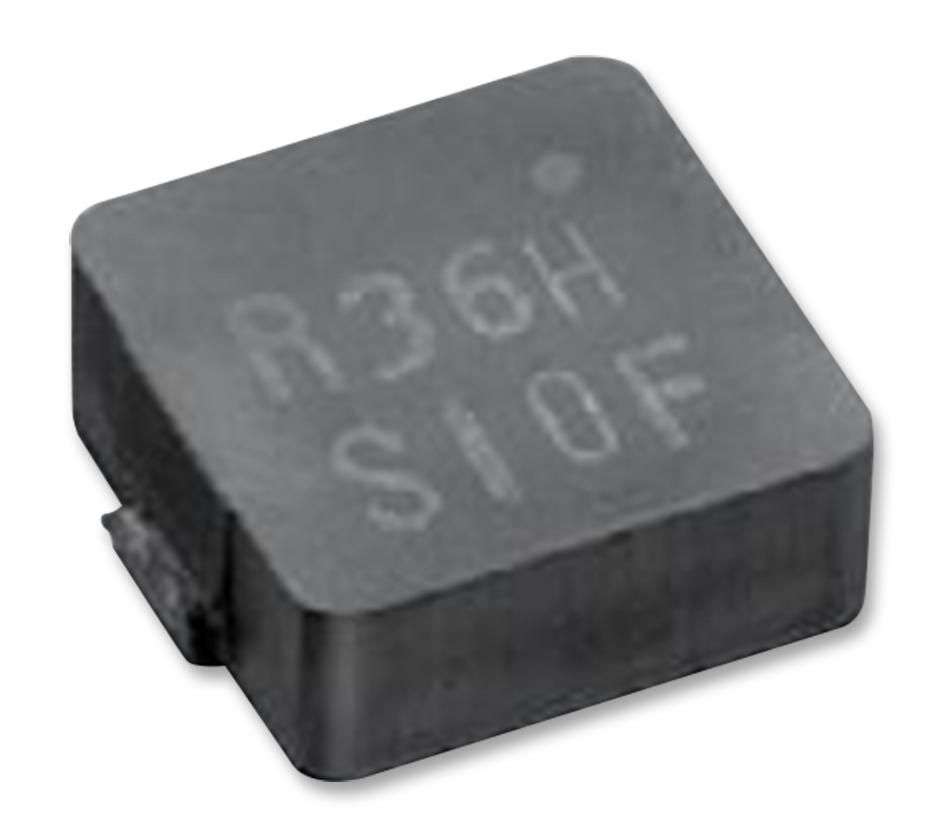

Kemet (MPCH0730LR24) Power Inductor (SMD), 240 nH, 23 A, Shielded

Power Inductor (SMD), 240 nH, 23 A, Shielded, 19 A, MPCH, 8mm x 6.7mm x 3mmProduct InformationInductance: 240nHRMS Current (Irms): 23AInductor Construction: ShieldedSaturation Current (Isat): 19AProduct Range: MPCHPower Inductor Case: 8mm x 6.7mm x 3mmDC Resistance Max: 240µohmInductance Tolerance: ± 20%Product OverviewThe MPCH series Metal Composite Inductor designed for use in power supplies withripple currents up to 32 A. The large-current power inductors offer superiorpermeability when compared to technologies based on ferrite cores. The flat wiredesign allows for high efficiency under high-current loads. It is suitable forswitching DC-DC power supplies, notebook computers, tablets, embedded computersystems, server and storage and HDTVs.Improved power supply efficiency with composite metal coreMetal cores reduce core losses and improve power supply efficiency at lightloadsUsed as part of a filter or for energy storageHigh permeability for higher inductance with lower DC resistanceLow losses at higher switching frequenciesMoulded metal structure reduces acoustic noiseHigher current power and saturation in smaller packagesOperating temperature up to +125°CLow acoustic noise
