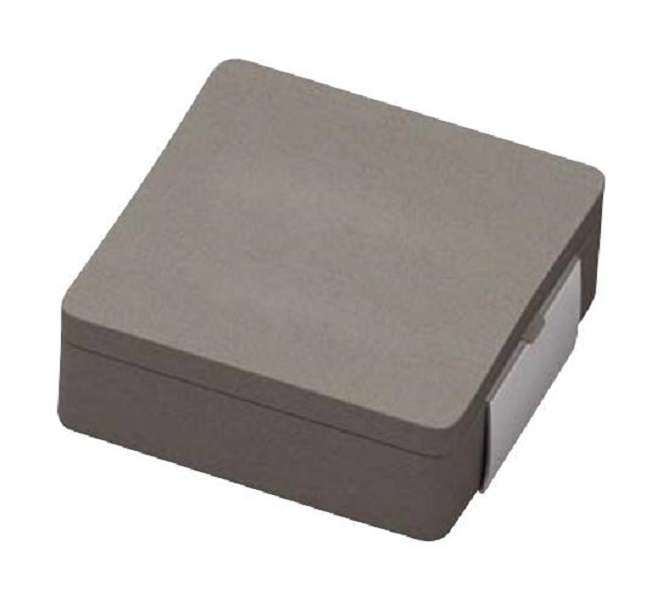

Kemet (MPX1D0618LR68) Power Inductor (SMD), 680 nH, 8.8 A, Shielded

Power Inductor (SMD), 680 nH, 8.8 A, Shielded, 13 A, MPX, 7mm x 6.5mm x 1.8mmProduct InformationInductance: 680nHRMS Current (Irms): 8.8AInductor Construction: ShieldedSaturation Current (Isat): 13AProduct Range: MPXPower Inductor Case: 7mm x 6.5mm x 1.8mmDC Resistance Max: 0.0127ohmInductance Tolerance: ± 20%Product OverviewMPX series metal composite inductors are ideal for use in DC to DC switchingpower supplies, as power inductors as well as EMI filter inductors. The metalcomposite core has high saturation capabilities maintaining function with highcurrent transients and is characterized by temperature stable inductance.Suitable for use in consumer and commercial power applications such as Highfrequency DC-DC converters, including WBG GaN applications, PCs and servers,Points of loads (POL), Field-programmable gate arrays (FPGA) and Battery poweredregulators.Metal composite powderShielded construction, SMD configurationOperating temperature up to +155°CLow acoustic noiseLow magnetic flux leakage
