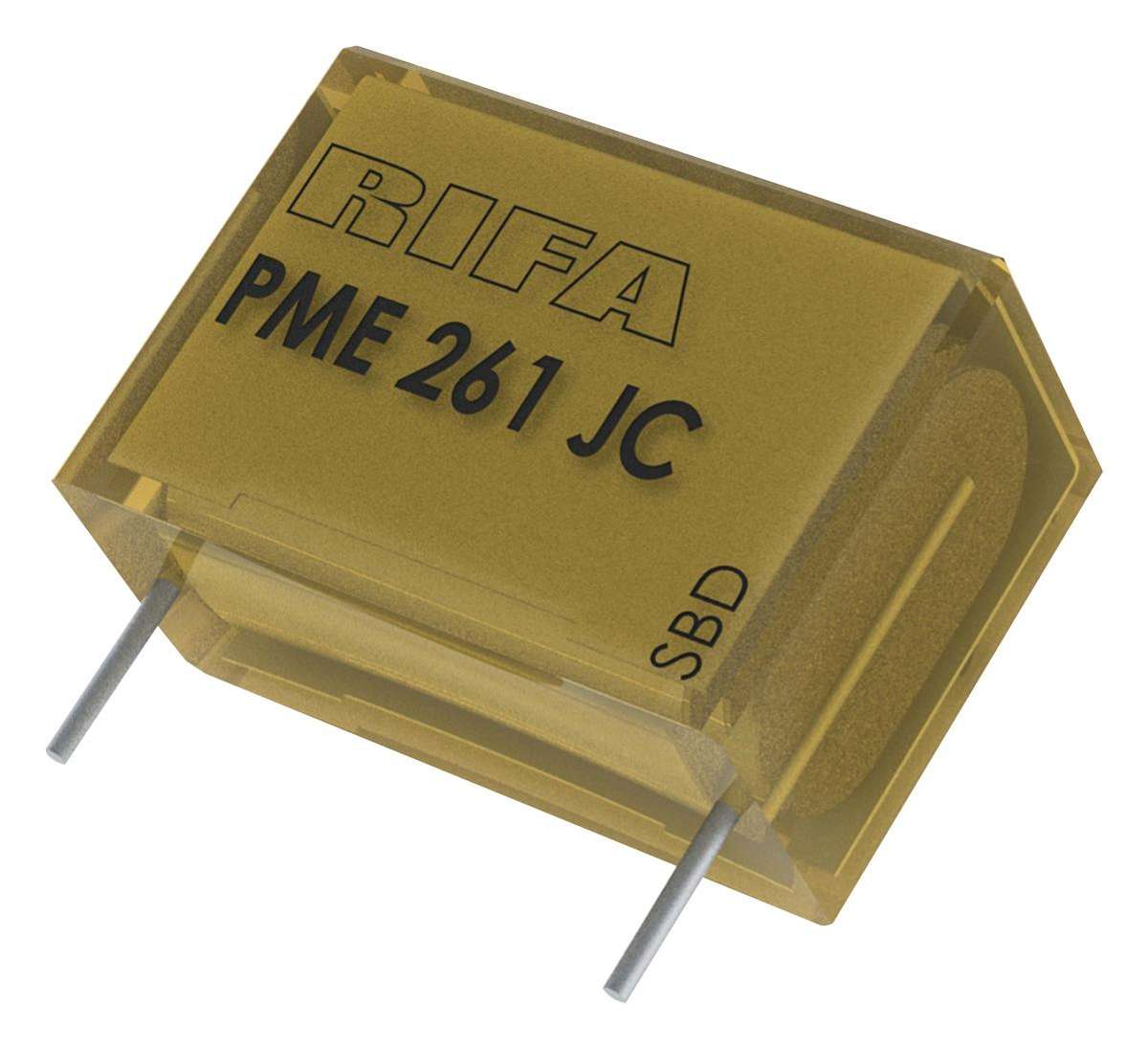

Kemet (PME261JC6100KR30) General Purpose Film Capacitor, Metallized Paper

General Purpose Film Capacitor, Metallized Paper, Radial Box - 2 Pin, 0.1 µF, ±10%, 500 V, 1 kVProduct InformationDielectric Type: Metallized PaperCapacitor Case / Package: Radial Box - 2 PinCapacitance: 0.1µFCapacitance Tolerance: ± 10%Voltage(AC): 500VVoltage(DC): 1kVCapacitor Mounting: Through HoleCapacitor Terminals: Radial LeadedHumidity Rating: GRADE II (Test Condition A)Lead Spacing: 20.3mmProduct Length: 24mmProduct Width: 11.3mmProduct Height: 16.5mmProduct Range: PME261/P561 SeriesOperating Temperature Min: -40°COperating Temperature Max: 100°CQualification: -Product OverviewThe PME261 Series is constructed of multilayer metallized paper, encapsulatedand impregnated in self-extinguishing material meeting the requirements of UL 94V-0. For general use in DC and low frequency pulse applications.Voltage range: 400 - 1,000 VDC; 220 - 500 VACCapacitance range: 0.001 - 1 µFClimatic category: 40/70/56, IEC 60068-1Operating temperature range of -40?C to +70?C in AC applications
