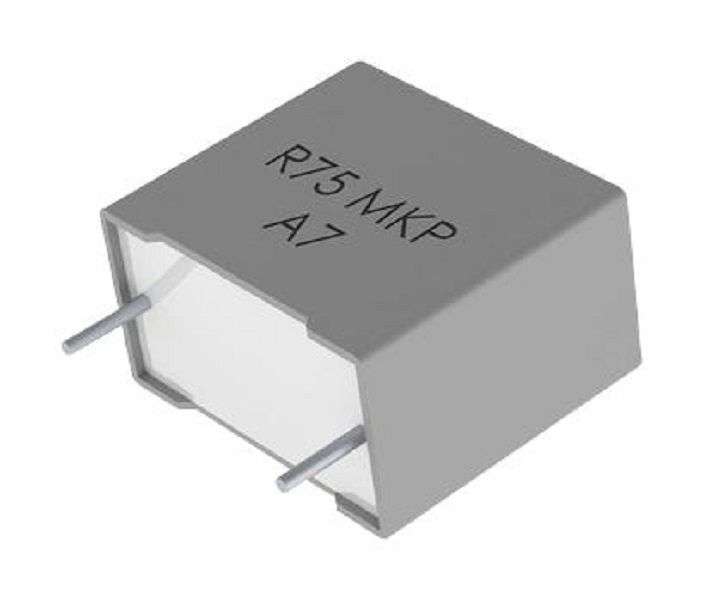

Kemet (R75IR51004040J) Power Film Capacitor, Pulse, Metallized PP

Power Film Capacitor, Pulse, Metallized PP, Radial Box - 2 Pin, 10 µF, ± 5%,High FrequencyProduct InformationDielectric Type: Metallized PPCapacitor Case / Package: Radial Box - 2 PinCapacitance: 10µFCapacitance Tolerance: ± 5%Typical Applications: High FrequencyCapacitor Mounting: Through HoleVoltage(AC): 160VVoltage(DC): 250VHumidity Rating: GRADE II (Test Condition A)Capacitor Terminals: PC PinLead Spacing: 27.5mmdv/dt Rating: 100V/µsPeak Current: 1kARMS Current (Irms): 14.2AESR: 0.0048ohmProduct Diameter: -Product Length: 32mmProduct Width: 22mmProduct Height: 37mmRipple Current: -Output (kvar): -Product Range: R75 SeriesOperating Temperature Min: -55°COperating Temperature Max: 105°CQualification: -Product OverviewThe R75 Series is constructed of metallized polypropylene film with radial leadsof tinned wire. The radial leads are electrically welded to the metal layer onthe ends of the capacitor winding. The capacitor is encapsulated in aself-extinguishing solvent resistant plastic case with thermosetting resinmaterial meeting the UL 94V-0 requirements. Two different winding constructionsare used depending on voltage parameters and lead spacing. Automotive gradedevices are available (up to lead spacing 22.5 mm) and meet the demandingAutomotive Electronics Council's AEC-Q200 qualification requirements. Typicalapplications include deflection circuits in televisions (S-correction), resonantcapacitor in electronic ballast and compact lamp, power factor correction andcoupling capacitor in switched mode power supply (SMPS), timing and oscillatorcircuits. Not suitable for across-the-line application (see SuppressorCapacitors).Voltage range: 160 - 2,000 VDCCapacitance range: 220 pF - 33 µF / Capacitance tolerance: ±5%, ±10%, ±20%Lead Spacing: 7.5 - 37.5 mmClimatic category: 55/105/56 IEC 60068-1 / Operating temperature range of -55°Cto +105°CTape and reel packaging in accordance with IEC 60286-2RoHS compliance and lead-free terminationsSelf-healingAutomotive (AEC-Q200) grades available up to lead spacing 22.5mm
