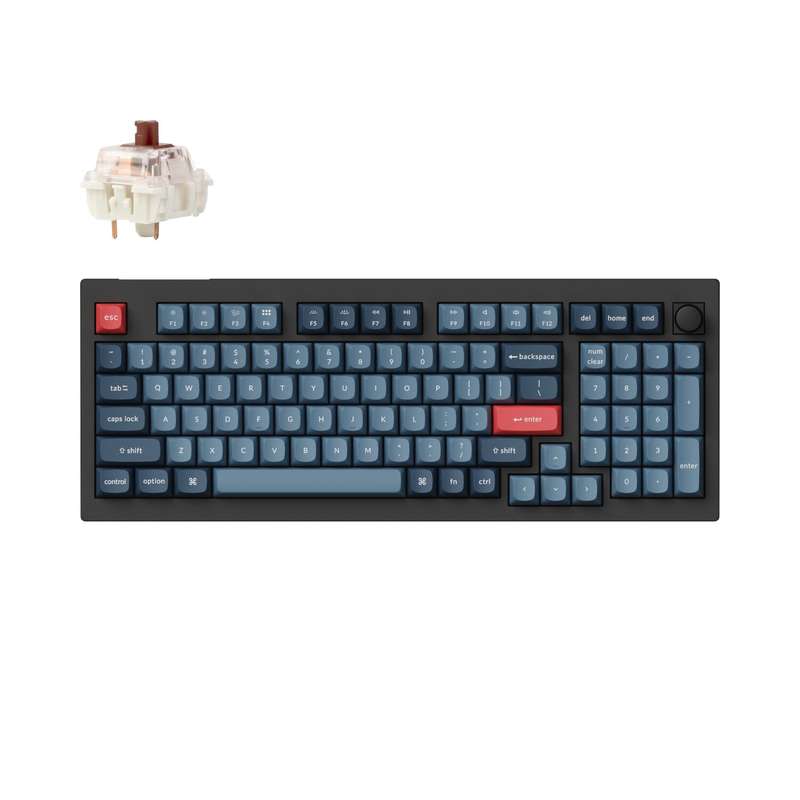

The Keychron V5 Max Wireless Custom Keyboard - BROWN Switch offers an 1800 compact layout, providing a full set of keys, including a numpad, in a space-efficient design. It features both 2.4 GHz wireless connectivity with a 1000 Hz polling rate and Bluetooth 5.1, allowing seamless multitasking across multiple devices. The gasket mount design, combined with sound-absorbing foam, ensures a comfortable and quiet typing experience.
Double-shot PBT keycaps provide durability and a premium feel. With QMK/VIA support, users can fully customize key functions and macros to suit their preferences. Hot-swappable sockets enable easy switch customization without soldering, and south-facing RGB LEDs offer vibrant backlighting. The V5 Max is compatible with both Mac and Windows systems, featuring a system toggle and additional keycaps for each. Exclusive Gateron Jupiter mechanical switches in the fully assembled version offer a lifespan of up to 80 million keystrokes, ensuring long-lasting performance.
FEATURES:
Customisable keyboard
2.4GHz & Bluetooth connection
ARM architecture MCU with 256K flash.
OSA profile double-shot PBT keycaps
Gasket mount design with PC plate
Hot-swappable
South-facing RGB LED lights
Gateron Jupiter switch (BROWN)
Screw-in PCB stabilisers
SPECIFICATIONS:
Colour: Black
Material: ABS Plastic
Plate Material: PC
Mount Style: Gasket Mount Design
Battery: 4000mAh rechargeable li-polymer battery
Charging Time: ± 5 hours
Bluetooth Version: 5.1
Compatible System: Windows/macOS/Linux
N-Key Rollover (NKRO): Yes for both wireless and wired modes
Hot-swappable: Yes.
MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Switches: Gateron Jupiter (Fully Assembled Version)
Backlight: South-facing RGB LED
Stabiliser: Screw-in PCB stabs
Charging Port: USB Type-C
Cable: Type-C cable + Type-A to Type-C adapter
Operating Environment: -10 to 50
Gateron Jupiter BROWN Switch:
Operating force: 45 ± 15 gf
Pre-travel:2 ± 0.6 mm
Travel distance: 4mm max.
Behaviour: Linear
Pre-lubed: Yes
Sound level: Quiet
Suitable for: Office/Gaming
WHAT'S IN THE BOX:
Keychron V5 Max Wireless Custom Keyboard - BROWN Switch x1
Type-C to Type-C Cable x1
Type-A to Type-C Cable x1
Extension Adapter for Receiver x1
Type-A 2.4GHz Receiver x1
Type-C 2.4GHz Receiver x1
Keycap & Switch Puller x1
Screwdriver x1
Hex Key x1
